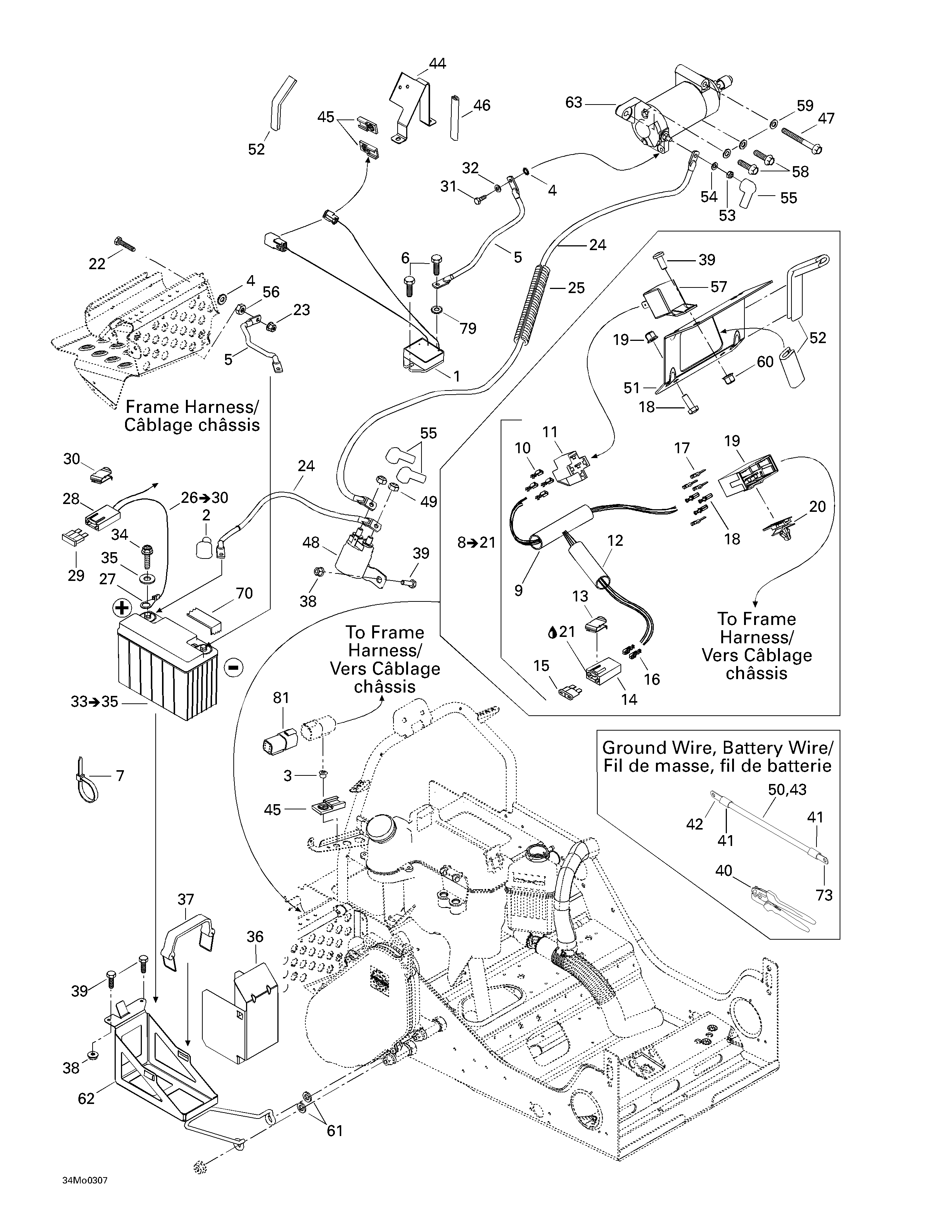

10- Battery And Starter для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1515175968 Voltage RegulatorVoltage Regulator
-
2570151000 Protection CapProtection Cap
-
3390906400 Pop-Rivets 3/16''Pop-Rivets 3/16''
-
4250200000 Serrated Lock WasherSerrated Lock Washer
-
6290841543 Taptite ScrewTaptite Screw
-
7293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
414115200 Tie Rap 180 mmTie Rap 180 mm
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
515175220 Tie RapTie Rap
-
8515175721 Configuration Harness Assy. Includes 8 - 21.Configuration Harness Assy. Includes 8 - 21.
-
9409901800 Tubing 13 mmTubing 13 mm
-
10561503100 Female TerminalFemale Terminal
-
11409209900 Female Housing (5 circuits)Female Housing (5 circuits)
-
12515175442 Tubing 6 mmTubing 6 mm
-
13409014200 Backward ClipBackward Clip
-
14409004000 Fuse HolderFuse Holder
-
15278000344 FuseFuse
-
16409011600 Female terminalFemale terminal
-
17515175232 Male TerminalMale Terminal
-
18515175273 Male TerminalMale Terminal
-
19515175720 Male HousingMale Housing
-
20515175283 Housing SupportHousing Support
-
21293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
22207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
23233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
25409901700 TubingTubing
-
26515175489 Battery Fuse Wire. Includes 26 - 30.Battery Fuse Wire. Includes 26 - 30.
-
27278000992 Ring TerminalRing Terminal
-
28409004000 Fuse HolderFuse Holder
-
29410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
30409014200 Backward ClipBackward Clip
-
31207361644 Hex. Screw (Scotch Grip) M6 x 16Hex. Screw (Scotch Grip) M6 x 16
-
32234061410 Flat Washer 6 mmFlat Washer 6 mm
-
33515175642 Battery (18 Amperes). Includes 33 - 35.Battery (18 Amperes). Includes 33 - 35.
-
34207151260 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
35234061410 Flat Washer 6 mmFlat Washer 6 mm
-
36515175643 DeflectorDeflector
-
37515175475 Battery StrapBattery Strap
-
38233251414 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
39207151444 Hex. Screw M5 x 14Hex. Screw M5 x 14
-
40529035730 Crimp PlierCrimp Plier
-
41278001692 Heat ShrinkHeat Shrink
-
42278001682 Flat Terminal (Small Hole)Flat Terminal (Small Hole)
-
278001683 Terminal 45 Deg. (Small Hole)Terminal 45 Deg. (Small Hole)
-
278001684 Terminal 90 Deg. (Small Hole)Terminal 90 Deg. (Small Hole)
-
278001685 Flat Terminal (Big Hole)Flat Terminal (Big Hole)
-
278001686 Terminal 45 Deg. (Big Hole)Terminal 45 Deg. (Big Hole)
-
278001687 Terminal 90 Deg. (Big Hole)Terminal 90 Deg. (Big Hole)
-
278001688 Flat TerminalFlat Terminal
-
43278001690 Red Cable Battery (no. 6) (Meter)Red Cable Battery (no. 6) (Meter)
-
44515175842 Housing SupportHousing Support
-
45270000141 ClipClip
-
46271000110 Trim ProtectorTrim Protector
-
47207587544 Hex. Flanged Screw (Scotch Grip) M8 x 75Hex. Flanged Screw (Scotch Grip) M8 x 75
-
48710000111 Starter RelayStarter Relay
-
49232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
50278001680 Ground Cable Battery (no. 6) (Meter)Ground Cable Battery (no. 6) (Meter)
-
278001681 Ground Cable Battery (no. 4) (Meter)Ground Cable Battery (no. 4) (Meter)
-
51515175907 Fuse HolderFuse Holder
-
52271000110 Trim ProtectorTrim Protector
-
53232561414 Hex. Nut M6Hex. Nut M6
-
54234061410 Flat Washer M6Flat Washer M6
-
55278001771 CapCap
-
56232061414 Hex-Nut M6Hex-Nut M6
-
57410113200 RelayRelay
-
58207583044 Hex Flanged Screw M8 X 30 (Scotch Grip)Hex Flanged Screw M8 X 30 (Scotch Grip)
-
59250200008 Flat Washer 8 mmFlat Washer 8 mm
-
60233251414 Elastic Flanged NutElastic Flanged Nut
-
61503175800 Flat WasherFlat Washer
-
62515175718 Battery Support (SE, SPORT)Battery Support (SE, SPORT)
-
63515175843 StarterStarter
