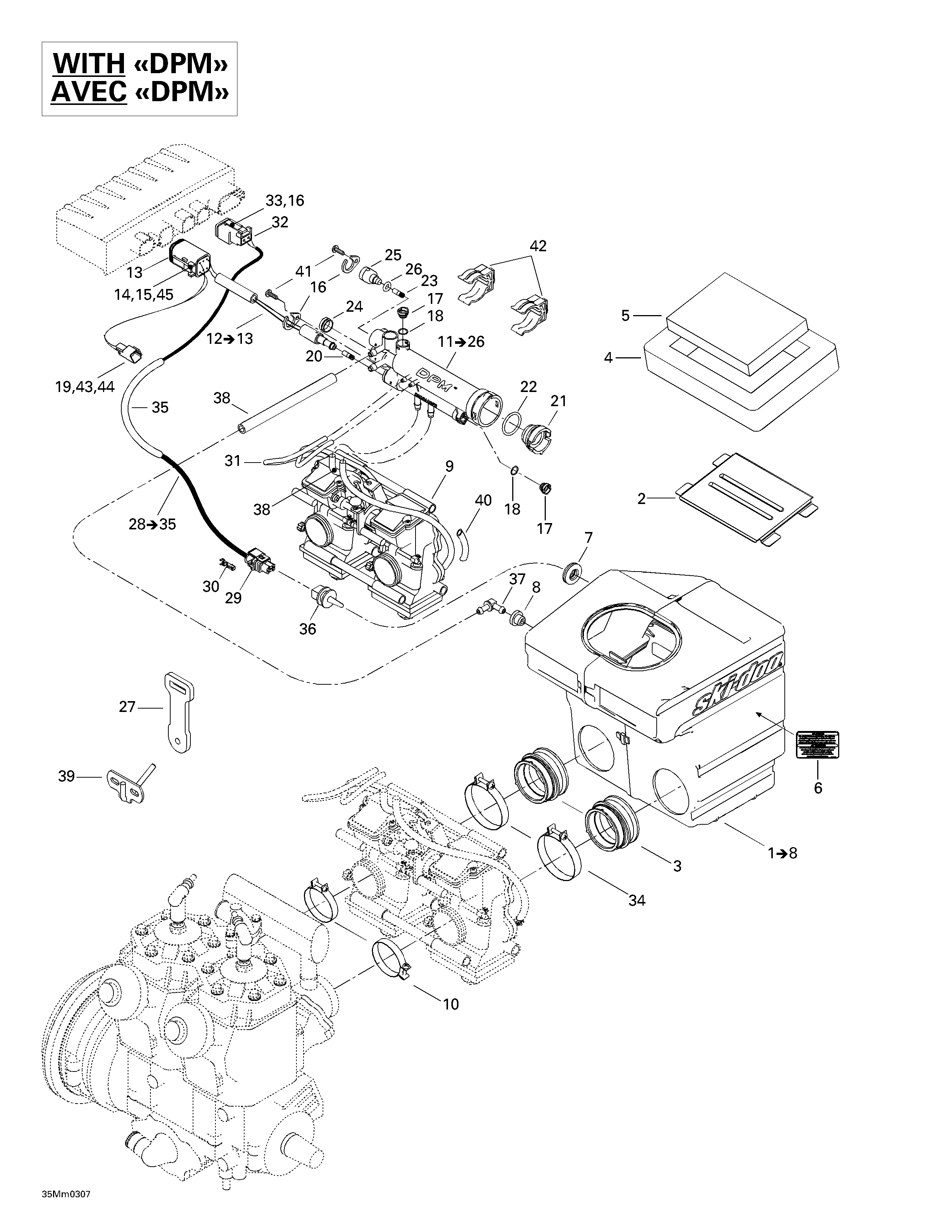

02- Air Intake System 2 для BRP Ski-Doo Legend 500/600/700 - 2003
-
№АртикулНазвание
-
1508000290 Air Intake Ass'y. Includes 1 - 8. Legend 600.Air Intake Ass'y. Includes 1 - 8. Legend 600.
-
508000293 Air Intake Ass'y. Legend 700.Air Intake Ass'y. Legend 700.
-
2508000004 Intake Grill. Legend 600. Legend 700.Intake Grill. Legend 600. Legend 700.
-
3508000092 Air Intake Adaptor (40 mm). Legend 600. Legend 700.Air Intake Adaptor (40 mm). Legend 600. Legend 700.
-
4508000099 Lower Foam. Legend 600. Legend 700.Lower Foam. Legend 600. Legend 700.
-
5508000154 Air Filter. Legend 600. Legend 700.Air Filter. Legend 600. Legend 700.
-
6516001191 Instruction Label. Legend 600. Legend 700.Instruction Label. Legend 600. Legend 700.
-
7570065500 Grommet. Legend 600. Legend 700.Grommet. Legend 600. Legend 700.
-
8513032908 Grommet. Legend 600. Legend 700.Grommet. Legend 600. Legend 700.
-
9403138731 Carburetor Kit TM 40 B-232. Legend 600.Carburetor Kit TM 40 B-232. Legend 600.
-
403138730 Carburetor Kit TM 40 B-241. Legend 700.Carburetor Kit TM 40 B-241. Legend 700.
-
10512059305 Clamp. Legend 600. Legend 700.Clamp. Legend 600. Legend 700.
-
11512059774 Pressure Manifold Ass'y. Includes 11 - 26. Legend 600.Pressure Manifold Ass'y. Includes 11 - 26. Legend 600.
-
512059634 Pressure Manifold Ass'y. Legend 700.Pressure Manifold Ass'y. Legend 700.
-
12515175701 Solenoid Valve. Includes 12 - 13. Legend 600. Legend 700.Solenoid Valve. Includes 12 - 13. Legend 600. Legend 700.
-
13515175673 Female Terminal Housing (6 circuits). Legend 600. Legend 700.Female Terminal Housing (6 circuits). Legend 600. Legend 700.
-
14515175678 Female Lock (6 circuits). Legend 600. Legend 700.Female Lock (6 circuits). Legend 600. Legend 700.
-
15293000052 Plug. Legend 600. Legend 700.Plug. Legend 600. Legend 700.
-
16415061600 Solenoid Lock. Legend 600. Legend 700.Solenoid Lock. Legend 600. Legend 700.
-
17512058921 Cap. Legend 600. Legend 700.Cap. Legend 600. Legend 700.
-
18512058925 O-Ring. Legend 600. Legend 700.O-Ring. Legend 600. Legend 700.
-
19515175665 Male Housing (2 circuits). Legend 600. Legend 700.Male Housing (2 circuits). Legend 600. Legend 700.
-
20404161825 Starter Jet. Legend 600. Legend 700.Starter Jet. Legend 600. Legend 700.
-
21512058949 Cap. Legend 600. Legend 700.Cap. Legend 600. Legend 700.
-
22512058950 O-Ring. Legend 600. Legend 700.O-Ring. Legend 600. Legend 700.
-
24512058982 Cap. Legend 600. Legend 700.Cap. Legend 600. Legend 700.
-
25512059557 Cap. Legend 600. Legend 700.Cap. Legend 600. Legend 700.
-
26512059558 O-Ring. Legend 600. Legend 700.O-Ring. Legend 600. Legend 700.
-
27512059372 Carburetor Latch. Legend 600. Legend 700.Carburetor Latch. Legend 600. Legend 700.
-
28515175703 Temperature Harness. Includes 28 - 35. Legend 600. Legend 700.Temperature Harness. Includes 28 - 35. Legend 600. Legend 700.
-
29515175588 Female Terminal Housing (2 circuits). Legend 600. Legend 700.Female Terminal Housing (2 circuits). Legend 600. Legend 700.
-
30278000998 Female Terminal. Legend 600. Legend 700.Female Terminal. Legend 600. Legend 700.
-
31512059523 Hose. Legend 600. Legend 700.Hose. Legend 600. Legend 700.
-
32515175670 Female Terminal Housing (2 circuits). Legend 600. Legend 700.Female Terminal Housing (2 circuits). Legend 600. Legend 700.
-
33515175706 Female Lock (2 circuits). Legend 600. Legend 700.Female Lock (2 circuits). Legend 600. Legend 700.
-
34508000162 Clamp. Legend 600. Legend 700.Clamp. Legend 600. Legend 700.
-
35515175332 Tubing. Legend 600. Legend 700.Tubing. Legend 600. Legend 700.
-
36270600000 Air Sensor. Legend 600. Legend 700.Air Sensor. Legend 600. Legend 700.
-
37414580600 Elbow Male Connector. Legend 600. Legend 700.Elbow Male Connector. Legend 600. Legend 700.
-
38415080200 Hose. Legend 600. Legend 700.Hose. Legend 600. Legend 700.
-
39512059504 Carburetor Bracket. Legend 600. Legend 700.Carburetor Bracket. Legend 600. Legend 700.
-
40409901700 Tubing. Legend 600. Legend 700.Tubing. Legend 600. Legend 700.
-
41241140060 Screw K40 x 10. Legend 600. Legend 700.Screw K40 x 10. Legend 600. Legend 700.
-
42512058919 Support. Legend 600. Legend 700.Support. Legend 600. Legend 700.
-
43278000631 Male Terminal. Legend 600. Legend 700.Male Terminal. Legend 600. Legend 700.
-
44409207500 Male Lock (2 circuits). Legend 600. Legend 700.Male Lock (2 circuits). Legend 600. Legend 700.
-
45278000632 Female Terminal 1062-16-0622. Legend 600. Legend 700.Female Terminal 1062-16-0622. Legend 600. Legend 700.
