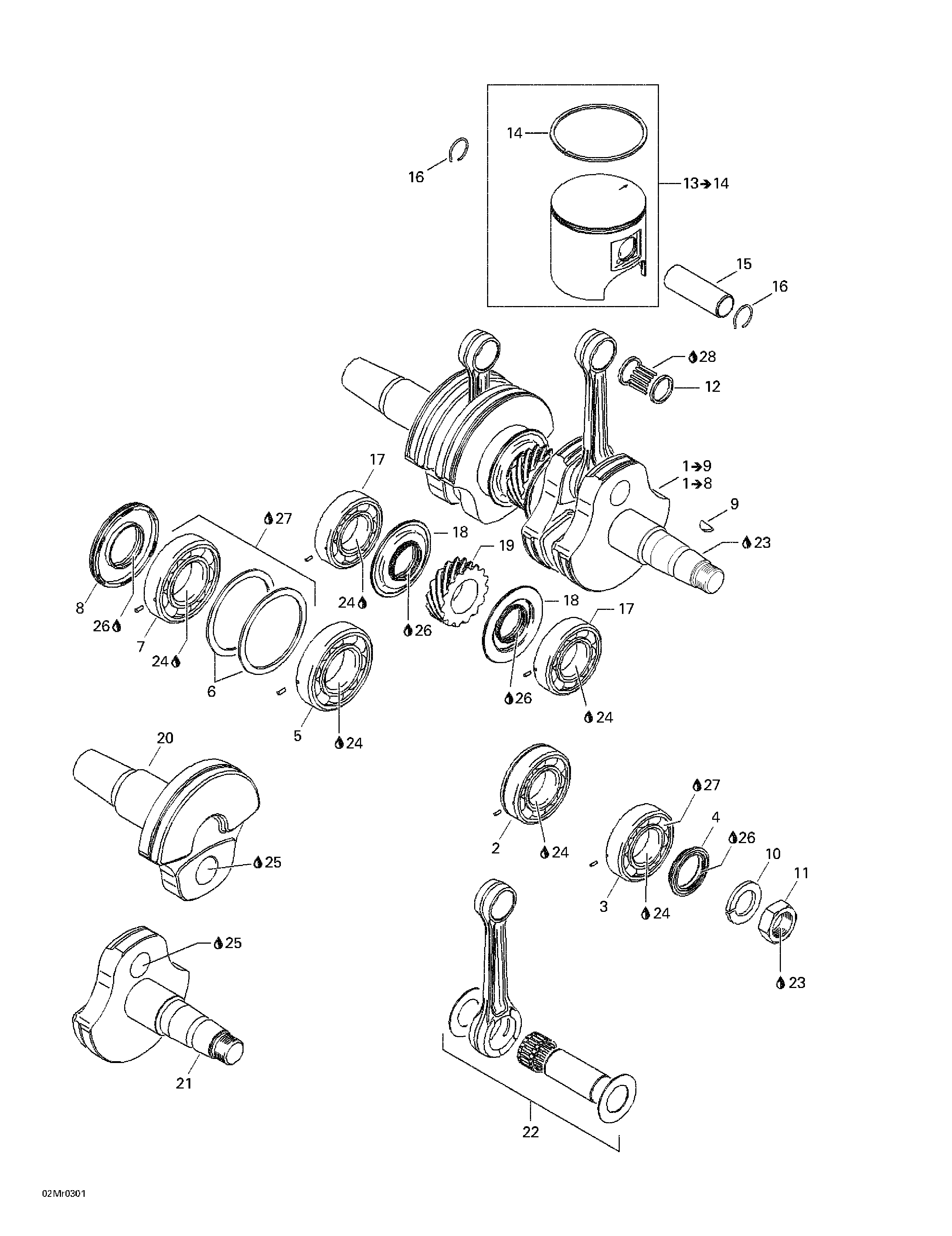

01- Crankshaft And Pistons для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1420889090 Crankshaft ass'y. Includes 1 - 9. MX Z 600 H.O..Crankshaft ass'y. Includes 1 - 9. MX Z 600 H.O..
-
1420889101 Crankshaft ass'y. Includes 1 - 8. MX Z 800.Crankshaft ass'y. Includes 1 - 8. MX Z 800.
-
2420832635 Ball bearing 6207Ball bearing 6207
-
3420832575 Ball bearing 6207Ball bearing 6207
-
4420931792 Oil sealOil seal
-
5420832606 Ball bearingBall bearing
-
6420926190 WasherWasher
-
7420832600 Ball bearing. MX Z 600 H.O..Ball bearing. MX Z 600 H.O..
-
420832601 Ball bearing. MX Z 800.Ball bearing. MX Z 800.
-
8420931285 Oil sealOil seal
-
9420246015 Woodruff keyWoodruff key
-
10420945759 Lock washer 22 mmLock washer 22 mm
-
11420842230 Hex. nut M22. MX Z 600 H.O..Hex. nut M22. MX Z 600 H.O..
-
420842234 Hex. nut M22. MX Z 800.Hex. nut M22. MX Z 800.
-
12420832425 Needle bearingNeedle bearing
-
13420889181 Piston ass'y (71.89 mm). Includes 13 - 14. MX Z 600 H.O..Piston ass'y (71.89 mm). Includes 13 - 14. MX Z 600 H.O..
-
13420889481 Piston ass'y (81.87 mm). Includes 13 - 14. MX Z 800.Piston ass'y (81.87 mm). Includes 13 - 14. MX Z 800.
-
14420815290 Semi-Trapez Ring. MX Z 600 H.O..Semi-Trapez Ring. MX Z 600 H.O..
-
420815218 Semi-trapez ring. MX Z 800.Semi-trapez ring. MX Z 800.
-
15420916410 Gudgeon pin. MX Z 600 H.O..Gudgeon pin. MX Z 600 H.O..
-
420916370 Gudgeon pin. MX Z 800.Gudgeon pin. MX Z 800.
-
16420845106 Piston circlipPiston circlip
-
17420832575 Ball bearing 6207Ball bearing 6207
-
18420931455 Oil sealOil seal
-
19420834355 Central gear (15 teeth)Central gear (15 teeth)
-
20420818708 Crankshaft (PTO). MX Z 600 H.O..Crankshaft (PTO). MX Z 600 H.O..
-
420819032 Crankshaft (PTO). MX Z 800.Crankshaft (PTO). MX Z 800.
-
21420818739 Crankshaft (MAG). MX Z 600 H.O..Crankshaft (MAG). MX Z 600 H.O..
-
420819061 Crankshaft (MAG). MX Z 800.Crankshaft (MAG). MX Z 800.
-
22420889093 Rod repair kit (MAG). MX Z 600 H.O..Rod repair kit (MAG). MX Z 600 H.O..
-
420889108 Rod repair kit (MAG). MX Z 800.Rod repair kit (MAG). MX Z 800.
-
420889094 Rod repair kit (PTO). MX Z 600 H.O..Rod repair kit (PTO). MX Z 600 H.O..
-
420889109 Rod repair kit (PTO). MX Z 800.Rod repair kit (PTO). MX Z 800.
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26420899271 Petamo grease, GHY 133N, 400 gPetamo grease, GHY 133N, 400 g
-
27293550021 Isoflex grease, 50 gIsoflex grease, 50 g
-
28413802900 Injection oil (12 x 1 Liter)Injection oil (12 x 1 Liter)
