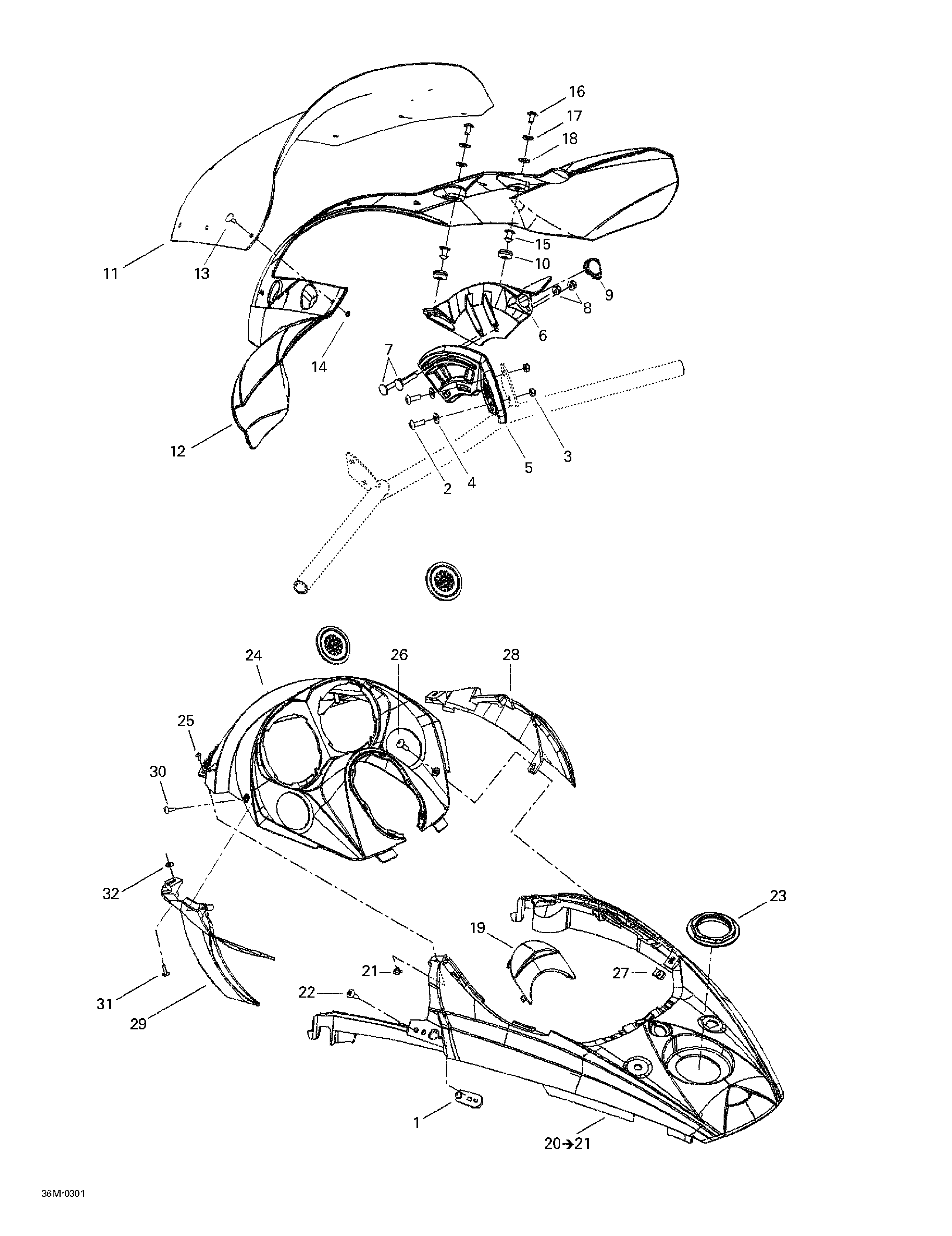

09- Windshield And Console для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1517302616 Hood latchHood latch
-
2250000123 Phillips screw M6 x 16Phillips screw M6 x 16
-
3250000135 Hex. nut M6Hex. nut M6
-
4517302736 Nylon washerNylon washer
-
5517302704 R.H. plate bracketR.H. plate bracket
-
517302705 L.H. plate bracketL.H. plate bracket
-
6517302791 R.H. Windshield SupportR.H. Windshield Support
-
517302792 L.H. Windshield SupportL.H. Windshield Support
-
7207763584 Carriage bolt M6 x 35Carriage bolt M6 x 35
-
8233261494 Elastic flanged nut M6Elastic flanged nut M6
-
9517302806 CapCap
-
10517302841 GrommetGrommet
-
11517302443 Windshield (medium) (SPORT)Windshield (medium) (SPORT)
-
517302793 Windshield (bas) (X)Windshield (bas) (X)
-
517302969 Windshield (medium) (JAMES EDITION). MX Z 600 H.O..Windshield (medium) (JAMES EDITION). MX Z 600 H.O..
-
12517302816 Air deflector (SPORT)Air deflector (SPORT)
-
517302768 Air deflector (X)Air deflector (X)
-
517302816 Air deflector (JAMES EDITION). MX Z 600 H.O..Air deflector (JAMES EDITION). MX Z 600 H.O..
-
13517302842 DartDart
-
14250100034 Push nutPush nut
-
15517302719 KnobKnob
-
16208651481 Phillips screw M5 x 14Phillips screw M5 x 14
-
17250200025 Washer 5 mmWasher 5 mm
-
18250200024 Rubber washer 5 mmRubber washer 5 mm
-
19517302592 Console capConsole cap
-
20517302795 Center console (BLACK (B-160)). Includes 20 - 21.Center console (BLACK (B-160)). Includes 20 - 21.
-
20517302797 Center console (ORANGE (B-228)). Includes 20 - 21.Center console (ORANGE (B-228)). Includes 20 - 21.
-
20517302972 Center console (SILVER (B-243)). Includes 20 - 21.Center console (SILVER (B-243)). Includes 20 - 21.
-
21250100030 T'' flanged nut M4```T'' flanged nut M4```
-
22250000122 Phillips screw M6 x 20Phillips screw M6 x 20
-
23517302575 Console NutConsole Nut
-
24517302796 Support (SPORT, X)Support (SPORT, X)
-
517302973 Support (JAMES EDITION). MX Z 600 H.O..Support (JAMES EDITION). MX Z 600 H.O..
-
25250000121 Phillips screw M4 x 8Phillips screw M4 x 8
-
26250000124 Phillips screw M5 x 20Phillips screw M5 x 20
-
27250000079 Nut M5Nut M5
-
28517302546 R.H. air deflector (SPORT)R.H. air deflector (SPORT)
-
517302798 R.H. air deflector (X)R.H. air deflector (X)
-
517302546 R.H. air deflector (JAMES EDITION). MX Z 600 H.O..R.H. air deflector (JAMES EDITION). MX Z 600 H.O..
-
29517302547 L.H. air deflector (SPORT)L.H. air deflector (SPORT)
-
517302799 L.H. air deflector (X)L.H. air deflector (X)
-
517302547 L.H. air deflector (JAMES EDITION). MX Z 600 H.O..L.H. air deflector (JAMES EDITION). MX Z 600 H.O..
-
30250000084 Phillips screw K40 x 16Phillips screw K40 x 16
-
31250000113 Screw M4 x 16Screw M4 x 16
-
32234042600 Flat Washer M4Flat Washer M4
