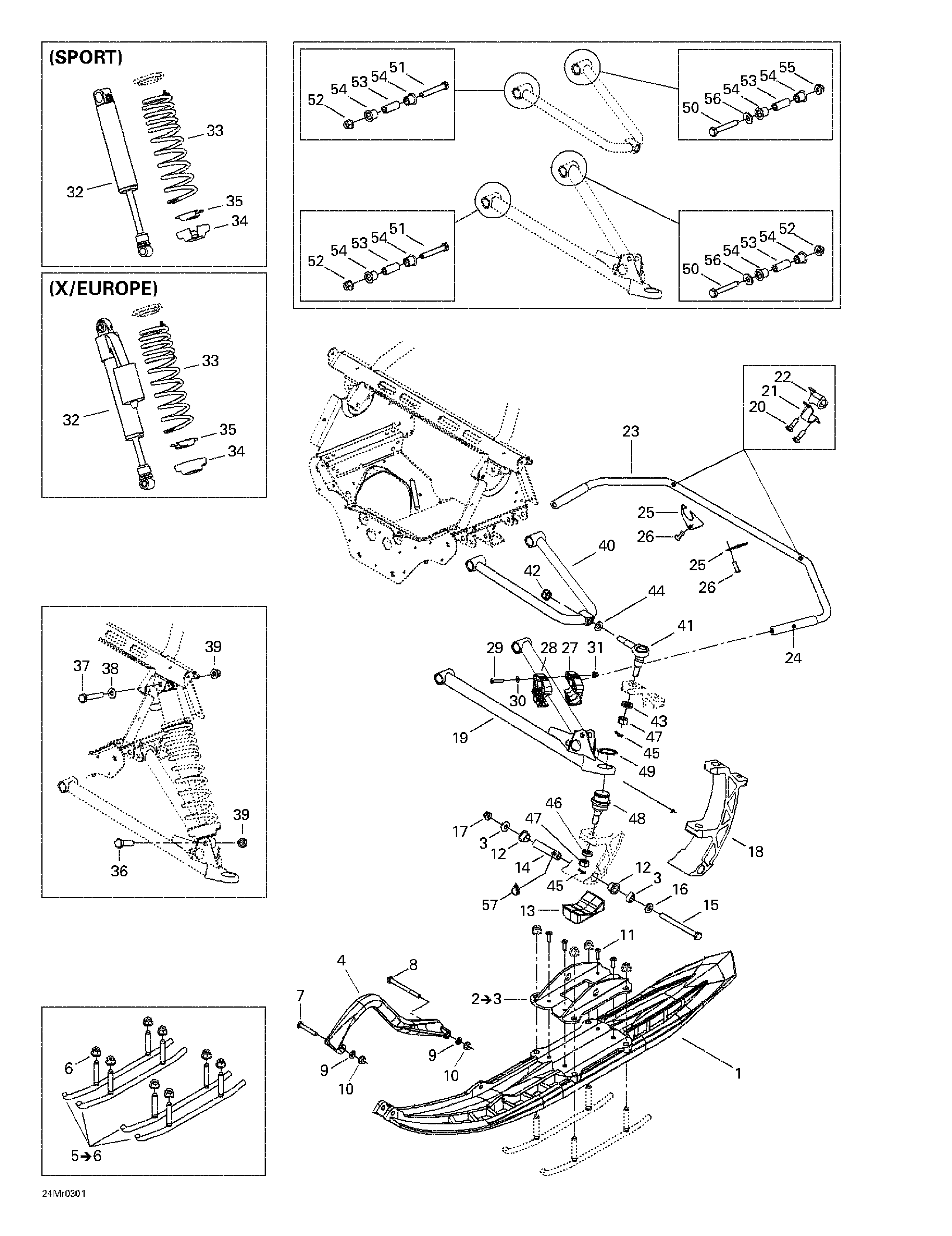

07- Front Suspension And Ski для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1505070727 Precision skiPrecision ski
-
2505070764 Bridge ass'y (SPORT). Includes 2 - 3.Bridge ass'y (SPORT). Includes 2 - 3.
-
2505071207 Bridge ass'y (X). Includes 2 - 3.Bridge ass'y (X). Includes 2 - 3.
-
3505070001 BushingBushing
-
4505070963 HandleHandle
-
5860504900 Carbide runner kit. Includes 5 - 6.Carbide runner kit. Includes 5 - 6.
-
6233201414 Elastic flanged nut M10Elastic flanged nut M10
-
7207085044 Hex. screw M8 x 50Hex. screw M8 x 50
-
8207089044 Hex. screw M8 x 90Hex. screw M8 x 90
-
9234081410 Flat washer 8 mmFlat washer 8 mm
-
10233281414 Elastic flanged nut M8Elastic flanged nut M8
-
11293150090 Pop rivet 1/4''Pop rivet 1/4''
-
12505070954 CushionCushion
-
13505070671 Ski stopperSki stopper
-
14506133300 SpacerSpacer
-
15250000001 Hex. screw M10 x 110Hex. screw M10 x 110
-
16732900049 WasherWasher
-
17732610084 Flanged nutFlanged nut
-
18505071025 Ski leg (X)Ski leg (X)
-
505071094 Ski leg (SPORT)Ski leg (SPORT)
-
19860509700 R.H. lower arm Ass'Y. Includes 19, 48 and 49R.H. lower arm Ass'Y. Includes 19, 48 and 49
-
505071290 R.H. lower armR.H. lower arm
-
19860509600 L.H. lower arm Ass'Y. Includes 19, 48 and 49L.H. lower arm Ass'Y. Includes 19, 48 and 49
-
505071293 L.H. lower armL.H. lower arm
-
20250000118 Hex. screw with nylon M8 x 20Hex. screw with nylon M8 x 20
-
21506095800 ClampClamp
-
22505070665 L.H. bushing (5/8'')L.H. bushing (5/8'')
-
505070881 R.H. bushing (5/8'')R.H. bushing (5/8'')
-
23505070659 Stabilisator (5/8'')Stabilisator (5/8'')
-
24505070750 Stabilisator boot (5/8'')Stabilisator boot (5/8'')
-
25505070874 PlugPlug
-
26293150103 Pop rivet 3/16''Pop rivet 3/16''
-
27505070667 R.H. half sliderR.H. half slider
-
28505070668 L.H. half sliderL.H. half slider
-
29207152544 Hex. screw M5 x 25Hex. screw M5 x 25
-
30391301700 WasherWasher
-
31233251414 Elastic flanged nut M5Elastic flanged nut M5
-
32505070966 Front shock (SPORT)Front shock (SPORT)
-
505070904 R.H. front shock (X)R.H. front shock (X)
-
505070903 L.H. front shock (X)L.H. front shock (X)
-
505070938 R.H. front shock (EUROPE)R.H. front shock (EUROPE)
-
505070937 L.H. front shock (EUROPE)L.H. front shock (EUROPE)
-
33505071179 Spring (SPORT)Spring (SPORT)
-
505071162 Spring (X)Spring (X)
-
505071162 Spring (EUROPE)Spring (EUROPE)
-
34503140600 Spring stopperSpring stopper
-
35503141600 CapCap
-
36207005544 Hex. screw M10 x 55Hex. screw M10 x 55
-
37207006044 Hex. screw M10 x 60Hex. screw M10 x 60
-
38732900049 WasherWasher
-
39233201414 Elastic flanged Nut M10Elastic flanged Nut M10
-
40505071165 Upper armUpper arm
-
41505071082 Upper ball jointUpper ball joint
-
42250000047 Elastic stop nut M12Elastic stop nut M12
-
43234021410 Flat washer 12 mmFlat washer 12 mm
-
44503189276 WasherWasher
-
45211400017 Cotter pinCotter pin
-
46505071184 WasherWasher
-
47232221414 Hex. castle nut M12Hex. castle nut M12
-
48505071422 Lower ball jointLower ball joint
-
49293370035 Circlip (34 mm)Circlip (34 mm)
-
50250000114 Cone Screw M10 x 75Cone Screw M10 x 75
-
51207007044 Hex. screw M10 x 70Hex. screw M10 x 70
-
52233201414 Elastic flanged Nut M10Elastic flanged Nut M10
-
53505070567 BushingBushing
-
54505070566 BushingBushing
-
55233601416 Elastic locking nut M10Elastic locking nut M10
-
56503189564 WasherWasher
-
57219700417 Synthetic Grease, 400gSynthetic Grease, 400g
