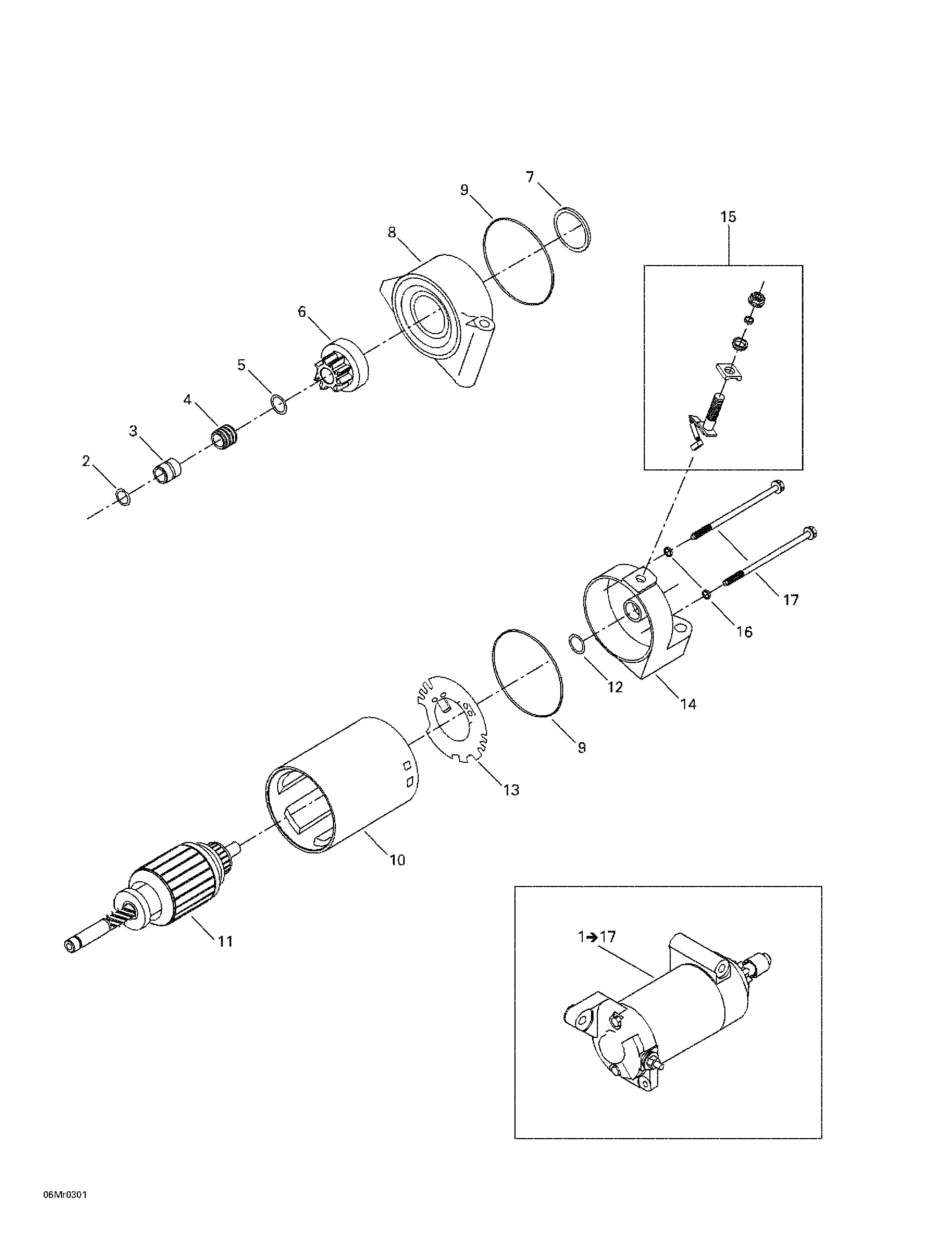

04- Electric Starter для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1515175843 Starter ass'y. Includes 1 - 17.Starter ass'y. Includes 1 - 17.
-
2410207700 Snap ringSnap ring
-
3515175928 Stop nutStop nut
-
4515175927 SpringSpring
-
5278001105 Washer plateWasher plate
-
6515175783 Starter clutchStarter clutch
-
7278000696 O-ringO-ring
-
8515175784 Starter housing ass'yStarter housing ass'y
-
9278000695 O-ringO-ring
-
10410213104 Starter housingStarter housing
-
11515175785 Armature ass'yArmature ass'y
-
12410204500 Flat washerFlat washer
-
13515175786 Brush holderBrush holder
-
14515175787 HousingHousing
-
15410212100 Brush kitBrush kit
-
16278000060 O-ringO-ring
-
17515175788 BoltBolt
