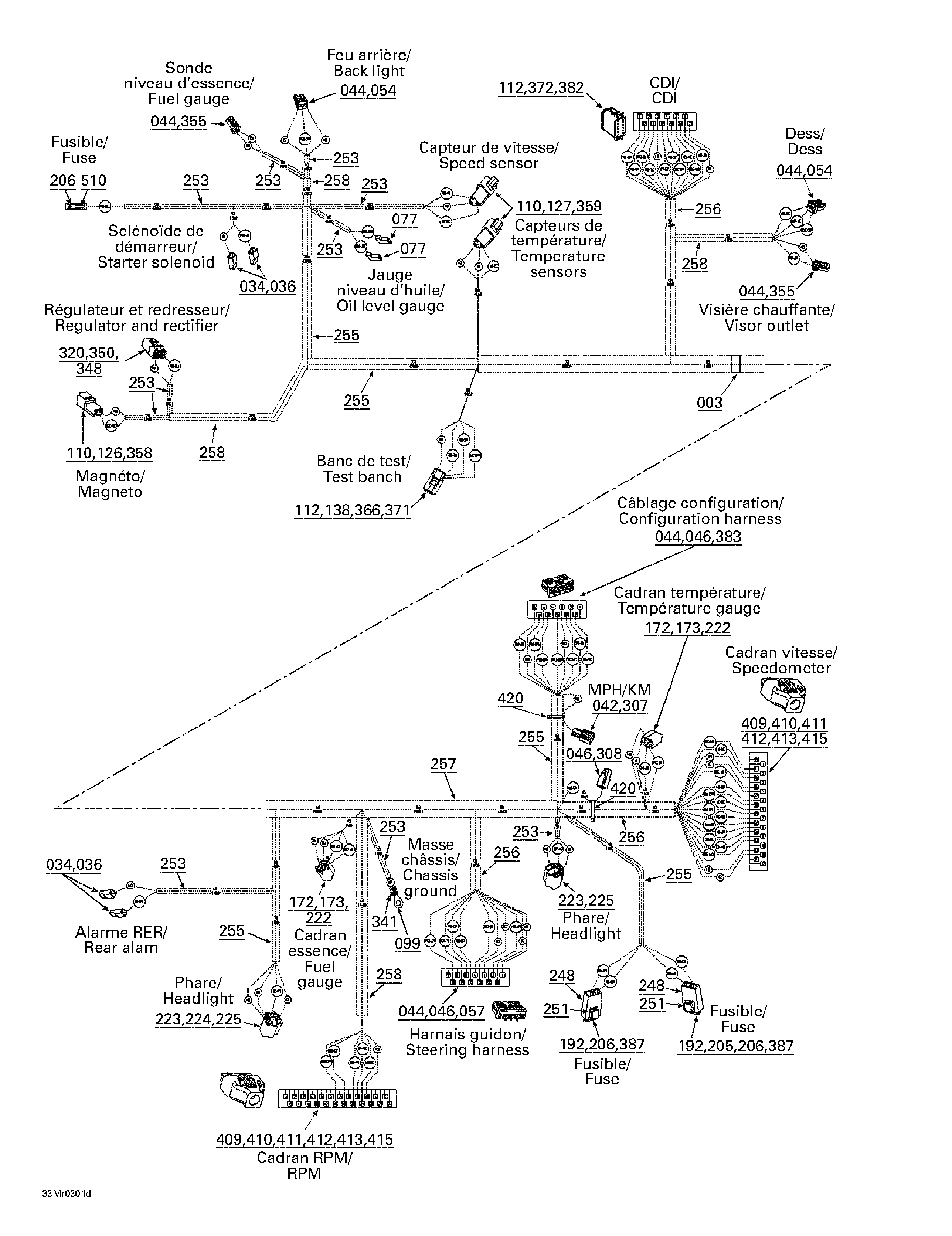

10- Frame Harness для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
3515175879 Frame harness. Includes 3 - 510.Frame harness. Includes 3 - 510.
-
34409010100 Female terminalFemale terminal
-
36409010400 Female terminal housing (1 circuit)Female terminal housing (1 circuit)
-
42515175273 Male terminalMale terminal
-
44515175231 Female terminalFemale terminal
-
46515175282 Female terminalFemale terminal
-
54515175495 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
57515175350 Female terminal housing (13 circuits)Female terminal housing (13 circuits)
-
77409010300 Female terminalFemale terminal
-
99278000992 Ring terminalRing terminal
-
110278000631 Male terminalMale terminal
-
112278000632 Female terminalFemale terminal
-
126409207500 Male lock (2 circuits)Male lock (2 circuits)
-
127409207600 Male lock (3 circuits)Male lock (3 circuits)
-
138293000052 Sealing capSealing cap
-
172561503100 Female terminalFemale terminal
-
173561503100 Female terminalFemale terminal
-
192409003900 Fuse (20 amperes)Fuse (20 amperes)
-
205409011600 Female terminalFemale terminal
-
206409004200 Female terminalFemale terminal
-
222409204300 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
223515175302 Female terminalFemale terminal
-
224515175321 Female terminalFemale terminal
-
225409202700 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
248409004000 Fuse holderFuse holder
-
251409014200 ClipClip
-
253515175442 Tubing (6 mm)Tubing (6 mm)
-
255409901800 Tubing (13 mm)Tubing (13 mm)
-
256415080000 Tubing (16 mm)Tubing (16 mm)
-
257409901600 Tubing (19 mm)Tubing (19 mm)
-
258415079900 Tubing (10 mm)Tubing (10 mm)
-
307515175509 Male terminal housing (1 circuit)Male terminal housing (1 circuit)
-
308515175510 Female terminal housing (1 circuit)Female terminal housing (1 circuit)
-
320515175567 Female terminalFemale terminal
-
348278001672 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
350278001671 Female lock (2 circuits)Female lock (2 circuits)
-
355515175658 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
358515175665 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
359515175666 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
366515175673 Female terminal housing (6 circuits)Female terminal housing (6 circuits)
-
371515175678 Female lock (6 circuits)Female lock (6 circuits)
-
382515175704 Female terminal housing (12 circuits)Female terminal housing (12 circuits)
-
383515175719 Female terminal housing (11 circuits)Female terminal housing (11 circuits)
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
409515175812 PlugPlug
-
410515175801 Female terminal housing (24 circuits)Female terminal housing (24 circuits)
-
411515175802 RetainerRetainer
-
412515175803 Wire sealWire seal
-
413515175804 BlockBlock
-
415515175806 Female terminalFemale terminal
-
420414115200 Tie-rapTie-rap
-
510415079200 HoseHose
