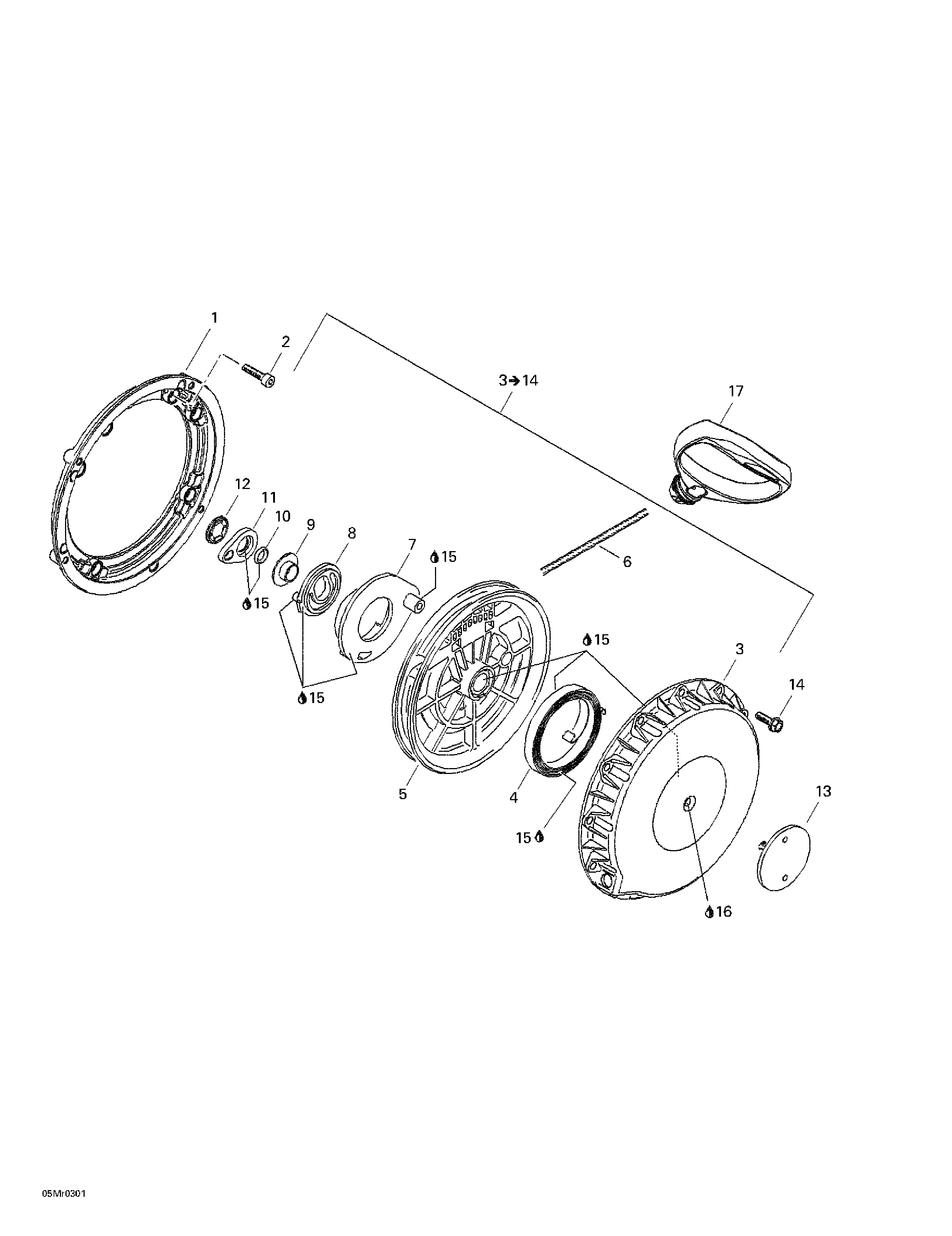

04- Rewind Starter для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1420810865 Connecting flangeConnecting flange
-
2420241236 Socket head screw M6 x 16Socket head screw M6 x 16
-
3420889763 Rewind Starter. Includes 3 - 12.Rewind Starter. Includes 3 - 12.
-
3420811404 Starter housingStarter housing
-
4420939115 Rewind SpringRewind Spring
-
5420852286 Rope sheaveRope sheave
-
6412500200 Starter rope (2200 mm)Starter rope (2200 mm)
-
7420852297 PawlPawl
-
8420852305 Pawl lockPawl lock
-
9420847925 Stage sleeveStage sleeve
-
10420250400 O-ringO-ring
-
11420852520 Lock ringLock ring
-
12420845560 Locking elementLocking element
-
14420941256 Hex collar screw M6 x 20Hex collar screw M6 x 20
-
15420899763 Molykote PG 54, 10 gMolykote PG 54, 10 g
-
16293530011 Sealant, Sikaflex black # 221Sealant, Sikaflex black # 221
-
17572084400 Starter gripStarter grip
