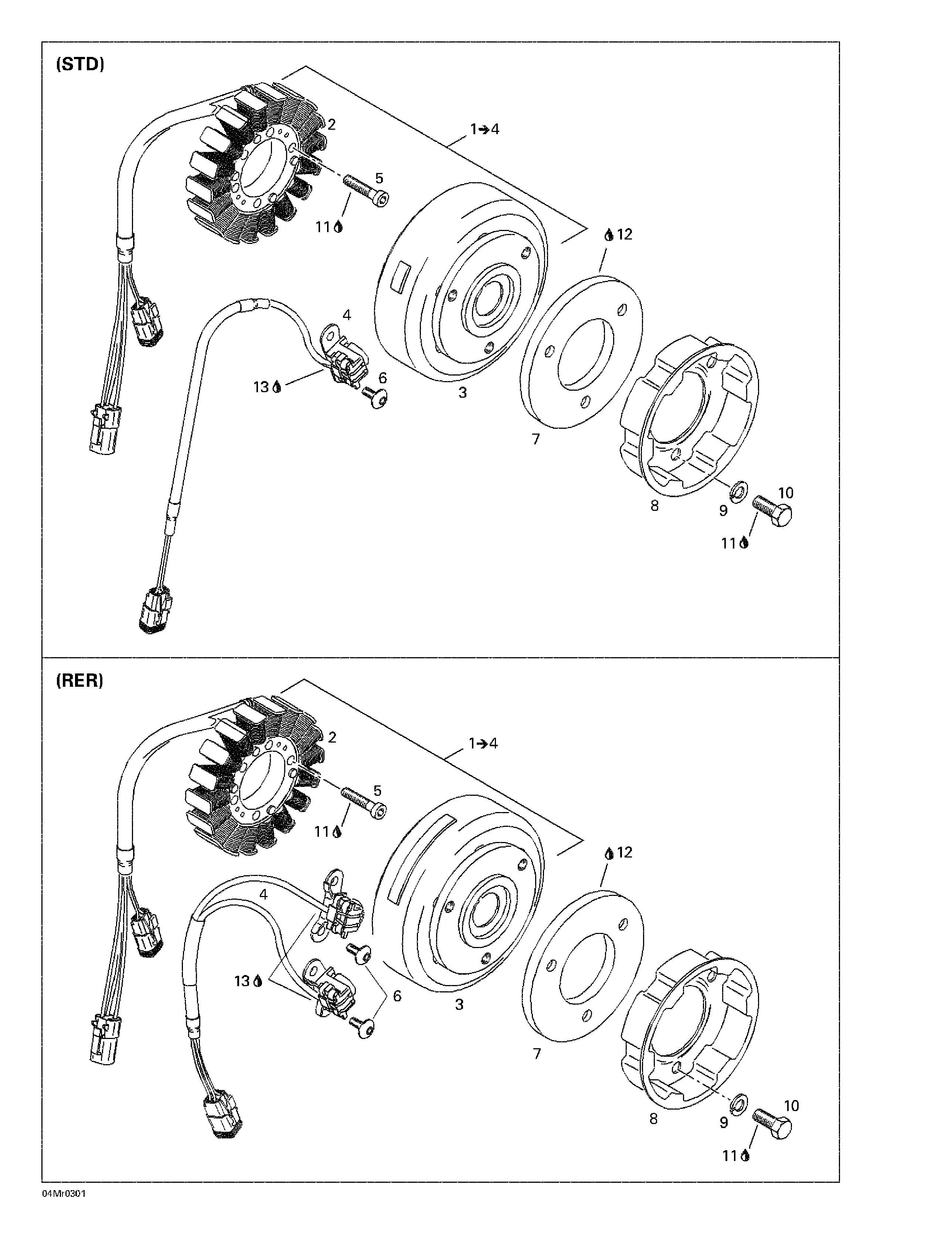

03- Magneto (12V, 360W) для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
2410922946 Stator plateStator plate
-
3410922953 Flywheel (STD)Flywheel (STD)
-
410922947 Flywheel (RER)Flywheel (RER)
-
4410922951 Pick-up ass'y (STD)Pick-up ass'y (STD)
-
410922948 Pick-up ass'y (RER)Pick-up ass'y (RER)
-
5205063044 Socket head screw M6 x 30Socket head screw M6 x 30
-
6420640321 Screw M5 x 16 (STD)Screw M5 x 16 (STD)
-
420640321 Screw M5 x 16 (RER)Screw M5 x 16 (RER)
-
7420866756 Counter weightCounter weight
-
8420852532 Pulley startingPulley starting
-
9420945752 Lock washer 8 mmLock washer 8 mm
-
10207182044 Hex. screw M8 x 20Hex. screw M8 x 20
-
11293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
13293530011 Sealant, Sikaflex black # 221Sealant, Sikaflex black # 221
