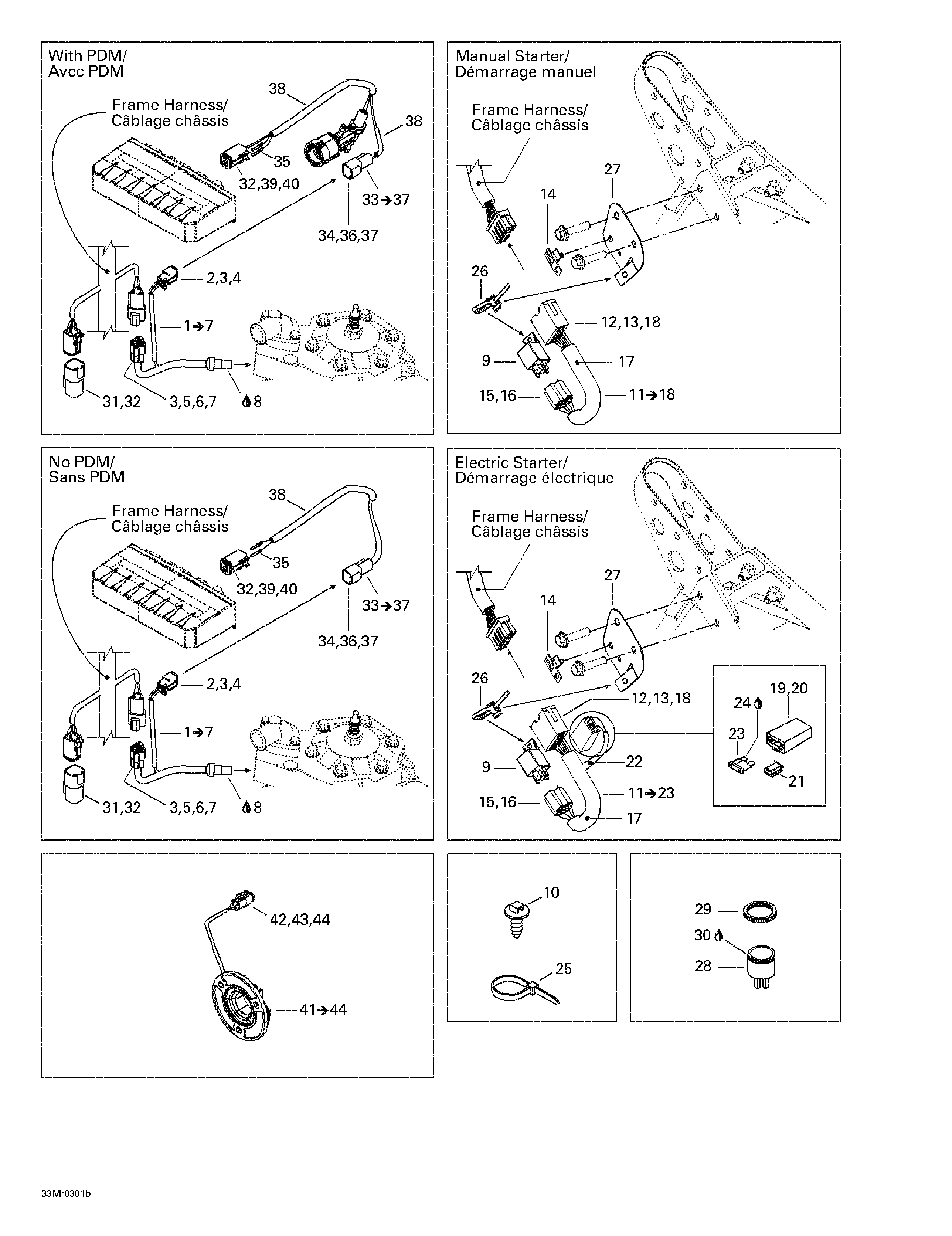

10- Electrical System 2 для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1515175930 Temperature sensor. Includes 1 - 7.Temperature sensor. Includes 1 - 7.
-
1515175820 Temperature sensor. Includes 1 - 7. (JAMES EDITION) MX Z 600 H.O.Temperature sensor. Includes 1 - 7. (JAMES EDITION) MX Z 600 H.O.
-
2515175670 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
3278000632 Female terminalFemale terminal
-
4515175675 Female lock (2 circuits)Female lock (2 circuits)
-
5515175671 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
6515175676 Female lock (3 circuits)Female lock (3 circuits)
-
7293000052 PlugPlug
-
8293800018 Loctite 592, pipe sealant, 50 mlLoctite 592, pipe sealant, 50 ml
-
9410113200 RelayRelay
-
10293730018 Mount dartMount dart
-
11515175721 Configuration harness. Includes 11 - 23. (ELETRIC STARTER)Configuration harness. Includes 11 - 23. (ELETRIC STARTER)
-
11515175722 Configuration harness. Includes 11 - 18. (MANUAL STARTER)Configuration harness. Includes 11 - 18. (MANUAL STARTER)
-
12515175232 Male terminalMale terminal
-
13515175273 Male terminalMale terminal
-
14515175283 Housing supportHousing support
-
15409209900 Female terminal housing (5 circuits)Female terminal housing (5 circuits)
-
16561503100 Female terminalFemale terminal
-
17409901800 TubingTubing
-
18515175720 Male terminal housing (11 circuits)Male terminal housing (11 circuits)
-
19409011600 Female terminalFemale terminal
-
20409004000 Fuse HolderFuse Holder
-
21409014200 ClipClip
-
22515175442 HousingHousing
-
23278000344 Fuse (5 amperes)Fuse (5 amperes)
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
25414115200 Tie-rap 180 mmTie-rap 180 mm
-
26293750009 Tie-rap 160 mmTie-rap 160 mm
-
27515175918 Harness supportHarness support
-
28415060900 Horn (RER)Horn (RER)
-
29414805101 Plastic nut (RER)Plastic nut (RER)
-
30296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
31515175668 Female terminal housing (5 circuits)Female terminal housing (5 circuits)
-
32293000052 Sealing cap (DPM)Sealing cap (DPM)
-
293000052 Sealing cap (no DPM)Sealing cap (no DPM)
-
33515175822 Sensor harness. Includes 33 - 37.Sensor harness. Includes 33 - 37.
-
34278000631 Male terminalMale terminal
-
35278000632 Femelle terminalFemelle terminal
-
36409207500 Male Lock (2 circuits)Male Lock (2 circuits)
-
37515175665 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
38409901300 Low temperature tubingLow temperature tubing
-
39515175673 Male terminal housing (6 circuits)Male terminal housing (6 circuits)
-
40515175678 Male Lock (6 circuits)Male Lock (6 circuits)
-
41504152167 Speed sensor flange. Includes 41 - 44.Speed sensor flange. Includes 41 - 44.
-
42515175671 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
43515175676 Female Lock (3 circuits)Female Lock (3 circuits)
-
44278000632 Femelle terminalFemelle terminal
