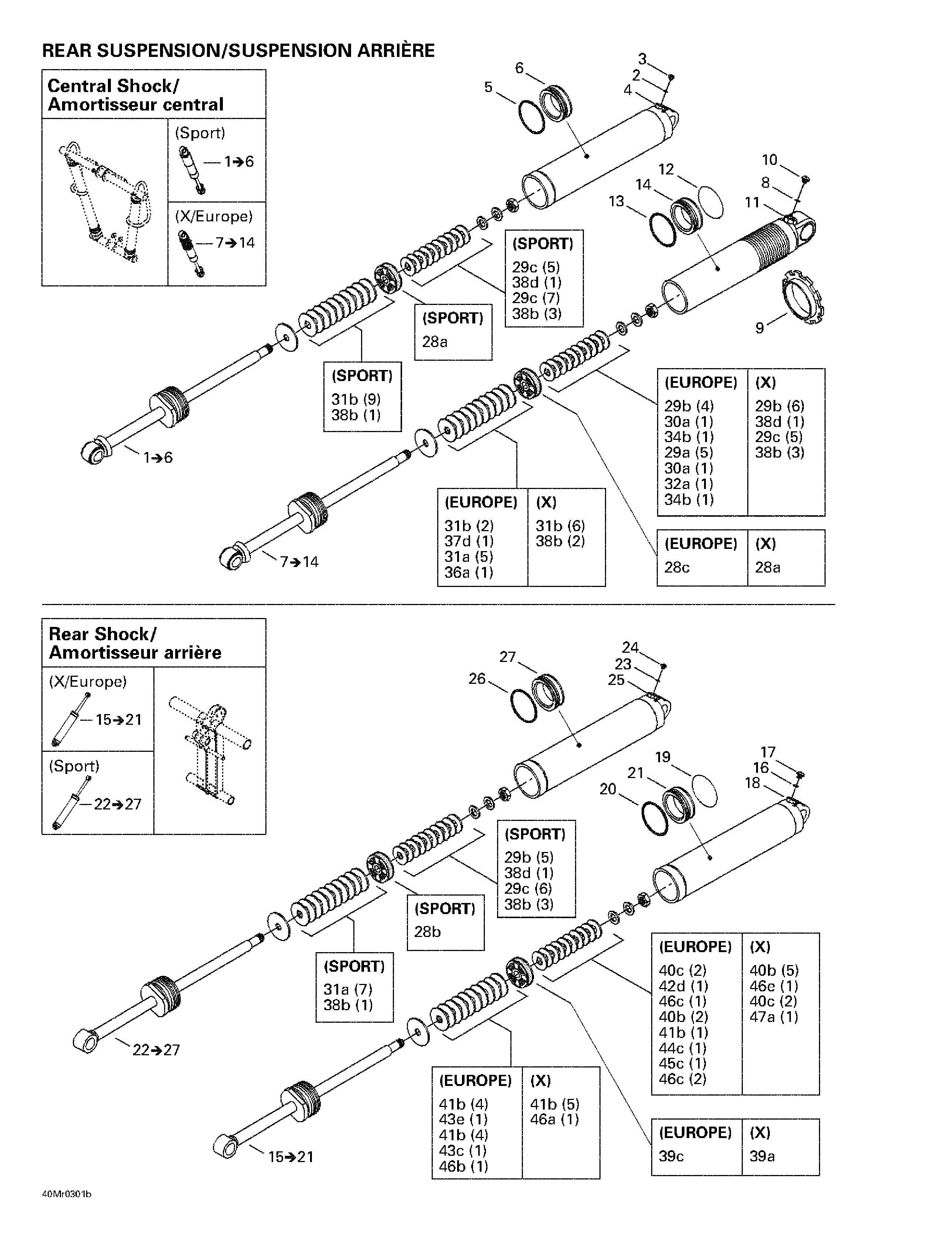

08- Rear Take Apart Shocks для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1503190019 Center shock (SPORT). Includes 1 - 6.Center shock (SPORT). Includes 1 - 6.
-
2505070400 O-ringO-ring
-
3505070399 ScrewScrew
-
4505070398 Air valveAir valve
-
5414888312 O-ringO-ring
-
6415097900 Free pistonFree piston
-
7503190016 Center shock (X). Includes 7 - 14.Center shock (X). Includes 7 - 14.
-
7503190247 Center shock (EUROPE). Includes 7 - 14.Center shock (EUROPE). Includes 7 - 14.
-
8505070400 O-ringO-ring
-
9414888316 Spring collarSpring collar
-
10505070399 ScrewScrew
-
11505070398 Air valveAir valve
-
12503189308 Piston ringPiston ring
-
13414888312 O-ringO-ring
-
14503189309 Free pistonFree piston
-
15503190013 Rear shock (X). Includes 15 - 21.Rear shock (X). Includes 15 - 21.
-
15503190248 Rear shock (EUROPE). Includes 15 - 21.Rear shock (EUROPE). Includes 15 - 21.
-
16505070400 O-ringO-ring
-
17505070399 ScrewScrew
-
18505070398 Air valveAir valve
-
19503189006 Piston ringPiston ring
-
20503189007 O-ringO-ring
-
21503189008 Flotting pistonFlotting piston
-
22503190205 Rear shock (SPORT). Includes 22 - 27.Rear shock (SPORT). Includes 22 - 27.
-
23505070400 O-ringO-ring
-
24505070399 ScrewScrew
-
25505070398 Air valveAir valve
-
26414888312 O-ringO-ring
-
27415097900 Free pistonFree piston
-
28a414888307 Piston (2 x 0.3-6) (C36)Piston (2 x 0.3-6) (C36)
-
28b414888306 Piston (2 x 0.3-4) (C36)Piston (2 x 0.3-4) (C36)
-
28c414888305 Piston (2 x 0.3-2) (C36)Piston (2 x 0.3-2) (C36)
-
28D414888304 Piston (C36)Piston (C36)
-
29a415039100 Leaf valve O30 x 0.254 (C36)Leaf valve O30 x 0.254 (C36)
-
29b414888318 Leaf valve O30 x 0.203 (C36)Leaf valve O30 x 0.203 (C36)
-
29c414888319 Leaf valve O30 x 0.152 (C36)Leaf valve O30 x 0.152 (C36)
-
30a414888320 Leaf valve O28 x 0.203 (C36)Leaf valve O28 x 0.203 (C36)
-
30b414888321 Leaf valve O28 x 0.152 (C36)Leaf valve O28 x 0.152 (C36)
-
31a415039000 Leaf valve O26 x 0.254 (C36)Leaf valve O26 x 0.254 (C36)
-
31b414888322 Leaf valve O26 x 0.203 (C36)Leaf valve O26 x 0.203 (C36)
-
31c414888323 Leaf valve O26 x 0.152 (C36)Leaf valve O26 x 0.152 (C36)
-
32a414888324 Leaf valve O22 x 0.203 (C36)Leaf valve O22 x 0.203 (C36)
-
32b414888325 Leaf valve O22 x 0.152 (C36)Leaf valve O22 x 0.152 (C36)
-
33a414888340 Leaf valve O21 x 0.114 (C36)Leaf valve O21 x 0.114 (C36)
-
34a414888326 Leaf valve O20 x 0.203 (C36)Leaf valve O20 x 0.203 (C36)
-
34b414888327 Leaf valve O20 x 0.152 (C36)Leaf valve O20 x 0.152 (C36)
-
34c414888328 Leaf valve O20 x 0.114 (C36)Leaf valve O20 x 0.114 (C36)
-
35a414888329 Leaf valve O18 x 0.203 (C36)Leaf valve O18 x 0.203 (C36)
-
35b414888330 Leaf valve O18 x 0.152 (C36)Leaf valve O18 x 0.152 (C36)
-
36a414888331 Leaf valve O16 x 0.254 (C36)Leaf valve O16 x 0.254 (C36)
-
36b414888332 Leaf valve O16 x 0.203 (C36)Leaf valve O16 x 0.203 (C36)
-
36c414888333 Leaf valve O16 x 0.152 (C36)Leaf valve O16 x 0.152 (C36)
-
36d415038900 Leaf valve O16 x 0.114 (C36)Leaf valve O16 x 0.114 (C36)
-
37a414888334 Leaf valve O15 x 0.254 (C36)Leaf valve O15 x 0.254 (C36)
-
37b414888335 Leaf valve O15 x 0.203 (C36)Leaf valve O15 x 0.203 (C36)
-
37c414888336 Leaf valve O15 x 0.152 (C36)Leaf valve O15 x 0.152 (C36)
-
37D414888337 Leaf valve O15 x 0.114 (C36)Leaf valve O15 x 0.114 (C36)
-
38a503189538 Leaf valve O12 x 0.254 (C36)Leaf valve O12 x 0.254 (C36)
-
38b414888338 Leaf valve O12 x 0.203 (C36)Leaf valve O12 x 0.203 (C36)
-
38c414888339 Leaf valve O12 x 0.152 (C36)Leaf valve O12 x 0.152 (C36)
-
38d415038800 Leaf valve O12 x 0.114 (C36)Leaf valve O12 x 0.114 (C36)
-
39b503189002 Piston (O1.7) (C46)Piston (O1.7) (C46)
-
39D503189003 Piston (O1.2) (C46)Piston (O1.2) (C46)
-
39E503189004 Piston (C46)Piston (C46)
-
40a503189041 Leaf valve O40 x 0.254 (C46)Leaf valve O40 x 0.254 (C46)
-
40b503189040 Leaf valve O40 x 0.203 (C46)Leaf valve O40 x 0.203 (C46)
-
40c503189039 Leaf valve O40 x 0.152 (C46)Leaf valve O40 x 0.152 (C46)
-
41a503189038 Leaf valve O36 x 0.254 (C46)Leaf valve O36 x 0.254 (C46)
-
41b503189037 Leaf valve O36 x 0.203 (C46)Leaf valve O36 x 0.203 (C46)
-
41c503189036 Leaf valve O36 x 0.152 (C46)Leaf valve O36 x 0.152 (C46)
-
41e503189031 Leaf valve O30 x 0.114 (C46)Leaf valve O30 x 0.114 (C46)
-
42a503189035 Leaf valve O30 x 0.305 (C46)Leaf valve O30 x 0.305 (C46)
-
42b503189034 Leaf valve O30 x 0.254 (C46)Leaf valve O30 x 0.254 (C46)
-
42c503189033 Leaf valve O30 x 0.203 (C46)Leaf valve O30 x 0.203 (C46)
-
42d503189032 Leaf valve O30 x 0.152 (C46)Leaf valve O30 x 0.152 (C46)
-
43a503189030 Leaf valve O28 x 0.305 (C46)Leaf valve O28 x 0.305 (C46)
-
43b503189029 Leaf valve O28 x 0.254 (C46)Leaf valve O28 x 0.254 (C46)
-
43c503189028 Leaf valve O28 x 0.203 (C46)Leaf valve O28 x 0.203 (C46)
-
43d503189027 Leaf valve O28 x 0.152 (C46)Leaf valve O28 x 0.152 (C46)
-
43E503189026 Leaf valve O28 x 0.114 (C46)Leaf valve O28 x 0.114 (C46)
-
44a503189025 Leaf valve O26 x 0.305 (C46)Leaf valve O26 x 0.305 (C46)
-
44b503189024 Leaf valve O26 x 0.254 (C46)Leaf valve O26 x 0.254 (C46)
-
44C503189023 Leaf valve O26 x 0.203 (C46)Leaf valve O26 x 0.203 (C46)
-
44D503189022 Leaf valve O26 x 0.152 (C46)Leaf valve O26 x 0.152 (C46)
-
44E503189021 Leaf valve O26 x 0.114 (C46)Leaf valve O26 x 0.114 (C46)
-
45a503189020 Leaf valve O24 x 0.305 (C46)Leaf valve O24 x 0.305 (C46)
-
45b503189019 Leaf valve O24 x 0.254 (C46)Leaf valve O24 x 0.254 (C46)
-
45c503189018 Leaf valve O24 x 0.203 (C46)Leaf valve O24 x 0.203 (C46)
-
45d503189017 Leaf valve O24 x 0.152 (C46)Leaf valve O24 x 0.152 (C46)
-
45e503189016 Leaf valve O24 x 0.114 (C46)Leaf valve O24 x 0.114 (C46)
-
46a503189015 Leaf valve O22 x 0.305 (C46)Leaf valve O22 x 0.305 (C46)
-
46b503189014 Leaf valve O22 x 0.254 (C46)Leaf valve O22 x 0.254 (C46)
-
46c503189013 Leaf valve O22 x 0.203 (C46)Leaf valve O22 x 0.203 (C46)
-
46d503189012 Leaf valve O22 x 0.152 (C46)Leaf valve O22 x 0.152 (C46)
-
46e503189011 Leaf valve O22 x 0.114 (C46)Leaf valve O22 x 0.114 (C46)
-
48293600035 Shock oil (not shown)Shock oil (not shown)
