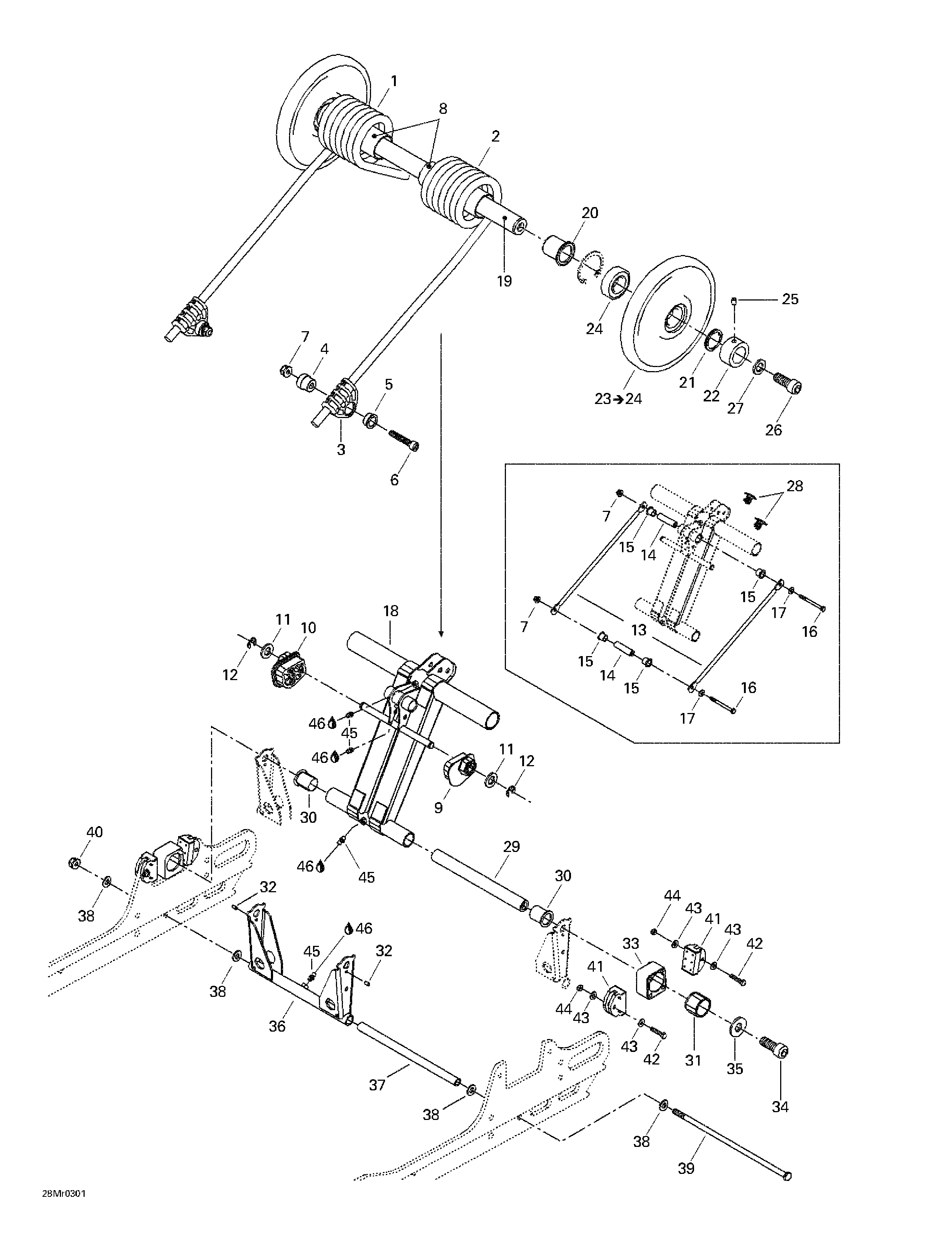

08- Rear Arm для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1503189947 R.H. springR.H. spring
-
2503189948 L.H. springL.H. spring
-
3503189657 Spring supportSpring support
-
4503188934 Spring axle guideSpring axle guide
-
5503188929 Cushion retainerCushion retainer
-
6205084544 Socket head screw M8 x 45Socket head screw M8 x 45
-
7233281414 Elastic flanged nut M8Elastic flanged nut M8
-
8503189105 Plastic bushingPlastic bushing
-
9503190023 L.H. cam adjusterL.H. cam adjuster
-
10503190022 R.H. cam adjusterR.H. cam adjuster
-
11234021410 Flat washer 12 mmFlat washer 12 mm
-
12293370013 E-circlipE-circlip
-
13503189726 Throttle rodThrottle rod
-
14503189815 Axle barAxle bar
-
15506150200 BushingBushing
-
16207088544 Hex. screw M8 x 85Hex. screw M8 x 85
-
17224081201 Flat washerFlat washer
-
18503190110 Rear armRear arm
-
19503189412 Upper axleUpper axle
-
20503189288 CushionCushion
-
21503189146 Axle springAxle spring
-
22503189147 Retainer ringRetainer ring
-
23503190269 Wheel 165 ass'y. Includes 23 - 24.Wheel 165 ass'y. Includes 23 - 24.
-
24405404500 Ball bearing 6205Ball bearing 6205
-
25206260844 Socket set screw M6 x 8Socket set screw M6 x 8
-
26205523544 Socket head screw M12 x 35Socket head screw M12 x 35
-
27503189276 WasherWasher
-
28414644300 DartDart
-
29503189413 Lower shaftLower shaft
-
30503189286 CushionCushion
-
31503189488 Block guideBlock guide
-
32250400005 Dowel pin 4 x 8 mmDowel pin 4 x 8 mm
-
33503189152 L.H. blockL.H. block
-
503189170 R.H. blockR.H. block
-
34205523544 Socket head screw M12 x 35 (Scotch Grip)Socket head screw M12 x 35 (Scotch Grip)
-
35503189276 WasherWasher
-
36503189819 Pivot armPivot arm
-
37503189156 Pivot arm axlePivot arm axle
-
38503189157 WasherWasher
-
39732601198 Long bolt M8Long bolt M8
-
40233281414 Elastic flanged nut M8Elastic flanged nut M8
-
41503189608 Rubber stopperRubber stopper
-
42207053044 Hex. screw M5 x 30Hex. screw M5 x 30
-
43250200016 WasherWasher
-
44232551414 Elastic stop nut M5Elastic stop nut M5
-
45408200700 Grease fittingGrease fitting
-
46219700417 Synthetic Grease, 400gSynthetic Grease, 400g
