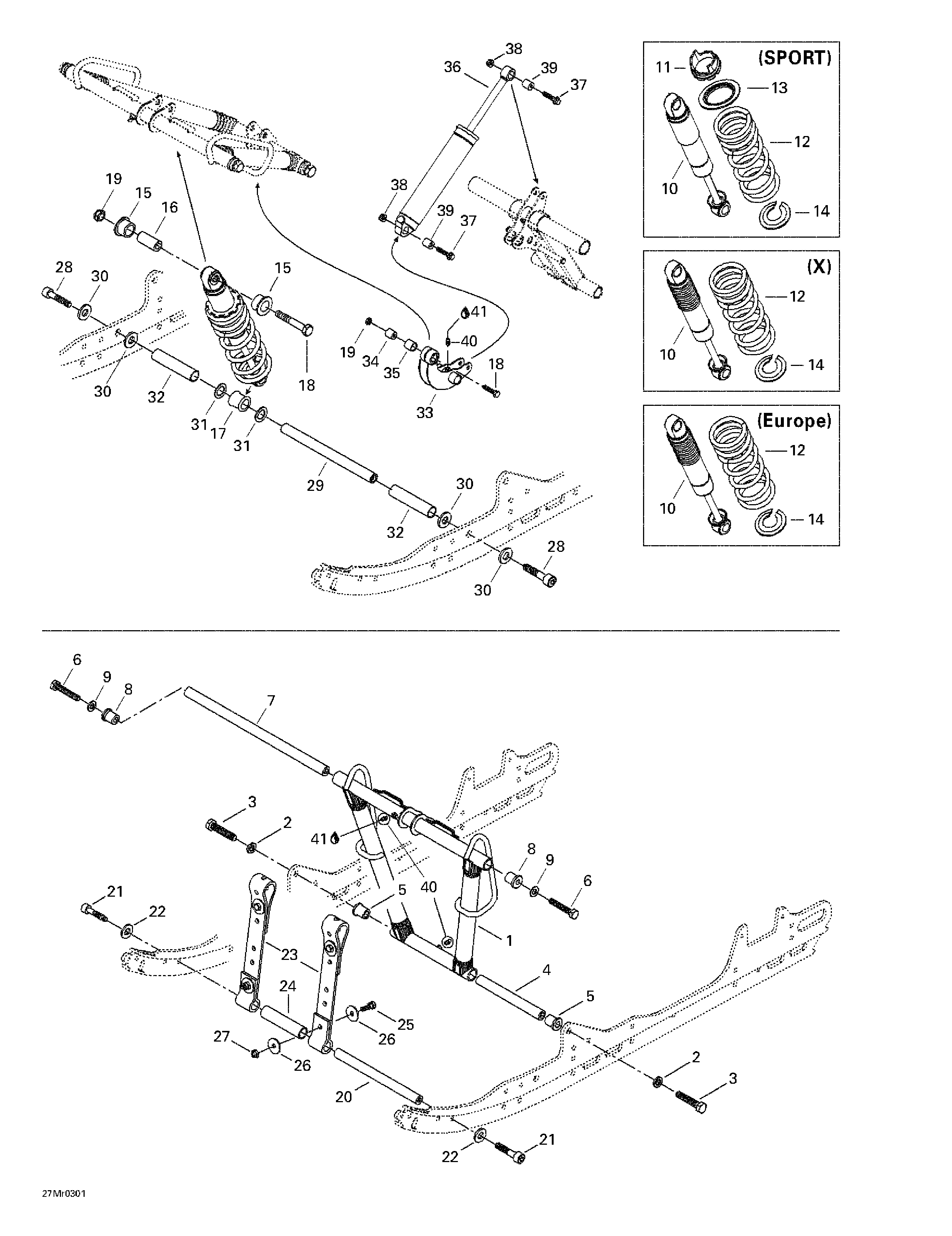

08- Front Arm для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1503189292 Front armFront arm
-
2503189276 WasherWasher
-
3207226044 Hex. screw M12 x 60 (Scotch Grip)Hex. screw M12 x 60 (Scotch Grip)
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207205544 Hex. screw M10 x 55 (Scotch Grip)Hex. screw M10 x 55 (Scotch Grip)
-
7503188938 ShaftShaft
-
8503189324 CushionCushion
-
9732900049 WasherWasher
-
10503190019 Center shock (SPORT)Center shock (SPORT)
-
503190016 Center shock (X)Center shock (X)
-
503190247 Center shock (EUROPE)Center shock (EUROPE)
-
11505070150 Cam (45 Deg.) (SPORT)Cam (45 Deg.) (SPORT)
-
12503189659 Spring (SPORT)Spring (SPORT)
-
503189659 Spring (X)Spring (X)
-
503190283 Spring (EUROPE)Spring (EUROPE)
-
13517184300 Spring guide (SPORT)Spring guide (SPORT)
-
14503189912 Spring stopperSpring stopper
-
15503189117 CushionCushion
-
16503189282 BushingBushing
-
17503189271 CushionCushion
-
18207005044 Hex. screw M10 x 50Hex. screw M10 x 50
-
19233601416 Elastic locking nut M10Elastic locking nut M10
-
20503189562 AxleAxle
-
21205503544 Socket head screw M10 x 35 (Scotch Grip)Socket head screw M10 x 35 (Scotch Grip)
-
22503189564 WasherWasher
-
23503189362 Stopper strapStopper strap
-
24503189265 SpacerSpacer
-
25207182544 Hex. screw M8 x 25Hex. screw M8 x 25
-
26224081301 Flat washerFlat washer
-
27232581414 Elastic stop nut M8Elastic stop nut M8
-
28205523544 Socket head screw M12 x 35 (Scotch Grip)Socket head screw M12 x 35 (Scotch Grip)
-
29503189272 Center shock shaftCenter shock shaft
-
30503189276 WasherWasher
-
31503189273 WasherWasher
-
32503189274 SpacerSpacer
-
33503189845 RockerRocker
-
34503189388 Rocker axleRocker axle
-
35503189626 CushionCushion
-
36503190013 Rear shock (X)Rear shock (X)
-
503190205 Rear shock (SPORT)Rear shock (SPORT)
-
503190248 Rear shock (EUROPE)Rear shock (EUROPE)
-
37207684044 Hex. flanged screw M8 x 40Hex. flanged screw M8 x 40
-
38233281414 Elastic flanged nut M8Elastic flanged nut M8
-
39414936000 CushionCushion
-
40408200700 Grease fittingGrease fitting
-
41219700417 Synthetic Grease, 400gSynthetic Grease, 400g
