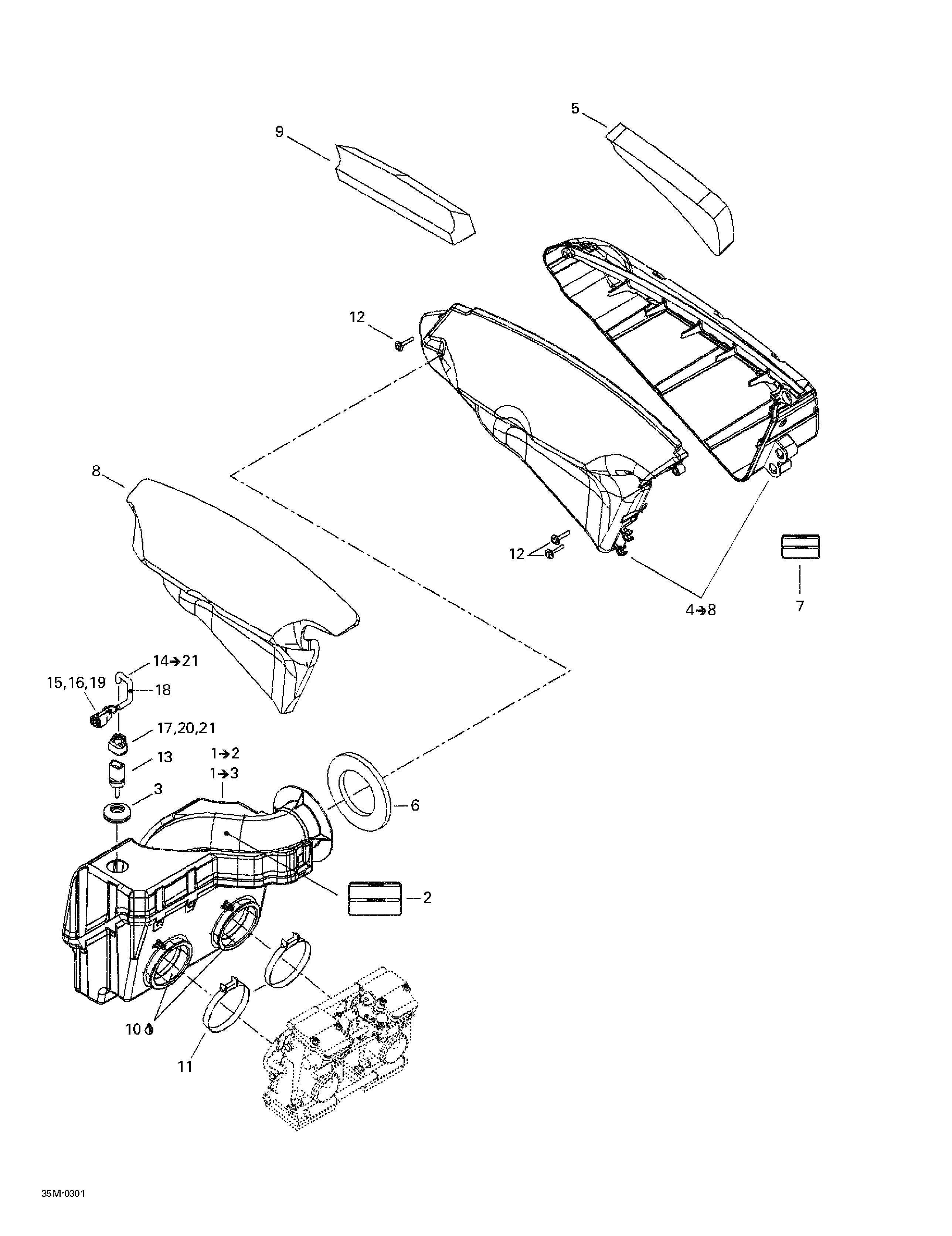

02- Air Intake System для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1508000304 Chamber ass'y (DPM). Includes 1 - 3.Chamber ass'y (DPM). Includes 1 - 3.
-
1508000301 Chamber ass'y (no DPM). Includes 1 - 2.Chamber ass'y (no DPM). Includes 1 - 2.
-
2516001191 Instruction labelInstruction label
-
3570065500 GrommetGrommet
-
4508000302 Chamber ass'y. Includes 4 - 8.Chamber ass'y. Includes 4 - 8.
-
5508000145 Inner foamInner foam
-
6508000199 Outer foamOuter foam
-
7516001191 Instruction labelInstruction label
-
8508000310 Outer foamOuter foam
-
9508000147 Air filterAir filter
-
10413803200 Injection oil (205 liter)Injection oil (205 liter)
-
11508000162 ClampClamp
-
12250000101 Screw M4 x 25Screw M4 x 25
-
13270600000 Air sensorAir sensor
-
14515175703 Temperature harness. Includes 14 - 21.Temperature harness. Includes 14 - 21.
-
15278000998 Female terminalFemale terminal
-
16278000999 SealSeal
-
17278000632 Female terminalFemale terminal
-
18515175332 TubingTubing
-
19515175588 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
20515175670 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
21515175706 Female lock (2 Circuits)Female lock (2 Circuits)
