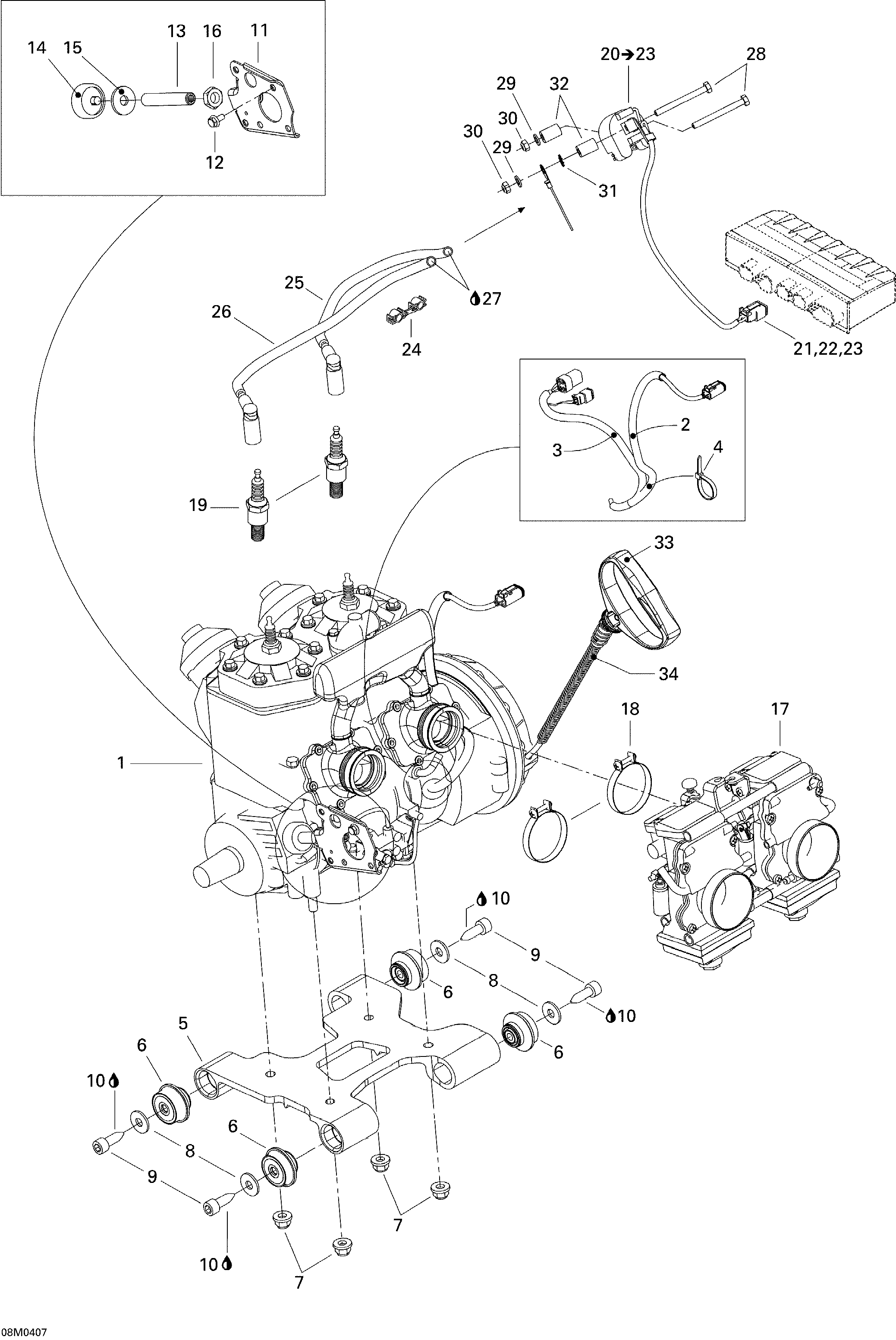

01- Engine 1 для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
1400509741 > engine. MX Z 600 H.O..> engine. MX Z 600 H.O..
-
400509742 > engine (RER). MX Z 600 H.O..> engine (RER). MX Z 600 H.O..
-
400702618 > engine. MX Z 800.> engine. MX Z 800.
-
400702619 > engine (RER). MX Z 800.> engine (RER). MX Z 800.
-
2409901800 TubingTubing
-
3415079900 Tubing 10 mmTubing 10 mm
-
4293750002 Locking Tie 142 mmLocking Tie 142 mm
-
5512059754 Engine supportEngine support
-
6512059691 Rubber mountRubber mount
-
7233201414 Elastic flanged nut M10Elastic flanged nut M10
-
8506151251 WasherWasher
-
9250000094 Screw M10 x 30Screw M10 x 30
-
10413703400 Loctite 222, 10 ccLoctite 222, 10 cc
-
11512059747 PlatePlate
-
12207561244 Hex. flanged screw M6 x 12 (Scotch Grip)Hex. flanged screw M6 x 12 (Scotch Grip)
-
13250500007 Stopper screwStopper screw
-
14512059610 StopperStopper
-
15512059057 WasherWasher
-
16232170411 Hex. jam nut M14Hex. jam nut M14
-
17403138739 Carburetor kit TM-40-B250. MX Z 800.Carburetor kit TM-40-B250. MX Z 800.
-
403138740 Carburetor kit TM-40-B238. MX Z 600 H.O..Carburetor kit TM-40-B238. MX Z 600 H.O..
-
18512059305 ClampClamp
-
19512059552 Spark Plug NGK BR9ECS 0.5mmSpark Plug NGK BR9ECS 0.5mm
-
20512059564 Ignition coil. Includes 20 - 23.Ignition coil. Includes 20 - 23.
-
21515175670 Female terminal housing (2 Circuits)Female terminal housing (2 Circuits)
-
22515175707 Female lock (2 Circuits)Female lock (2 Circuits)
-
23278000632 Female terminalFemale terminal
-
24410914600 Plastic clipPlastic clip
-
25512059695 Cable ass'y (300 mm)Cable ass'y (300 mm)
-
26512059696 Cable ass'y (375 mm)Cable ass'y (375 mm)
-
27293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
28207066044 Hex. screw M6 x 60Hex. screw M6 x 60
-
29234061410 Flat washer 6 mmFlat washer 6 mm
-
30232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
31394001900 Lock washer (exterior tooth)Lock washer (exterior tooth)
-
32517203200 SpacerSpacer
-
33572084400 Starter gripStarter grip
-
34512059535 Rope GuideRope Guide
