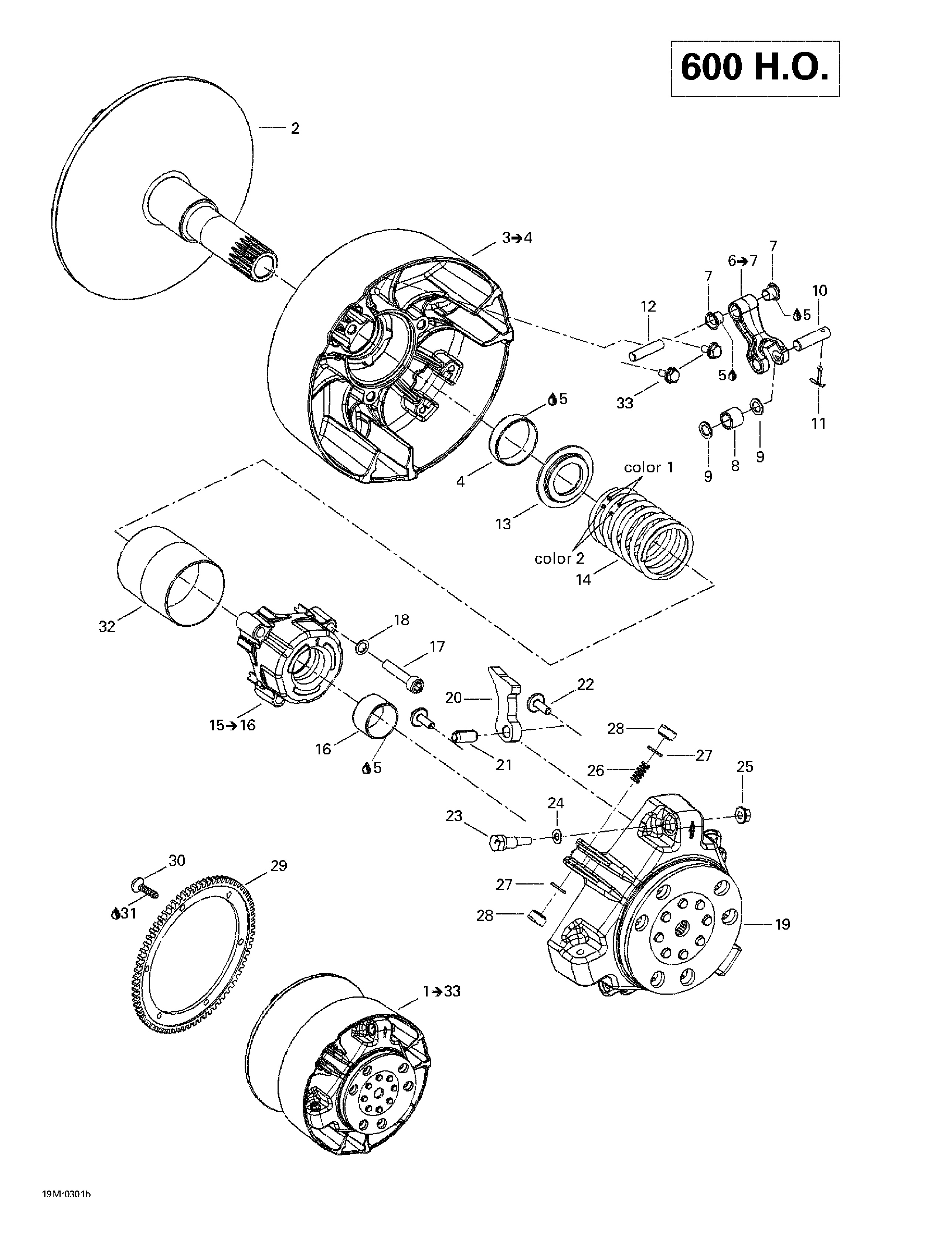

05- Drive Pulley (600 HO) для BRP Ski-Doo MX Z Rev 600 HO/800/007 Special Edition - 2003
-
№АртикулНазвание
-
2417222294 Fixed flange ass'y. MX Z 600 H.O..Fixed flange ass'y. MX Z 600 H.O..
-
3417222181 Sliding flange ass'y. Includes 3 - 4. MX Z 600 H.O..Sliding flange ass'y. Includes 3 - 4. MX Z 600 H.O..
-
4417006900 Bushing. MX Z 600 H.O..Bushing. MX Z 600 H.O..
-
5413703100 Loctite 609, 10 ml. MX Z 600 H.O..Loctite 609, 10 ml. MX Z 600 H.O..
-
6417222306 Lever ass'y. Includes 6 - 7. MX Z 600 H.O..Lever ass'y. Includes 6 - 7. MX Z 600 H.O..
-
7417004305 Bushing. MX Z 600 H.O..Bushing. MX Z 600 H.O..
-
8417003900 Roller ass'y. MX Z 600 H.O..Roller ass'y. MX Z 600 H.O..
-
9417004302 Stopper washer. MX Z 600 H.O..Stopper washer. MX Z 600 H.O..
-
10417004308 Pin. MX Z 600 H.O..Pin. MX Z 600 H.O..
-
11732958001 Cotter pin. MX Z 600 H.O..Cotter pin. MX Z 600 H.O..
-
12417009202 Lever axle. MX Z 600 H.O..Lever axle. MX Z 600 H.O..
-
13417222312 Spring seat. MX Z 600 H.O..Spring seat. MX Z 600 H.O..
-
14414817900 Spring (violet/violet). MX Z 600 H.O..Spring (violet/violet). MX Z 600 H.O..
-
15417007500 Spring cover ass'y. Includes 15 - 16. MX Z 600 H.O..Spring cover ass'y. Includes 15 - 16. MX Z 600 H.O..
-
16417009204 Bushing. MX Z 600 H.O..Bushing. MX Z 600 H.O..
-
17205084044 Socket head screw M8 x 40. MX Z 600 H.O..Socket head screw M8 x 40. MX Z 600 H.O..
-
18250200009 Lock washer 8 mm. MX Z 600 H.O..Lock washer 8 mm. MX Z 600 H.O..
-
19417222213 Governor cup. MX Z 600 H.O..Governor cup. MX Z 600 H.O..
-
20417222596 Ramp 410. MX Z 600 H.O..Ramp 410. MX Z 600 H.O..
-
21250400009 Rolled pin. MX Z 600 H.O..Rolled pin. MX Z 600 H.O..
-
22250000059 Hex. flanged screw M6 x 18. MX Z 600 H.O..Hex. flanged screw M6 x 18. MX Z 600 H.O..
-
23417005500 Calibration screw. MX Z 600 H.O..Calibration screw. MX Z 600 H.O..
-
24417005600 Washer. MX Z 600 H.O..Washer. MX Z 600 H.O..
-
25233061414 Hex. flanged nut M6. MX Z 600 H.O..Hex. flanged nut M6. MX Z 600 H.O..
-
26417005700 Spring. MX Z 600 H.O..Spring. MX Z 600 H.O..
-
27732401030 O-ring. MX Z 600 H.O..O-ring. MX Z 600 H.O..
-
28417005800 Slider shoe. MX Z 600 H.O..Slider shoe. MX Z 600 H.O..
-
29417222321 Ring gear. RER 600 H.O. ELECTRIC MX Z 600 H.O.Ring gear. RER 600 H.O. ELECTRIC MX Z 600 H.O.
-
30250000049 Torx screw M8 x 14.5. RER 600 H.O. ELECTRIC MX Z 600 H.O.Torx screw M8 x 14.5. RER 600 H.O. ELECTRIC MX Z 600 H.O.
-
31293800005 Loctite 271, 10 ml. RER 600 H.O. ELECTRIC MX Z 600 H.O.Loctite 271, 10 ml. RER 600 H.O. ELECTRIC MX Z 600 H.O.
-
32417009205 Guard. MX Z 600 H.O..Guard. MX Z 600 H.O..
-
33210361296 Hex. forming screw M6 x 12. MX Z 600 H.O..Hex. forming screw M6 x 12. MX Z 600 H.O..
