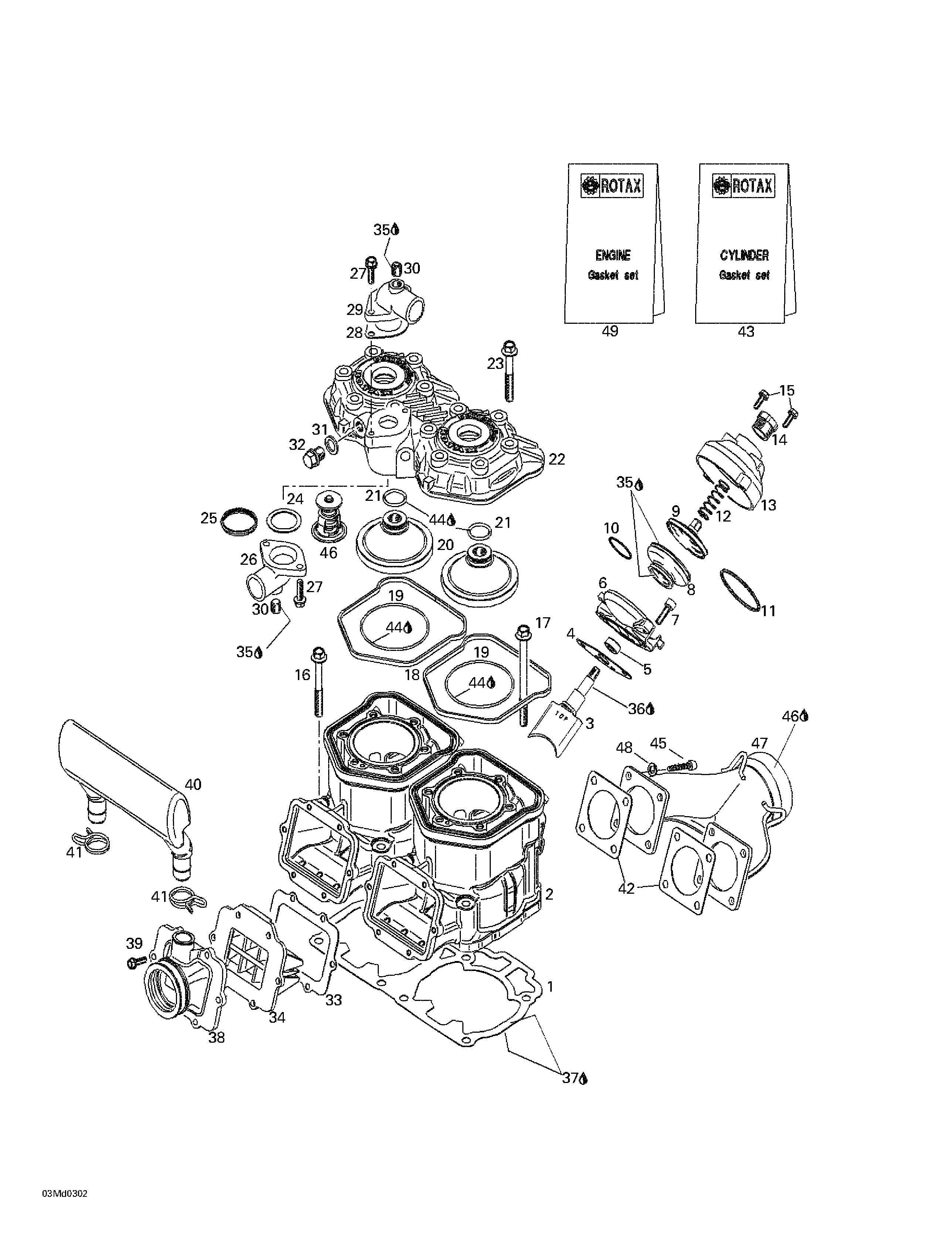

01- Cylinder, Exhaust Manifold для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1420931584 Double Gasket 0,8 mmDouble Gasket 0,8 mm
-
420931962 Double Gasket 0,7 mmDouble Gasket 0,7 mm
-
420931582 Double Gasket 0,6 mmDouble Gasket 0,6 mm
-
420931583 Double Gasket 0,5 mmDouble Gasket 0,5 mm
-
420931581 Double Gasket 0,4 mmDouble Gasket 0,4 mm
-
420931580 Double Gasket 0,3 mmDouble Gasket 0,3 mm
-
2420923720 Nicasil CylinderNicasil Cylinder
-
3420854480 Exhaust ValveExhaust Valve
-
4420250238 GasketGasket
-
5420950730 Oil SealOil Seal
-
6420854266 Valve HousingValve Housing
-
7205062044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
8290260723 BellowsBellows
-
9420854449 Exhaust Valve PistonExhaust Valve Piston
-
10420838253 Spring ClampSpring Clamp
-
11290239048 Hose SpringHose Spring
-
12420239948 SpringSpring
-
13420911552 Valve CoverValve Cover
-
14420241221 Adjuster ScrewAdjuster Screw
-
15420841555 Tapping Screw M5 x 20Tapping Screw M5 x 20
-
16420640951 Screw Hex. M8 x 68.5Screw Hex. M8 x 68.5
-
17420940129 Hex. Flanged Screw M8 x 100Hex. Flanged Screw M8 x 100
-
18420931595 Square RingSquare Ring
-
19420950490 O-RingO-Ring
-
20420923877 Combustion Chamber InsertCombustion Chamber Insert
-
21420430370 O-RingO-Ring
-
22420923734 Cylinder Head Cover (Silver)Cylinder Head Cover (Silver)
-
23420240326 Hex. Flanged Screw M8 x 53,5Hex. Flanged Screw M8 x 53,5
-
24420927745 Retaining DiskRetaining Disk
-
25420931270 Seal RingSeal Ring
-
26420922061 Bent Outlet SocketBent Outlet Socket
-
27420941250 Tapping Screw M6 x 20Tapping Screw M6 x 20
-
28420850338 GasketGasket
-
29420922062 Bent Outlet SocketBent Outlet Socket
-
30420240480 Screw Plug 1/8-27 NPTScrew Plug 1/8-27 NPT
-
31420250015 Ring GasketRing Gasket
-
32420841921 Screw Plug M12 x 1,5Screw Plug M12 x 1,5
-
33420630810 GasketGasket
-
34420924810 Reed Valve SupportReed Valve Support
-
35420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
36711297433 Molykote G-N, 50gMolykote G-N, 50g
-
37420888633 Engine Gasket SetEngine Gasket Set
-
38420667077 Carburetor SocketCarburetor Socket
-
39420241270 Tapping Screw M5 x 25Tapping Screw M5 x 25
-
40420867220 Intake ResonatorIntake Resonator
-
41420851440 ClampClamp
-
42420850552 GasketGasket
-
43420888637 Cylinder Gasket SetCylinder Gasket Set
-
44413707000 Molykote 111Molykote 111
-
45420973555 Exhaust ManifoldExhaust Manifold
-
46420922519 ThermostatThermostat
