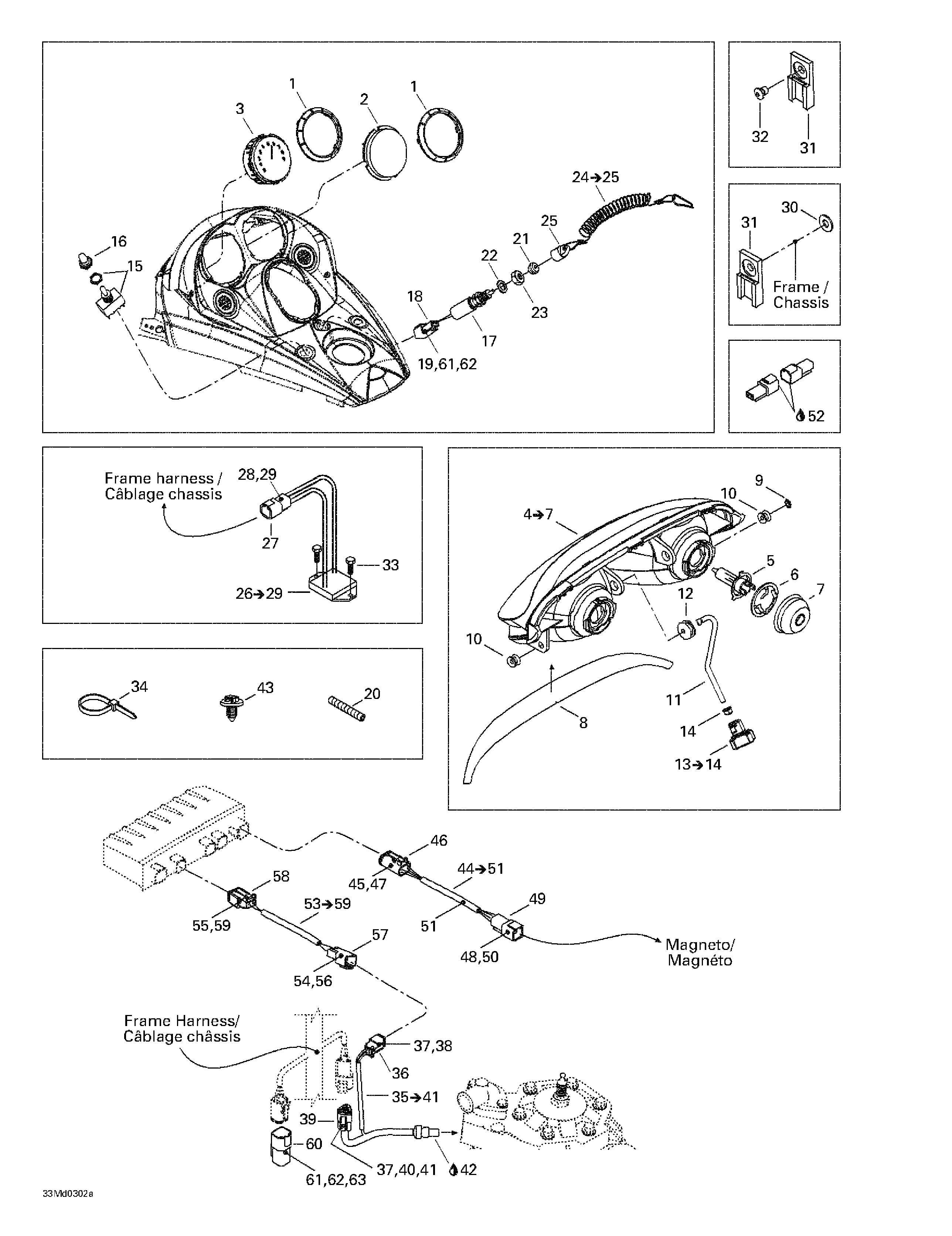

10- Electrical System для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1515175651 Gauge ringGauge ring
-
2515175901 Bottom ringBottom ring
-
3515175900 TachometerTachometer
-
4515175909 Halogen headlamp. Includes 4 - 7.Halogen headlamp. Includes 4 - 7.
-
5410504401 Halogen bulbHalogen bulb
-
6515175910 Bulb holderBulb holder
-
7515175911 CoverCover
-
8516001328 Headlamp decalHeadlamp decal
-
9732610072 Push NutPush Nut
-
10515175760 Headlamp bushingHeadlamp bushing
-
11515175521 Adjuster rodAdjuster rod
-
12415100800 GrommetGrommet
-
13515175975 Handle. Includes 13 - 14.Handle. Includes 13 - 14.
-
14233261414 Elastic flanged nut M6Elastic flanged nut M6
-
15410107300 Switch (Heating Grip)Switch (Heating Grip)
-
16515175281 Switch coverSwitch cover
-
17515175653 Brake switchBrake switch
-
18515175665 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
19409207600 Male lock (3 circuits)Male lock (3 circuits)
-
20515175332 Vinyl tubingVinyl tubing
-
515175332 Vinyl tubingVinyl tubing
-
515175332 Vinyl tubingVinyl tubing
-
21570151100 Plunger capPlunger cap
-
22234001410 Flat washer M10Flat washer M10
-
23515145900 Switch nutSwitch nut
-
24515167900 Cap ass'y. Includes 24 - 25.Cap ass'y. Includes 24 - 25.
-
25572012200 Switch capSwitch cap
-
26515175655 Volt regulator. Includes 26 - 29.Volt regulator. Includes 26 - 29.
-
27278001477 Male terminal housing (4 circuits)Male terminal housing (4 circuits)
-
28515175568 Male TerminalMale Terminal
-
29278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
30517225900 Flat washerFlat washer
-
31515175917 ClipClip
-
32390402200 Pop rivet 3/16''Pop rivet 3/16''
-
33210261680 Hex flanged screw M6 x 16Hex flanged screw M6 x 16
-
34293750001 Tie-rap 94 mmTie-rap 94 mm
-
293750009 Tie-rap 160 mmTie-rap 160 mm
-
293750008 Tie-rap 350 mmTie-rap 350 mm
-
414115200 Tie-rapTie-rap
-
35515175930 Temperature sensor. Includes 35 - 41.Temperature sensor. Includes 35 - 41.
-
36515175670 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
37278000632 Female terminalFemale terminal
-
38515175675 Female lock (2 circuits)Female lock (2 circuits)
-
39515175671 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
40515175676 Female lock (3 circuits)Female lock (3 circuits)
-
41293000052 PlugPlug
-
42293800018 Loctite 592, pipe sealant, 50 gLoctite 592, pipe sealant, 50 g
-
43293730018 Mount dartMount dart
-
44515175766 Supply adaptator. Includes 44 - 51.Supply adaptator. Includes 44 - 51.
-
45278000632 Female terminalFemale terminal
-
46278001739 Female terminal housing (4 circuits)Female terminal housing (4 circuits)
-
47278000738 Female lock (4 circuits)Female lock (4 circuits)
-
48409014800 Male terminalMale terminal
-
49710000045 Male terminal housing (4 circuits)Male terminal housing (4 circuits)
-
50710000046 Female lock (4 circuits)Female lock (4 circuits)
-
51515175442 Tubing 6 mmTubing 6 mm
-
52293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
53515175963 Temperature harness. Includes 53 - 59.Temperature harness. Includes 53 - 59.
-
54278000631 Male terminalMale terminal
-
55278000632 Female terminalFemale terminal
-
56409207500 Male lock (2 circuits)Male lock (2 circuits)
-
57515175665 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
58515175670 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
59515175706 Female lock (2 circuits)Female lock (2 circuits)
-
60515175668 Female terminal housing (6 circuits)Female terminal housing (6 circuits)
-
61278000631 Male terminalMale terminal
-
62515175823 Male terminalMale terminal
-
63293000052 Sealing capSealing cap
