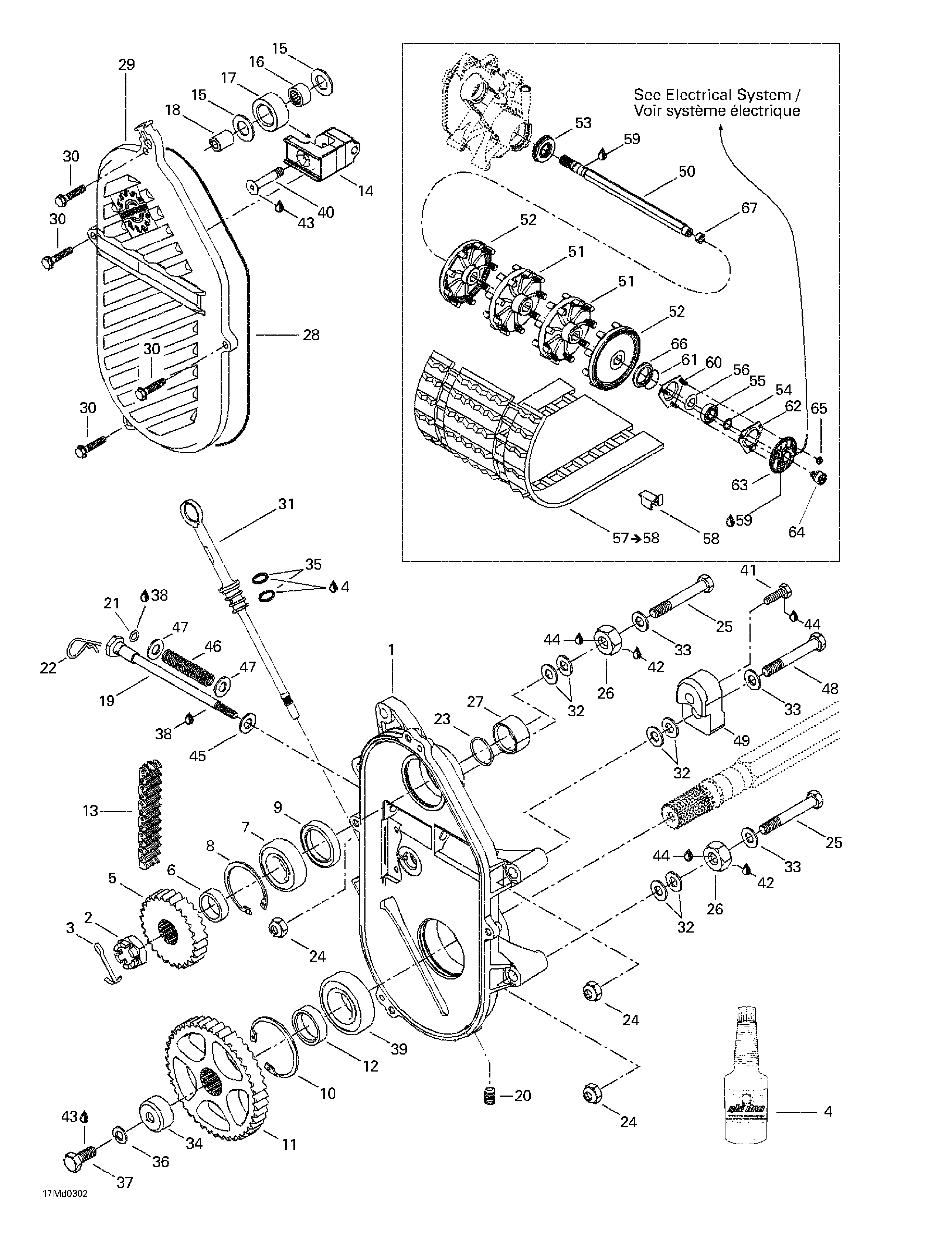

05- Drive System для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1504152086 ChaincaseChaincase
-
2250000012 Castellated Nut M20Castellated Nut M20
-
3371006300 Cotter PinCotter Pin
-
4413803300 Synthetic Chaincase Oil. (12 x 355 ml)Synthetic Chaincase Oil. (12 x 355 ml)
-
5504152044 21 Teeth Sprocket (Large)21 Teeth Sprocket (Large)
-
6504093400 ShimShim
-
7504152006 Ball Bearing 6205Ball Bearing 6205
-
8371901700 Internal CirclipInternal Circlip
-
9415049300 Oil SealOil Seal
-
10415064300 CirclipCirclip
-
11504148500 43 Teeth Sprocket Large43 Teeth Sprocket Large
-
12504152058 ShimShim
-
13504151910 Drive Chain Large, (74 Links)Drive Chain Large, (74 Links)
-
14504152083 Chain TensionerChain Tensioner
-
15504080300 WasherWasher
-
16405403000 Needle BearingNeedle Bearing
-
17414531300 RollerRoller
-
18504080200 BushingBushing
-
19504151946 Adjusting ScrewAdjusting Screw
-
20504151921 Plug 1/8-27Plug 1/8-27
-
21504151954 O-RingO-Ring
-
22414575600 Hair PinHair Pin
-
23414876700 O-RingO-Ring
-
24233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
25207107544 Hex. Screw M10 x 75Hex. Screw M10 x 75
-
26504083800 SpacerSpacer
-
27507031500 SpacerSpacer
-
28415046400 O-RingO-Ring
-
29504152027 Casting CoverCasting Cover
-
30210263080 Taptite Hex. Screw M6 x 30Taptite Hex. Screw M6 x 30
-
31504151703 Filler CapFiller Cap
-
32504073700 WasherWasher
-
33503183800 Flat Washer 10 mmFlat Washer 10 mm
-
34504152104 CapCap
-
35414969400 O-RingO-Ring
-
36234100602 Lock Washer 10 mmLock Washer 10 mm
-
37207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
38219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
39504152005 Ball BearingBall Bearing
-
40732601144 ScrewScrew
-
41207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
42293800070 Loctite, Antiseize Lubricant, 8 ozLoctite, Antiseize Lubricant, 8 oz
-
43293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
44293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
45503189148 WasherWasher
-
46504151945 SpringSpring
-
47503125900 Hardened WasherHardened Washer
-
48207006044 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
49504152106 SpacerSpacer
-
50504152192 Drive AxleDrive Axle
-
51504151803 9-Tooth Sprocket9-Tooth Sprocket
-
52504151834 9-Tooth Half Sprocket9-Tooth Half Sprocket
-
53504151918 Oil SealOil Seal
-
54371910200 CirclipCirclip
-
55504152009 Ball BearingBall Bearing
-
56501017400 Ball Bearing ProtectorBall Bearing Protector
-
57504152200 Track 15'' x 121'' x 1.625''. Includes 57 - 58.Track 15'' x 121'' x 1.625''. Includes 57 - 58.
-
58500003400 Guide CleatGuide Cleat
-
59219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
60504151860 Bearing HousingBearing Housing
-
61504152194 CirclipCirclip
-
62501025000 FlangeFlange
-
63504152167 Flange (Speedo Drive Insert)Flange (Speedo Drive Insert)
-
64504152040 Magnetic AdaptorMagnetic Adaptor
-
65233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
66504152193 Ring RetainerRing Retainer
-
67572097500 AdaptorAdaptor
