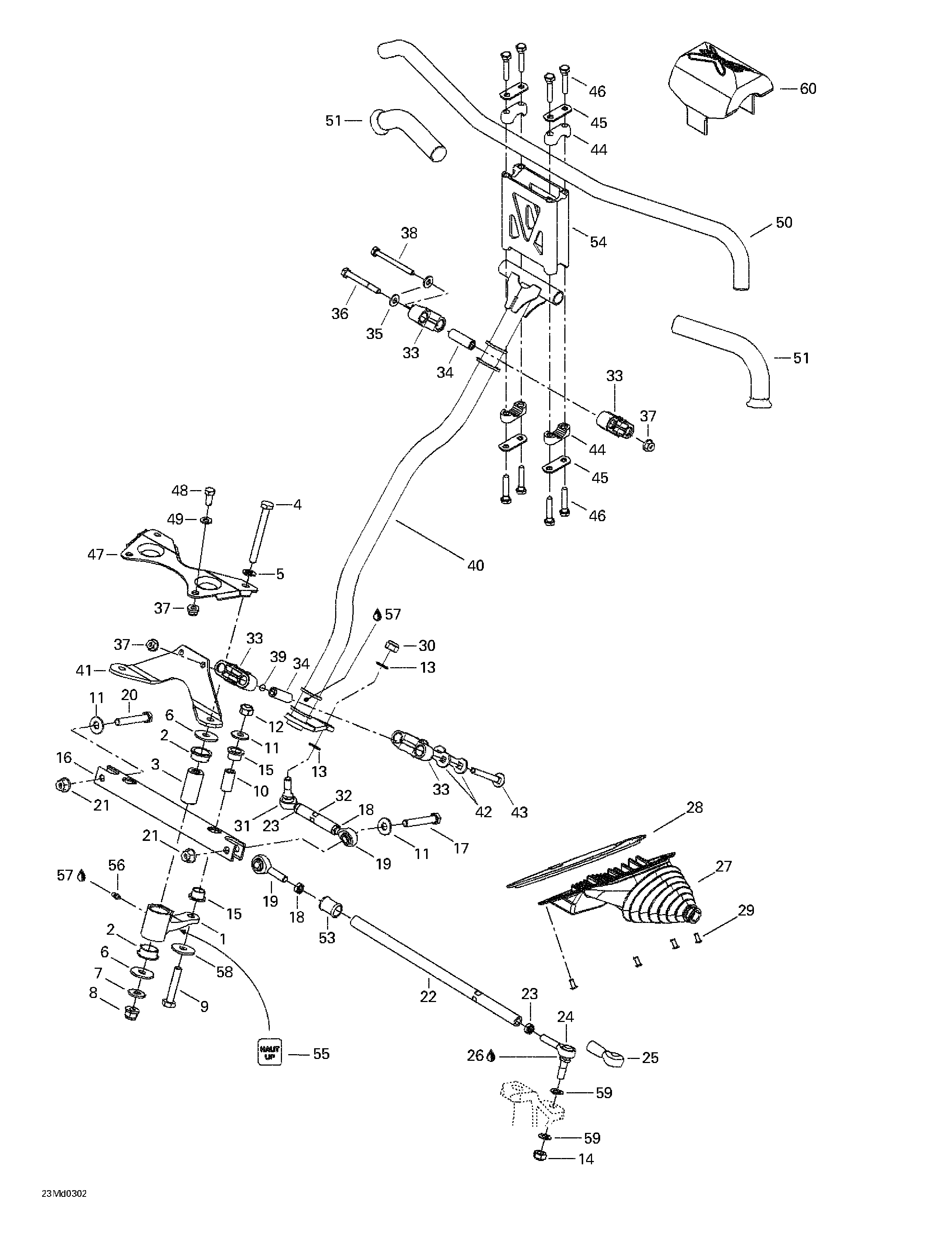

07- Steering System для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1506151627 R.H. swivel armR.H. swivel arm
-
506151628 L.H. swivel armL.H. swivel arm
-
2415041100 CushionCushion
-
4207009086 Hex. screw M10 x 90Hex. screw M10 x 90
-
5503183800 WasherWasher
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Flanged nut M10Flanged nut M10
-
9207005544 Hex. screw M10 x 55Hex. screw M10 x 55
-
10506151273 Pivot barPivot bar
-
11224002251 Flat washerFlat washer
-
12233601416 Elastic locking nut M10Elastic locking nut M10
-
13503175800 WasherWasher
-
14232501416 Elastic stop nut M10Elastic stop nut M10
-
15506150200 Swivel bushingSwivel bushing
-
16506151328 Swivel barSwivel bar
-
17207006544 Hex. screw M10 x 65Hex. screw M10 x 65
-
18250100016 L.H. hex. jam nut M10L.H. hex. jam nut M10
-
19506151705 L.H. ball jointL.H. ball joint
-
21233201414 Elastic flanged nut M10Elastic flanged nut M10
-
22506151340 Tie-rodTie-rod
-
23732610010 R.H. hex. jam nut M10R.H. hex. jam nut M10
-
24506151613 Ball jointBall joint
-
25570151000 Protection capProtection cap
-
26293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
27506151725 R.H. tie-rod capR.H. tie-rod cap
-
506151726 L.H. tie-rod capL.H. tie-rod cap
-
28506151356 R.H. retainer ringR.H. retainer ring
-
506151357 L.H. retainer ringL.H. retainer ring
-
29390402200 Pop rivet 3/16''Pop rivet 3/16''
-
30232501416 Elastic stop nut M10Elastic stop nut M10
-
31506151613 Ball jointBall joint
-
32506151619 Tie-rodTie-rod
-
33506150400 Half housingHalf housing
-
34506150500 Bushing housingBushing housing
-
35503189157 WasherWasher
-
36207087044 Hex. screw M8 x 70Hex. screw M8 x 70
-
37233281414 Elastic flanged nut M8Elastic flanged nut M8
-
38207088044 Hex. screw M8 x 80Hex. screw M8 x 80
-
39506151140 O-ringO-ring
-
40506151644 Main tubeMain tube
-
41506151330 Steering shaft supportSteering shaft support
-
42506150600 Stopper plateStopper plate
-
43207787044 Carriage bolt M8 x 70Carriage bolt M8 x 70
-
44506151622 Steering supportSteering support
-
45506151196 ReinforcementReinforcement
-
46250000074 Hex. screw M8 x 40Hex. screw M8 x 40
-
47506151536 Pivot supportPivot support
-
48207182044 Hex. screw M8 x 20Hex. screw M8 x 20
-
49234081410 Flat washer 8 mmFlat washer 8 mm
-
50506151656 HandlebarHandlebar
-
51506151530 R.H. Handle grip 6-1/2''R.H. Handle grip 6-1/2''
-
52506151541 L.H. Handle grip 8-3/4''L.H. Handle grip 8-3/4''
-
53572036500 BushingBushing
-
54506151428 ExtensionExtension
-
55516001750 DecalDecal
-
56408200700 Grease fittingGrease fitting
-
57219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
58250200032 WasherWasher
-
59503183800 WasherWasher
-
60506151711 Steering PadSteering Pad
