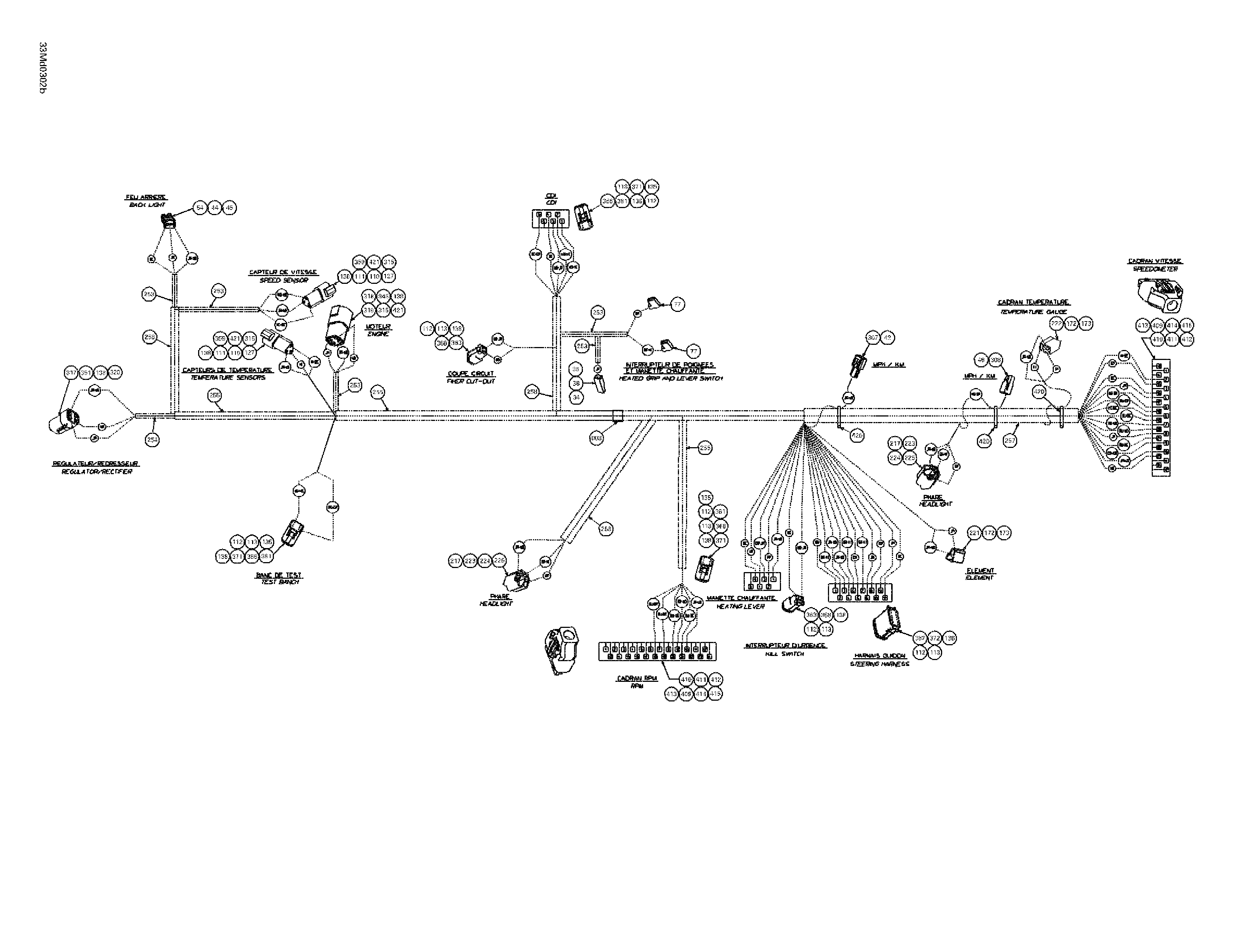

10- Frame Harness для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1515175894 Frame harness. Includes 1 - 421.Frame harness. Includes 1 - 421.
-
34409010100 Female terminalFemale terminal
-
35409010600 Female terminalFemale terminal
-
36409010400 Female terminal housing (1 circuit)Female terminal housing (1 circuit)
-
42515175273 Male terminalMale terminal
-
44515175231 Female lock (16-20 circuits)Female lock (16-20 circuits)
-
46515175282 Female terminalFemale terminal
-
54515175495 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
77409010300 Female terminalFemale terminal
-
110278000631 Male terminalMale terminal
-
111515175823 Male terminalMale terminal
-
112278000632 Female terminalFemale terminal
-
113278000276 Female terminalFemale terminal
-
127409207600 Male lock (3 circuits)Male lock (3 circuits)
-
135278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
138293000052 PlugPlug
-
172561503100 Female terminalFemale terminal
-
173561503100 Female terminalFemale terminal
-
217409011500 Female terminalFemale terminal
-
221409204600 Female terminal housing 2 circuits)Female terminal housing 2 circuits)
-
222409204300 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
223515175320 Female terminalFemale terminal
-
224515175321 Female terminalFemale terminal
-
225409202700 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
253515175442 Tuging 6 mmTuging 6 mm
-
254409901700 Tuging 9 mmTuging 9 mm
-
255409901800 Tuging 13 mmTuging 13 mm
-
257409901600 Tuging 19 mmTuging 19 mm
-
258415079900 Tuging 10 mmTuging 10 mm
-
307515175509 Male terminal housing (1 circuit)Male terminal housing (1 circuit)
-
308515175510 Female terminal housing (1 circuit)Female terminal housing (1 circuit)
-
315270000141 ClipClip
-
317278001473 Female terminal housing (4 circuits)Female terminal housing (4 circuits)
-
318278001477 Male terminal housing (4 circuits)Male terminal housing (4 circuits)
-
319515175568 Male TerminalMale Terminal
-
320515175567 Female terminalFemale terminal
-
346278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
351278001474 Female lock (4 circuits)Female lock (4 circuits)
-
359515175666 Male terminal housing (3 circuits)Male terminal housing (3 circuits)
-
363515175670 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
366515175673 Female terminal housing (6 circuits)Female terminal housing (6 circuits)
-
368515175675 Female lock (2 circuits)Female lock (2 circuits)
-
371515175678 Female lock (6 circuits)Female lock (6 circuits)
-
381515175705 Female lock (6 circuits)Female lock (6 circuits)
-
382515175704 Female terminal housing (12 circuits)Female terminal housing (12 circuits)
-
409515175812 PlugPlug
-
410515175801 Female terminal housing (24 circuits)Female terminal housing (24 circuits)
-
411515175802 Terminal housing supportTerminal housing support
-
412515175803 Wire sealWire seal
-
413515175804 HousingHousing
-
414515175805 LockLock
-
415515175806 Female terminalFemale terminal
-
420414115200 Tie-rap 180 mmTie-rap 180 mm
-
421515175821 ClipClip
