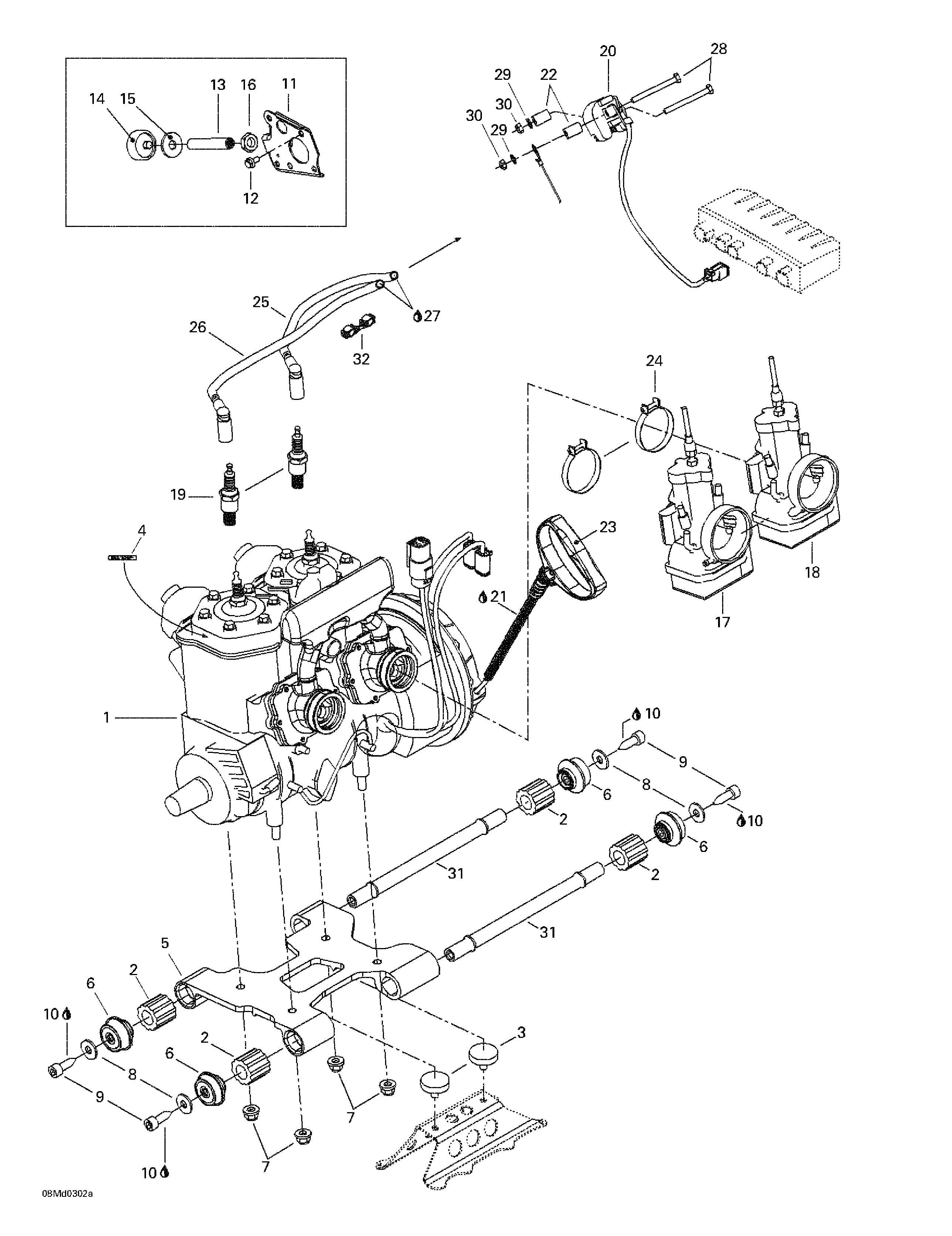

01- Engine 1 для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1400409419 > engine> engine
-
2512059781 DamperDamper
-
3512059738 StopperStopper
-
4516000986 Spark Plug DecalSpark Plug Decal
-
5512059754 Engine supportEngine support
-
6512059777 Rubber mountRubber mount
-
7233201414 Elastic flanged nut M10Elastic flanged nut M10
-
8506151251 WasherWasher
-
9250000131 Screw M10 x 50Screw M10 x 50
-
10413703400 Loctite 222, 10 ccLoctite 222, 10 cc
-
11512059747 PlatePlate
-
12207561244 Hex. flanged screw M6 x 12 (Scotch Grip)Hex. flanged screw M6 x 12 (Scotch Grip)
-
13250500007 Stopper screwStopper screw
-
14512059741 StopperStopper
-
15512059775 WasherWasher
-
16232170411 Hex. jam nut M14Hex. jam nut M14
-
17403138737 Carburetor kit TMX-34-32 PTOCarburetor kit TMX-34-32 PTO
-
18403138738 Carburetor kit TMX-34 MAGCarburetor kit TMX-34 MAG
-
18512059305 ClampClamp
-
19414961100 Spark plug (NGK BR9 ES)Spark plug (NGK BR9 ES)
-
20512059564 Ignition coilIgnition coil
-
21413803200 Injection Oil (0,001 l)Injection Oil (0,001 l)
-
22517203200 SpacerSpacer
-
23572084400 Starter gripStarter grip
-
24512059403 ClampClamp
-
25512059695 Cable ass'y (300 mm)Cable ass'y (300 mm)
-
26512059696 Cable ass'y (375 mm)Cable ass'y (375 mm)
-
27293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
28207066044 Hex. screw M6 x 60Hex. screw M6 x 60
-
29234061410 Flat washer 6 mmFlat washer 6 mm
-
30232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
31512059776 ShaftShaft
-
32410914600 Spark Plug HolderSpark Plug Holder
