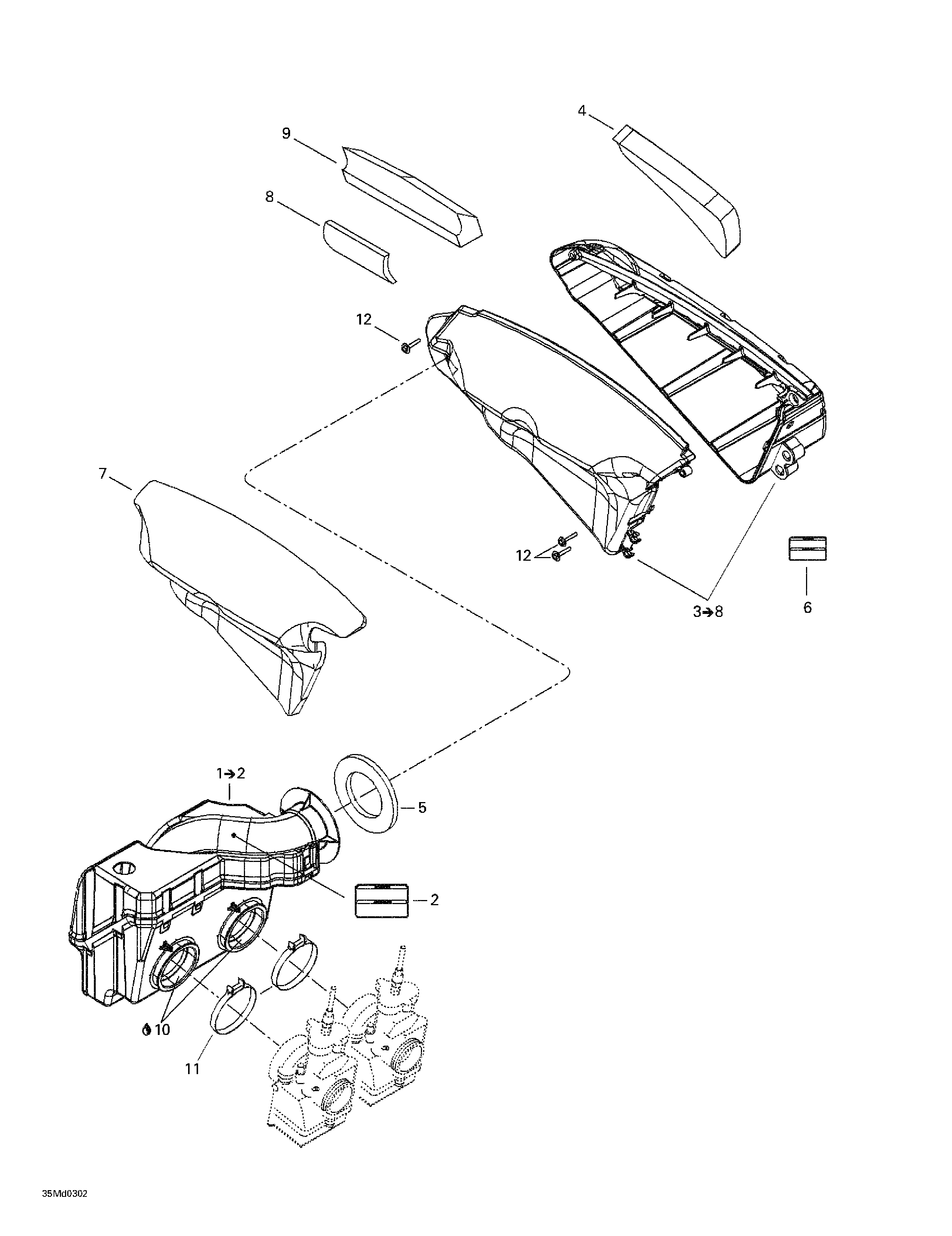

02- Air Intake System для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1508000308 Chamber ass'y. Includes 1 - 2.Chamber ass'y. Includes 1 - 2.
-
2516001191 Instruction labelInstruction label
-
3508000325 Chamber ass'y. Includes 3 - 8.Chamber ass'y. Includes 3 - 8.
-
4508000145 Inner foamInner foam
-
5508000199 Outer foamOuter foam
-
6516001191 Instruction labelInstruction label
-
7508000310 Outer foamOuter foam
-
8508000326 FoamFoam
-
9508000147 Air filterAir filter
-
10413803200 Injection oil (205 liter)Injection oil (205 liter)
-
12250000101 Screw M4 x 25Screw M4 x 25
