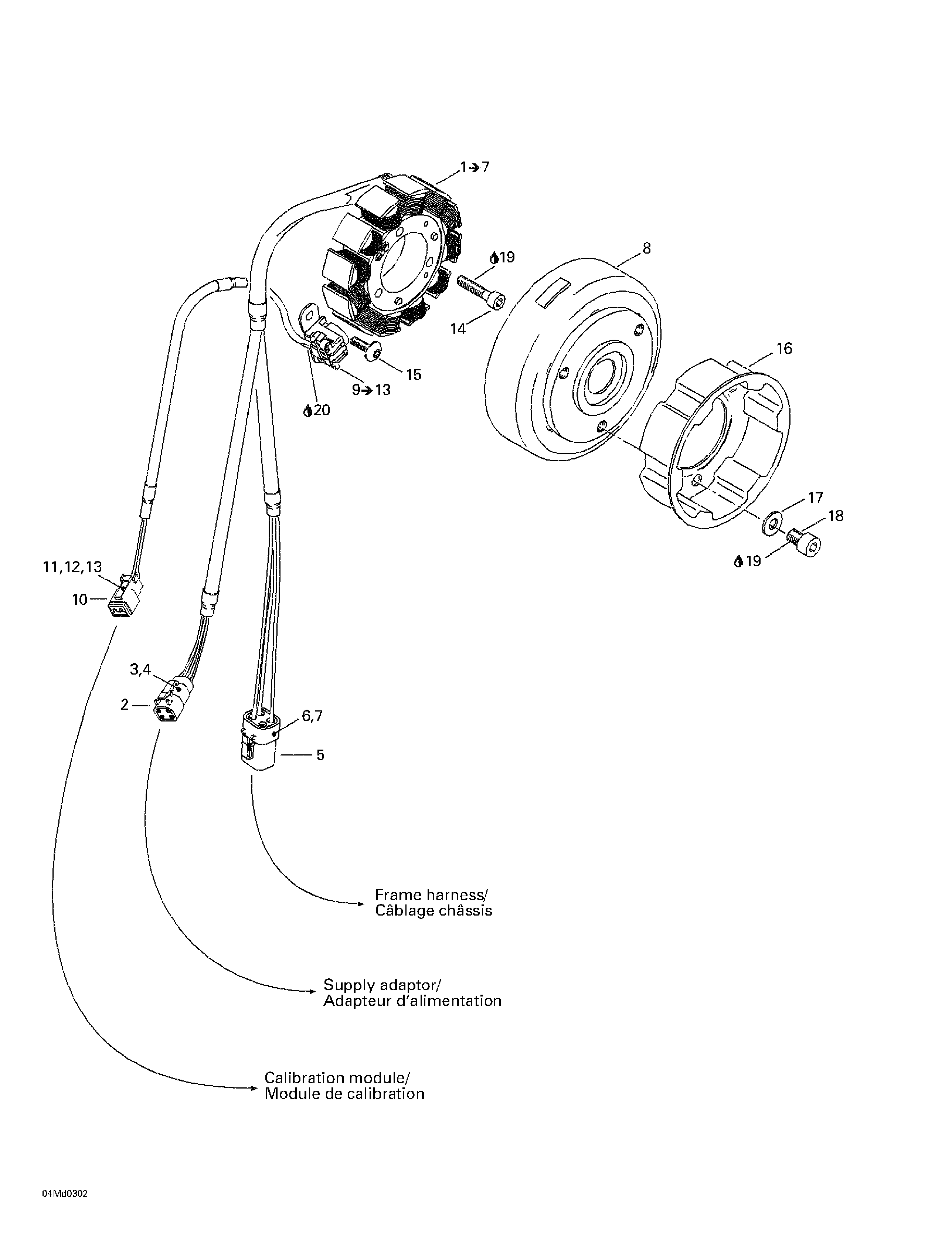

03- Magneto (12V, 290W) для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1410922952 Startor plate ass'y. Includes 1 - 7.Startor plate ass'y. Includes 1 - 7.
-
2515175245 Female terminal housing (4 circuits)Female terminal housing (4 circuits)
-
3409015100 Female terminalFemale terminal
-
4515175246 Female lock (4 circuits)Female lock (4 circuits)
-
5278001473 Female terminal housing (4 circuits)Female terminal housing (4 circuits)
-
6515175567 Female terminalFemale terminal
-
7278001474 Female lock (4 circuits)Female lock (4 circuits)
-
8410922954 FlywheelFlywheel
-
9410922955 Pick-up ass'y. Includes 9 - 13.Pick-up ass'y. Includes 9 - 13.
-
10409207300 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
11278000632 Female terminalFemale terminal
-
12278001661 Female terminalFemale terminal
-
13409207100 Female lock (2 circuits)Female lock (2 circuits)
-
14420840886 Socket head screw M6 x 30Socket head screw M6 x 30
-
15420640321 Screw M5 x 16Screw M5 x 16
-
16420852590 Pulley startingPulley starting
-
17420827405 Flat washer 8.1 mmFlat washer 8.1 mm
-
18420841520 Socket head screw M8 x 12Socket head screw M8 x 12
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
