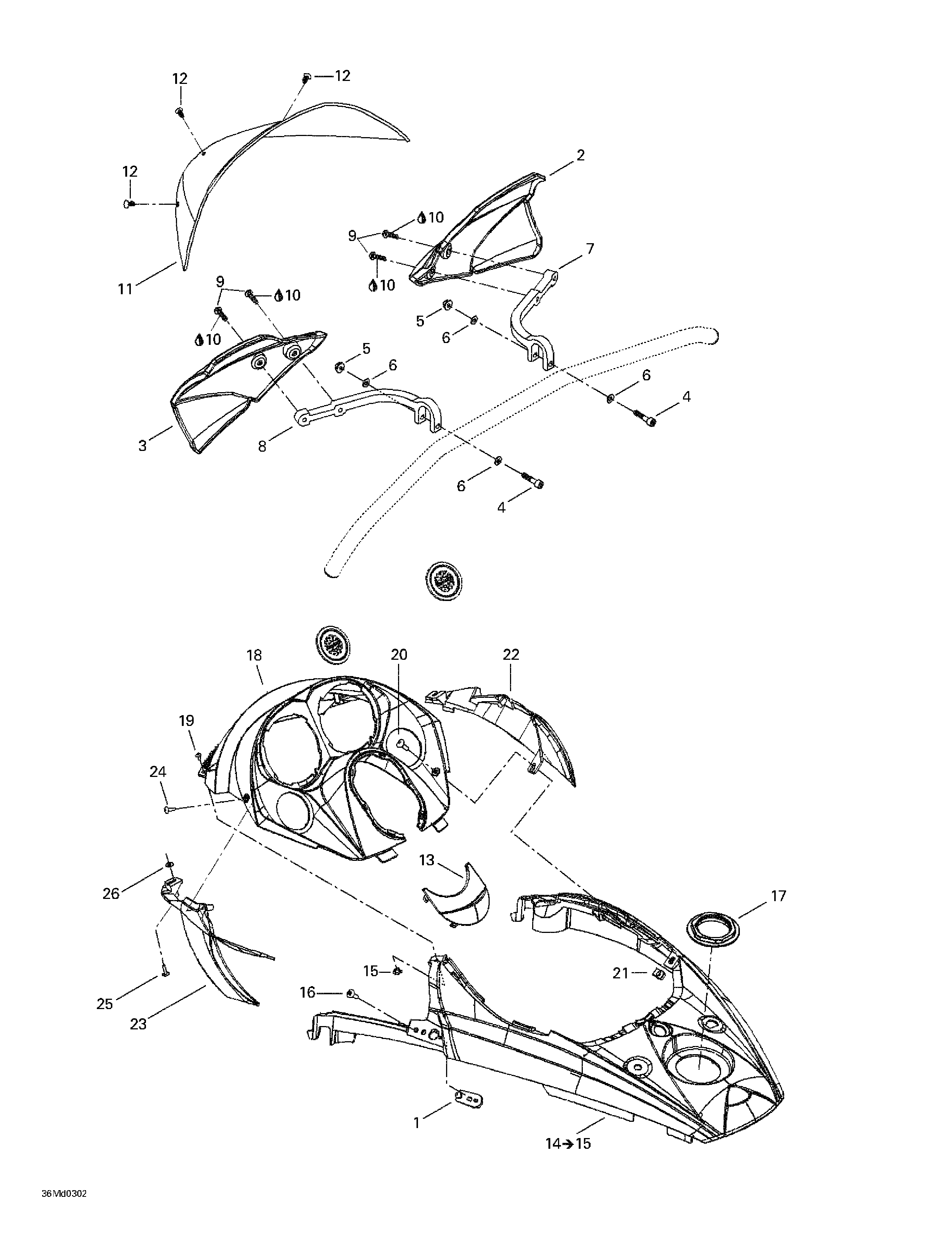

09- Windshield And Console для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1517302616 Hood latchHood latch
-
2517302677 R.h. air deflectorR.h. air deflector
-
3517302678 L.h. air deflectorL.h. air deflector
-
4205065060 Socket screw M6 x 50Socket screw M6 x 50
-
5232561600 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
6234061600 Washer M6Washer M6
-
7517302929 R.h. deflector supportR.h. deflector support
-
8517302931 L.h. deflector supportL.h. deflector support
-
9211000121 Screw M6 x 16Screw M6 x 16
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
11517302617 Low WindshieldLow Windshield
-
12414644300 Windshield DartWindshield Dart
-
13517302592 Console capConsole cap
-
14517302809 Center console. Includes 14 - 15.Center console. Includes 14 - 15.
-
15250100030 Nut type ''T'' M4Nut type ''T'' M4
-
16250000122 Screw M6 x 20Screw M6 x 20
-
17517302575 Console nutConsole nut
-
18517302935 Indicator supportIndicator support
-
19250000121 Screw M4 x 8Screw M4 x 8
-
20250000124 Screw M5 x 20Screw M5 x 20
-
21250000079 Pannel nut M5 x 0.8Pannel nut M5 x 0.8
-
22517302546 R.h. air deflector (console)R.h. air deflector (console)
-
23517302547 L.h. air deflector (console)L.h. air deflector (console)
-
24250000084 Screw K40 x 16Screw K40 x 16
-
25250000113 Plastite screw type K-40 M4 x 16Plastite screw type K-40 M4 x 16
-
26234042600 Flat washer M4Flat washer M4
