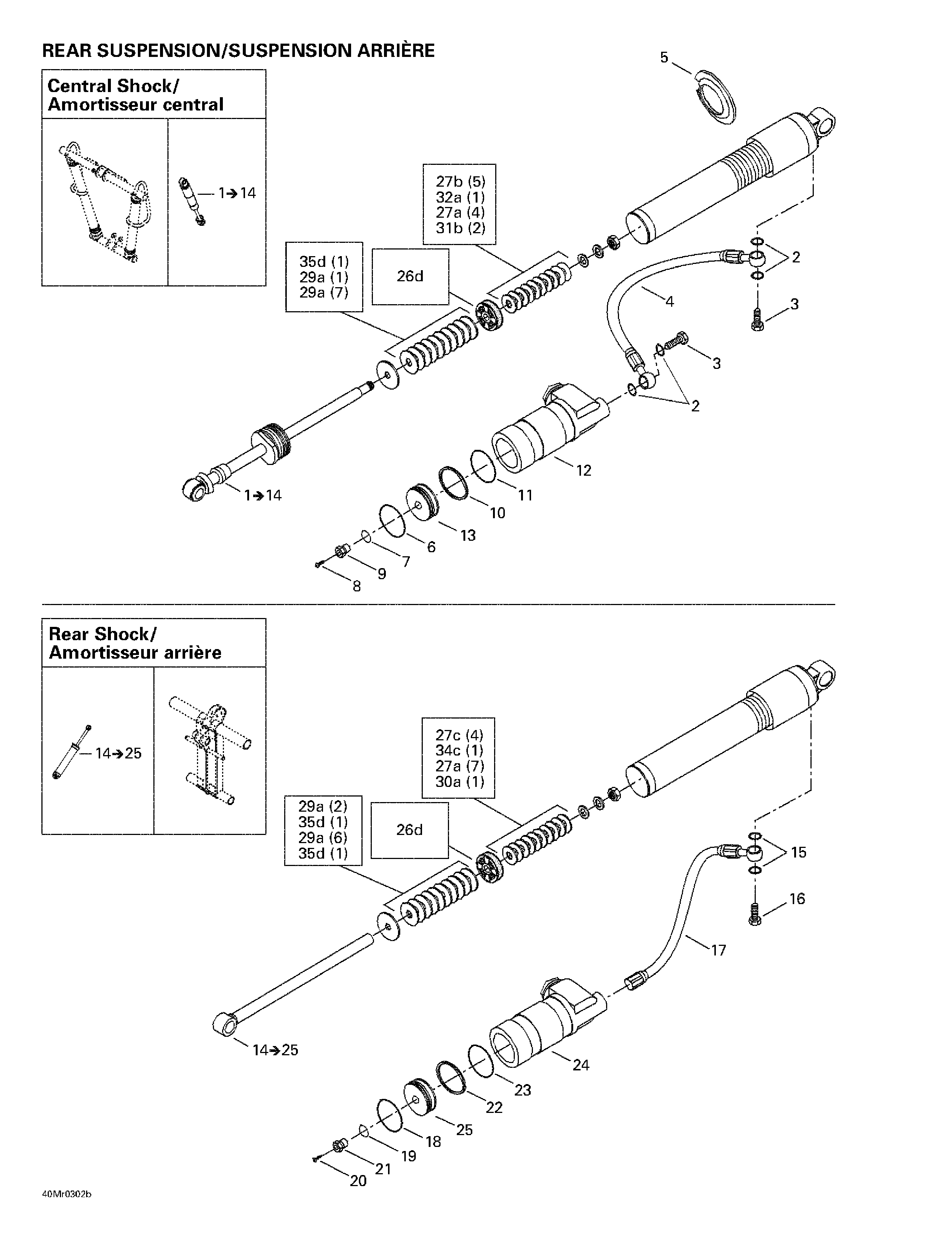

08- Rear Take Apart Shocks для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1503189972 Center shock. Includes 1 - 14.Center shock. Includes 1 - 14.
-
2415038700 O-ringO-ring
-
3415093810 BoltBolt
-
4415128595 Hose Ass'yHose Ass'y
-
5415128598 Spring CollarSpring Collar
-
6415093804 O-ringO-ring
-
7505070400 O-ringO-ring
-
8505070399 ScrewScrew
-
9505070398 Air ValveAir Valve
-
10415093806 Piston ringPiston ring
-
11415093807 O-ringO-ring
-
12415128596 ReservoirReservoir
-
14503189974 Rear shock. Includes 14 - 25.Rear shock. Includes 14 - 25.
-
15415038700 O-ringO-ring
-
16415093810 BoltBolt
-
17415128593 Hose Ass'yHose Ass'y
-
18415093804 O-ringO-ring
-
19505070400 O-ringO-ring
-
20505070399 ScrewScrew
-
21505070398 Air ValveAir Valve
-
22415093806 Piston ringPiston ring
-
23415093807 O-ringO-ring
-
24415128594 ReservoirReservoir
-
26a414888307 Piston (2 x 0.3-6) (C36)Piston (2 x 0.3-6) (C36)
-
26b414888306 Piston (2 x 0.3-4) (C36)Piston (2 x 0.3-4) (C36)
-
26c414888305 Piston (2 x 0.3-2) (C36)Piston (2 x 0.3-2) (C36)
-
26E414888304 Piston (C36)Piston (C36)
-
27a415039100 Leaf valve O30 x 0.254 (C36)Leaf valve O30 x 0.254 (C36)
-
27b414888318 Leaf valve O30 x 0.203 (C36)Leaf valve O30 x 0.203 (C36)
-
27C414888319 Leaf valve O30 x 0.152 (C36)Leaf valve O30 x 0.152 (C36)
-
28a414888320 Leaf valve O28 x 0.203 (C36)Leaf valve O28 x 0.203 (C36)
-
28b414888321 Leaf valve O28 x 0.152 (C36)Leaf valve O28 x 0.152 (C36)
-
29a415039000 Leaf valve O26 x 0.254 (C36)Leaf valve O26 x 0.254 (C36)
-
29b414888322 Leaf valve O26 x 0.203 (C36)Leaf valve O26 x 0.203 (C36)
-
29c414888323 Leaf valve O26 x 0.152 (C36)Leaf valve O26 x 0.152 (C36)
-
31a414888324 Leaf valve O22 x 0.203 (C36)Leaf valve O22 x 0.203 (C36)
-
31b414888325 Leaf valve O22 x 0.152 (C36)Leaf valve O22 x 0.152 (C36)
-
32a414888340 Leaf valve O21 x 0.114 (C36)Leaf valve O21 x 0.114 (C36)
-
33a414888326 Leaf valve O20 x 0.203 (C36)Leaf valve O20 x 0.203 (C36)
-
33b414888327 Leaf valve O20 x 0.152 (C36)Leaf valve O20 x 0.152 (C36)
-
33c414888328 Leaf valve O20 x 0.114 (C36)Leaf valve O20 x 0.114 (C36)
-
34a414888329 Leaf valve O18 x 0.203 (C36)Leaf valve O18 x 0.203 (C36)
-
34b414888330 Leaf valve O18 x 0.152 (C36)Leaf valve O18 x 0.152 (C36)
-
35a414888331 Leaf valve O16 x 0.254 (C36)Leaf valve O16 x 0.254 (C36)
-
35b414888332 Leaf valve O16 x 0.203 (C36)Leaf valve O16 x 0.203 (C36)
-
35c414888333 Leaf valve O16 x 0.152 (C36)Leaf valve O16 x 0.152 (C36)
-
35d415038900 Leaf valve O16 x 0.114 (C36)Leaf valve O16 x 0.114 (C36)
-
36a414888334 Leaf valve O15 x 0.254 (C36)Leaf valve O15 x 0.254 (C36)
-
36b414888335 Leaf valve O15 x 0.203 (C36)Leaf valve O15 x 0.203 (C36)
-
36c414888336 Leaf valve O15 x 0.152 (C36)Leaf valve O15 x 0.152 (C36)
-
36d414888337 Leaf valve O15 x 0.114 (C36)Leaf valve O15 x 0.114 (C36)
-
37a503189538 Leaf valve O12 x 0.254 (C36)Leaf valve O12 x 0.254 (C36)
-
37b414888338 Leaf valve O12 x 0.203 (C36)Leaf valve O12 x 0.203 (C36)
-
37c414888339 Leaf valve O12 x 0.152 (C36)Leaf valve O12 x 0.152 (C36)
-
37D415038800 Leaf valve O12 x 0.114 (C36)Leaf valve O12 x 0.114 (C36)
-
38293600035 Shock oil (not shown)Shock oil (not shown)
