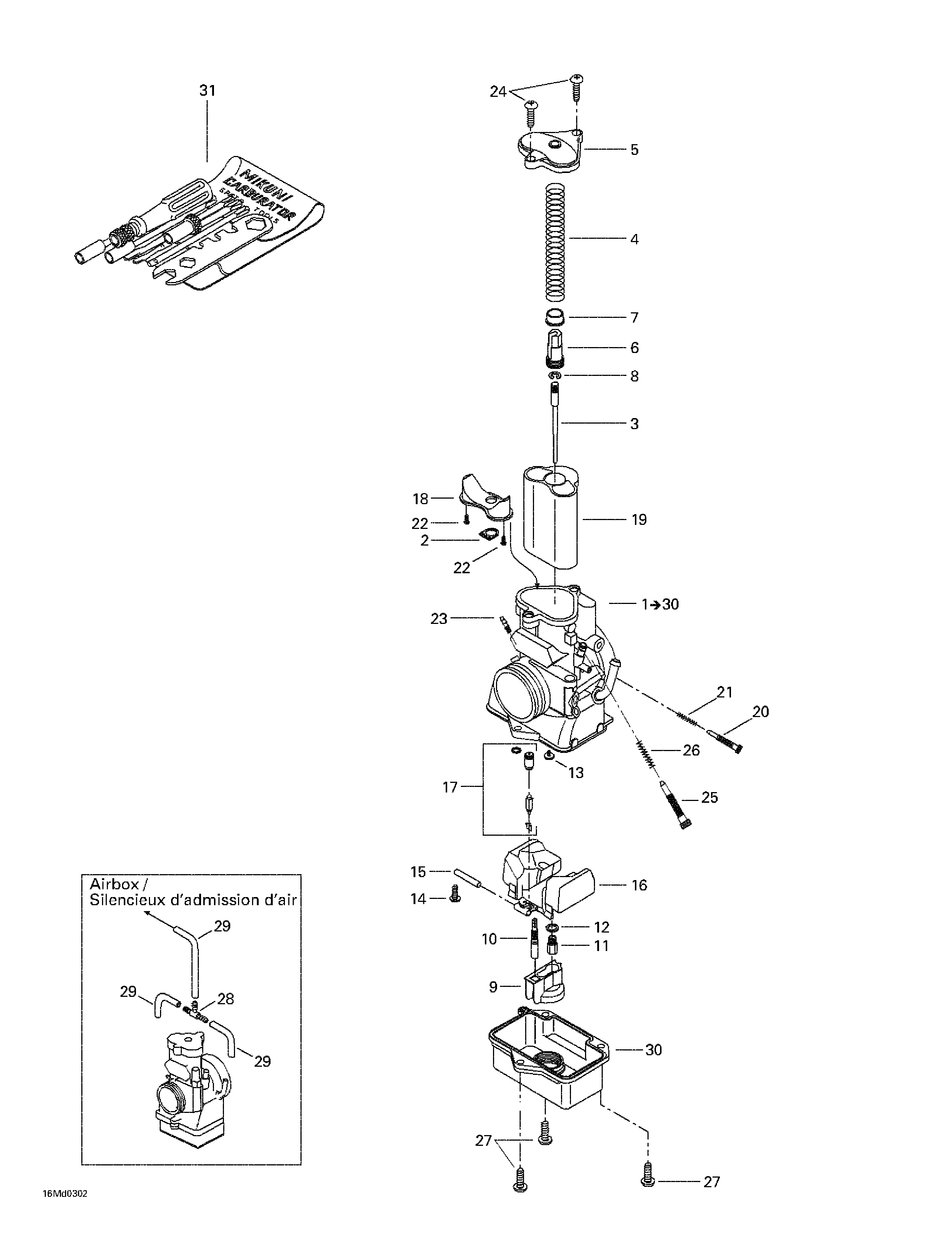

02- Carburetors для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1403138737 Carburetor TMX-34-23 (PTO). Includes 1 - 30.Carburetor TMX-34-23 (PTO). Includes 1 - 30.
-
403138738 Carburetor TMX-34-24 (MAG)Carburetor TMX-34-24 (MAG)
-
2404161865 PackingPacking
-
3404161872 Needle jet J8-6FIY04-59Needle jet J8-6FIY04-59
-
4404161864 SpringSpring
-
5404161857 CapCap
-
6404161856 Guide holderGuide holder
-
7404161863 RingRing
-
8404152200 E-ringE-ring
-
9404161855 HolderHolder
-
10404161870 Pilot jet PJ 25Pilot jet PJ 25
-
11404106400 Main jet MJ 390 (PTO)Main jet MJ 390 (PTO)
-
404106300 Main jet MJ 380 (MAG)Main jet MJ 380 (MAG)
-
12404161862 WasherWasher
-
13404161861 VisVis
-
14404138600 VisVis
-
15404161860 PinPin
-
16404161859 FloatFloat
-
17404161868 Needle valve 1.5Needle valve 1.5
-
18404161974 VenturyVentury
-
19404161867 Piston valve 4.0Piston valve 4.0
-
20404161866 AdjusterAdjuster
-
21404132400 SpringSpring
-
22404161852 ScrewScrew
-
23404153400 NippleNipple
-
24404138700 ScrewScrew
-
25404161850 AdjusterAdjuster
-
26404161849 SpringSpring
-
27404161848 ScrewScrew
-
28270500347 T'' fitting```T'' fitting```
-
29404161821 HoseHose
-
31404112000 Tool kitTool kit
