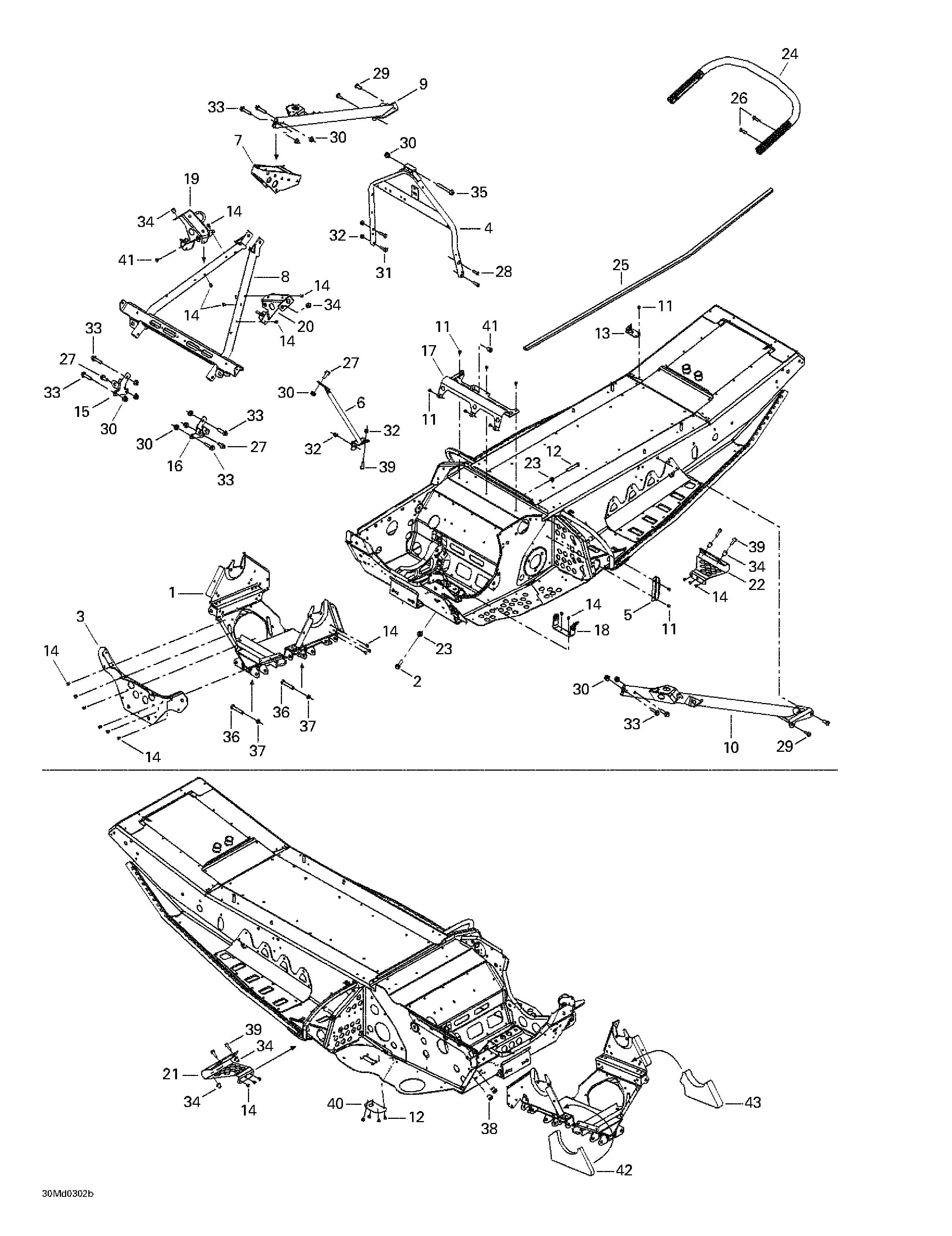

09- Frame - Front And Rear для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1518323579 Front cross-memberFront cross-member
-
2207151644 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
3518322166 Front plateFront plate
-
4518323394 Handle supportHandle support
-
6518323472 BraceBrace
-
7518322546 BracketBracket
-
8518323342 Upper cross-memberUpper cross-member
-
9518323352 R.H. memberR.H. member
-
10518323354 L.H. memberL.H. member
-
11390402200 Pop rivet 3/16''Pop rivet 3/16''
-
12390402400 Pop rivet 3/16''Pop rivet 3/16''
-
13518323274 Trunk BracketTrunk Bracket
-
14390909200 Rivet AvexRivet Avex
-
15518322461 R.H. shock bracketR.H. shock bracket
-
16518322462 L.H. shock bracketL.H. shock bracket
-
17518323463 Air intake supportAir intake support
-
18518322726 Belt guard bracketBelt guard bracket
-
19518323535 R.H. console supportR.H. console support
-
20518323536 L.H. console supportL.H. console support
-
21518323377 R.H. toe holdR.H. toe hold
-
22518323378 L.H. toe holdL.H. toe hold
-
23233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
24518322708 Rear bumperRear bumper
-
25518322344 ProtectorProtector
-
26207682044 Hex. flanged screw M8 x 20Hex. flanged screw M8 x 20
-
27207682044 Hex. flanged screw M8 x 20Hex. flanged screw M8 x 20
-
28205862044 Socket head screw M6 x 20 (Scotch Grip)Socket head screw M6 x 20 (Scotch Grip)
-
29250000117 Torx screw M8 x 20 (Scotch Grip)Torx screw M8 x 20 (Scotch Grip)
-
30233281414 Elastic flanged nut M8Elastic flanged nut M8
-
31207662544 Hex. flanged screw M6 x 25Hex. flanged screw M6 x 25
-
32233261414 Elastic flanged nut M6Elastic flanged nut M6
-
33207683544 Hex. flanged screw M8 x 35Hex. flanged screw M8 x 35
-
34415107300 InsertInsert
-
35207687044 Hex. flanged screw M8 x 70Hex. flanged screw M8 x 70
-
36207085044 Hex. screw M8 x 50Hex. screw M8 x 50
-
37232581414 Elastic stop nut M8Elastic stop nut M8
-
38293450166 InsertInsert
-
39207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
40518323506 PlatePlate
-
41293450232 InsertInsert
-
42518323453 FoamFoam
-
43518323007 FoamFoam
