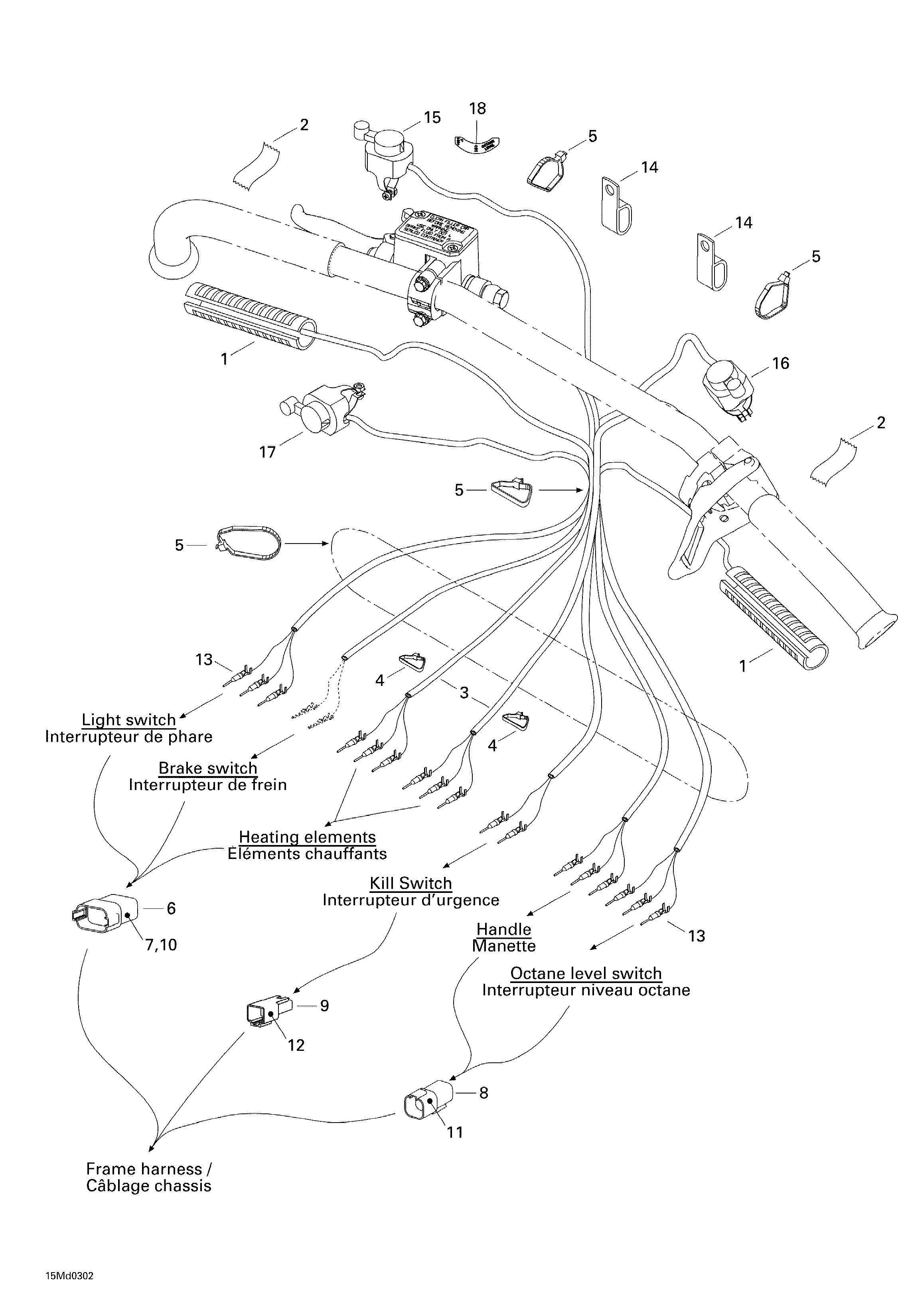

07- Steering System для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1515175891 HeaterHeater
-
2293740005 Vinyl tape 3/4''Vinyl tape 3/4''
-
3515175332 Vinyl tubingVinyl tubing
-
4293750001 Tie-rap 94 mmTie-rap 94 mm
-
5414115200 Tie-rapTie-rap
-
6515175669 Male terminal housing (12 circuits)Male terminal housing (12 circuits)
-
7293000052 Sealing capSealing cap
-
8515175668 Female terminal housing (6 circuits)Female terminal housing (6 circuits)
-
9515175665 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
11278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
12409207500 Male lock (2 circuits)Male lock (2 circuits)
-
13515175768 Male terminalMale terminal
-
14515175980 Open clampOpen clamp
-
15515175684 Dimmer switch. C/UDimmer switch. C/U
-
16515175685 Kill switchKill switch
-
17515175684 Dimmer switchDimmer switch
-
18516001729 DecalDecal
