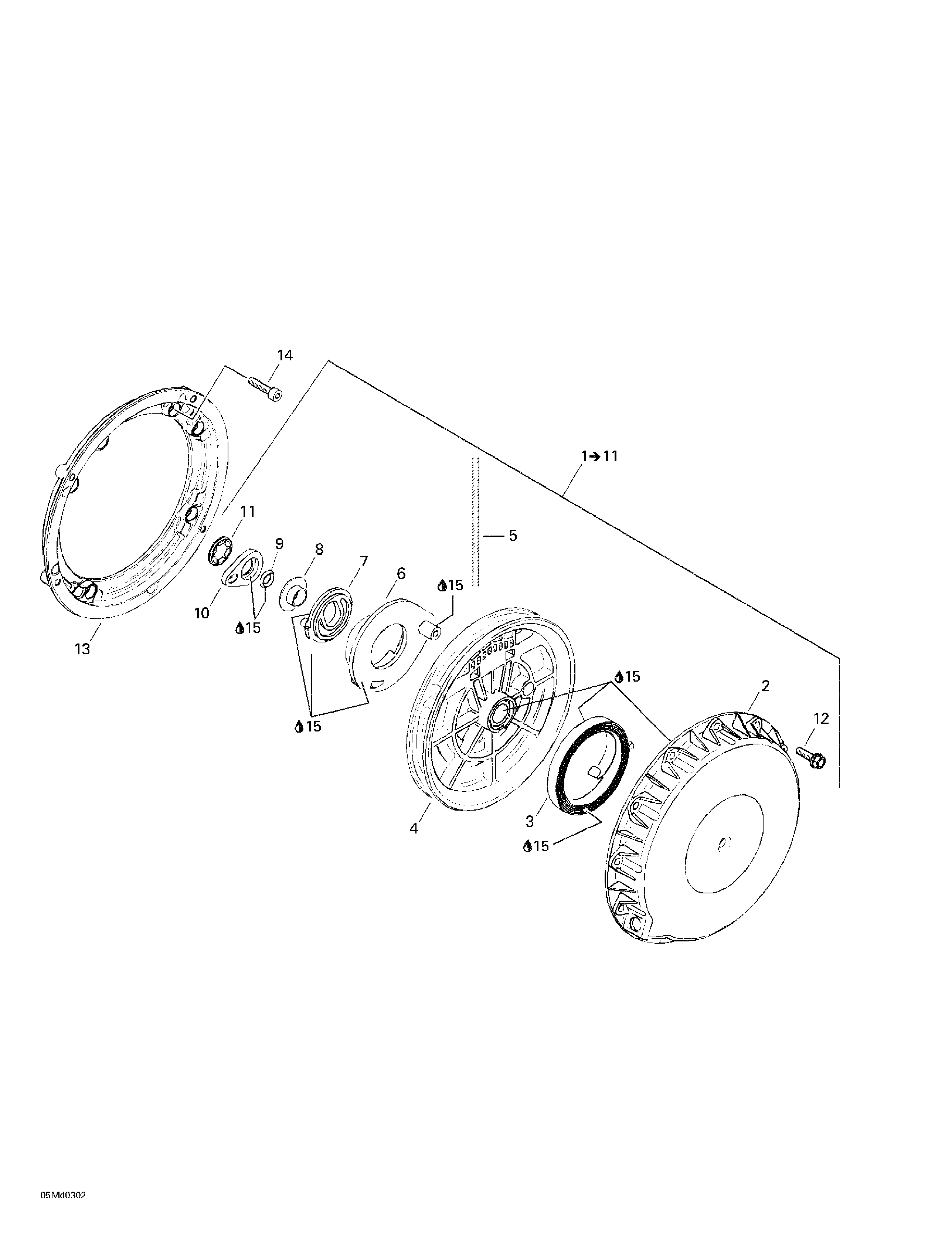

04- Rewind Starter для BRP Ski-Doo MX Z X 440 - 2003
-
№АртикулНазвание
-
1420889763 Rewind Starter ass'y. Includes 1 - 11.Rewind Starter ass'y. Includes 1 - 11.
-
2420811404 Starter housingStarter housing
-
3420939115 Rewind Spring ass'yRewind Spring ass'y
-
4420852286 Rope sheaveRope sheave
-
5412500200 Starter rope 2200 mmStarter rope 2200 mm
-
6420852297 PawlPawl
-
7420852305 Pawl lockPawl lock
-
8420847925 SleeveSleeve
-
9420250400 O-ringO-ring
-
10420852520 Lock ringLock ring
-
11420845560 Locking ElementLocking Element
-
12420941256 Hex. screw M6 x 30Hex. screw M6 x 30
-
13420810865 FlangeFlange
-
14420241236 Socket head screw M6 x 16Socket head screw M6 x 16
-
15420899763 Molykote PG54, 10 gMolykote PG54, 10 g
