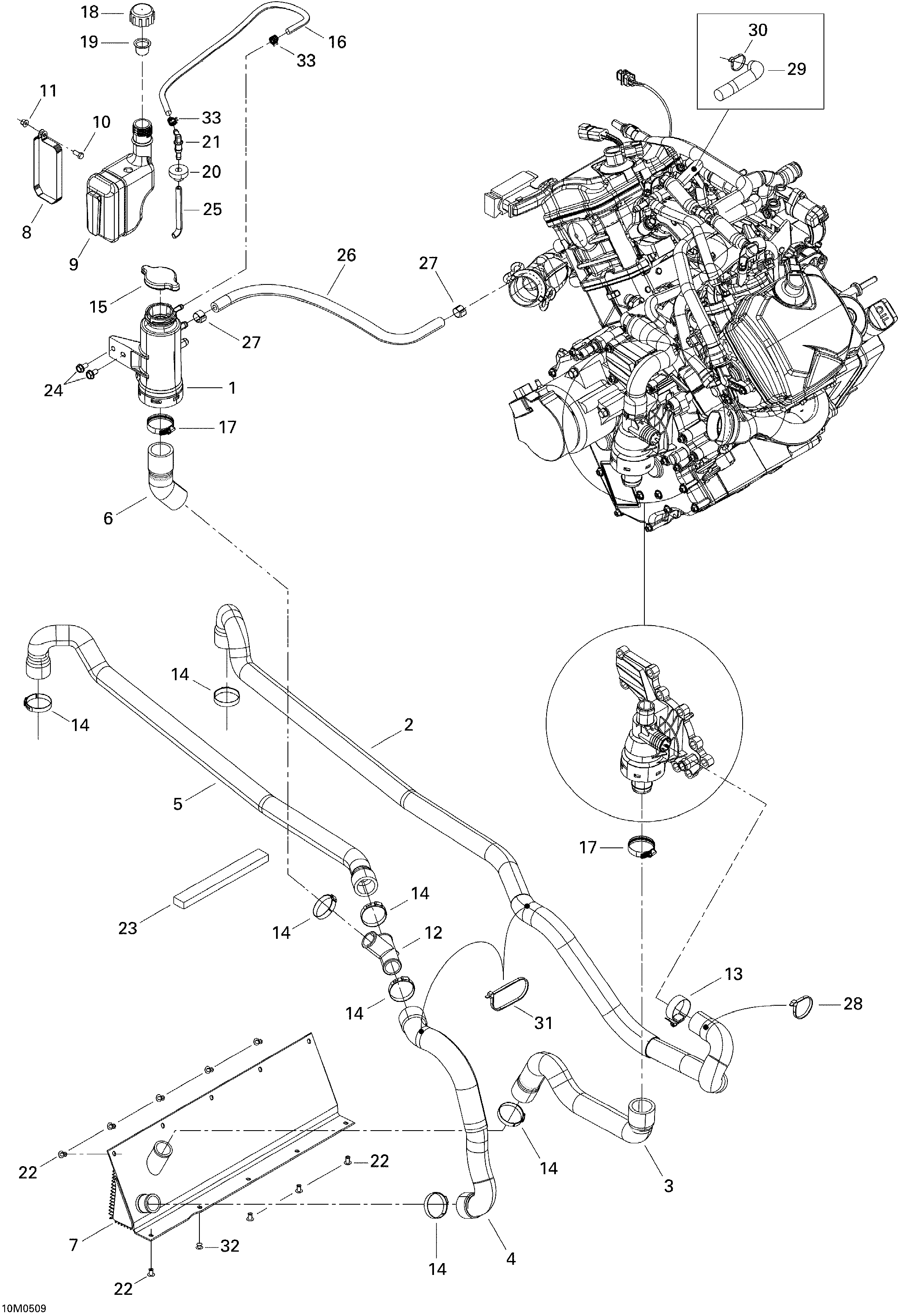

01- Cooling System для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1509000176 Filler Neck Ass'YFiller Neck Ass'Y
-
2509000103 Outlet HoseOutlet Hose
-
3509000104 Inlet HoseInlet Hose
-
4509000193 Front Hose RadiatorFront Hose Radiator
-
5509000105 Rear Hose RadiatorRear Hose Radiator
-
6509000195 Tank HoseTank Hose
-
7509000146 Front RadiatorFront Radiator
-
8509000191 Coolant Tank SupportCoolant Tank Support
-
9709200099 Coolant TankCoolant Tank
-
10207151244 Hex Screw M5 X 12Hex Screw M5 X 12
-
11233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
12509000219 T-FittingT-Fitting
-
13408800400 Tridon Gear ClampTridon Gear Clamp
-
14509000045 Oetiker Gear ClampOetiker Gear Clamp
-
15509000180 Pressure CapPressure Cap
-
16415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
17293650045 Tridon Gear ClampTridon Gear Clamp
-
18709200009 Tank CapTank Cap
-
19709200034 Unsplash CapUnsplash Cap
-
20570135100 GrommetGrommet
-
21414580600 Elbow Male ConnectorElbow Male Connector
-
22390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
23293200003 SealSeal
-
24210261280 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
25415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
26509000304 Return HoseReturn Hose
-
27293650125 Oetiker Gear ClampOetiker Gear Clamp
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29415080000 Tubing 16 mmTubing 16 mm
-
30293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
31293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
32390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
33414554800 Spring ClampSpring Clamp
