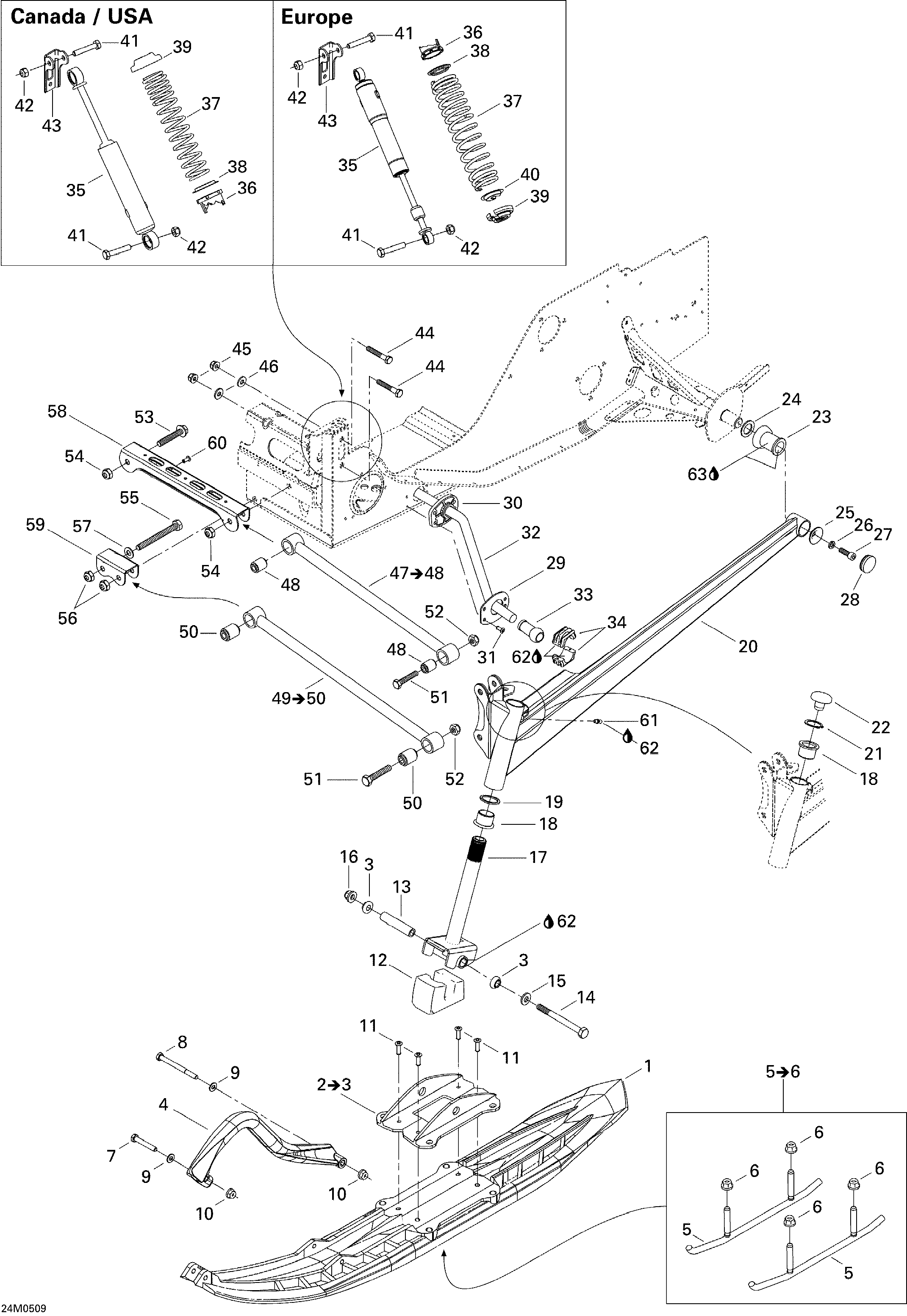

07- Front Suspension And Ski для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1505070727 Precision Ski (Black)Precision Ski (Black)
-
2505070764 Bridge Ass'Y. Includes 2 to 3Bridge Ass'Y. Includes 2 to 3
-
3505070001 BushingBushing
-
4505070963 Handle (Black)Handle (Black)
-
5860504900 Carbide Runner Kit. Includes 5 to 6Carbide Runner Kit. Includes 5 to 6
-
6233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
7207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
8207089044 Hex Screw M8 X 90Hex Screw M8 X 90
-
9234081410 Flat Washer M8Flat Washer M8
-
10233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
11293150090 Pop Rivet 1/4''Pop Rivet 1/4''
-
12506151233 Ski StopperSki Stopper
-
13506133300 SpacerSpacer
-
14250000001 Hex Screw M10 X 110Hex Screw M10 X 110
-
15732900049 WasherWasher
-
16732610084 Flanged Nut M10Flanged Nut M10
-
17506151234 Ski LegSki Leg
-
18505070003 CushionCushion
-
19505070004 WasherWasher
-
20505070645 RH ArmRH Arm
-
20505070646 LH ArmLH Arm
-
21371910400 CirclipCirclip
-
22572091300 CapCap
-
23570062200 DamperDamper
-
24503146700 WasherWasher
-
25506115800 CupCup
-
26234181401 Lock Washer M8Lock Washer M8
-
27205582544 Socket Head Screw M8 X 25 (scotch Grip)Socket Head Screw M8 X 25 (scotch Grip)
-
28572045900 CapCap
-
29505070542 PlatePlate
-
30505070139 BushingBushing
-
31390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
32505071208 StabilisatorStabilisator
-
33505070819 Ball JointBall Joint
-
34505070817 Sliding BlockSliding Block
-
35505070994 Front Shock. Canada / United StatesFront Shock. Canada / United States
-
35505071311 Front Shock Ass'Y. EuropeFront Shock Ass'Y. Europe
-
36503183700 Cam. Canada / United StatesCam. Canada / United States
-
36505070150 Cam 45°. EuropeCam 45°. Europe
-
37505071129 SpringSpring
-
38503187500 Spring Guide. Canada / United StatesSpring Guide. Canada / United States
-
38517184300 Spring Guide. EuropeSpring Guide. Europe
-
39503140600 Spring StopperSpring Stopper
-
40503141600 Cap. EuropeCap. Europe
-
41207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
42233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
43518317518 RH Shock BracketRH Shock Bracket
-
43518317519 LH Shock BracketLH Shock Bracket
-
44250000082 Hex Screw With Nylon M8 X 50Hex Screw With Nylon M8 X 50
-
45233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
46506151245 WasherWasher
-
47505071210 Upper Arm Ass'Y. Includes 47 to 48Upper Arm Ass'Y. Includes 47 to 48
-
48505070025 BushingBushing
-
49505071211 Lower Arm Ass'Y. Includes 49 to 50Lower Arm Ass'Y. Includes 49 to 50
-
50505070025 BushingBushing
-
51207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
52233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
53207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
54233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
55207009544 Hex Screw M10 X 95Hex Screw M10 X 95
-
56233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
57234001410 Flat Washer 10 mmFlat Washer 10 mm
-
58505070010 Upper Arm BracketUpper Arm Bracket
-
59505070011 Lower Arm BracketLower Arm Bracket
-
60390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
61408200700 Grease FittingGrease Fitting
-
62219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
63293550030 Grease, Super LubeGrease, Super Lube
