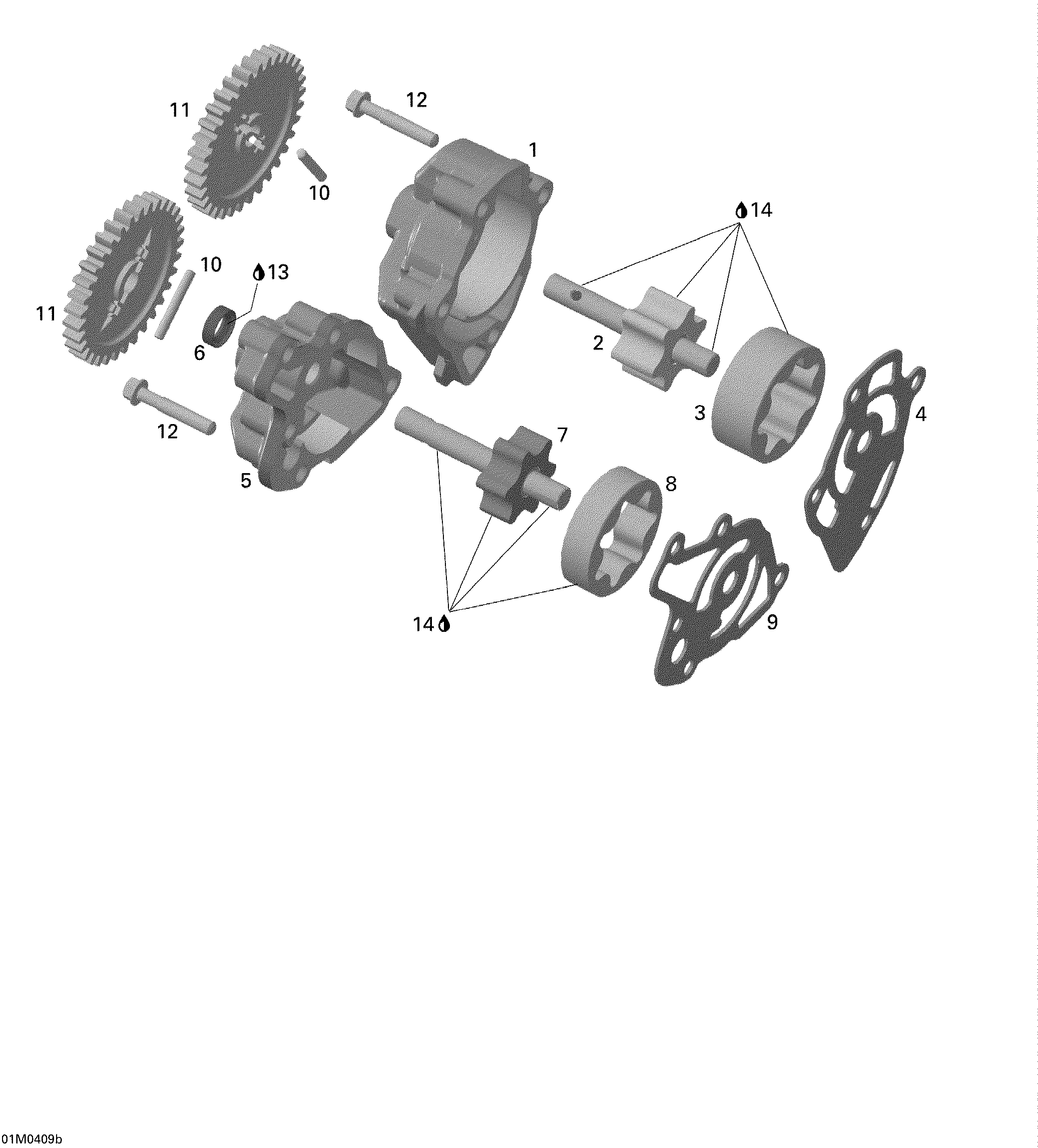

01- Oil Pump для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1420811690 Oil Pump CoverOil Pump Cover
-
2420837499 Oil Pump ShaftOil Pump Shaft
-
3420856455 Outer Rotor (20 mm)Outer Rotor (20 mm)
-
4420926325 Intermediate PlateIntermediate Plate
-
5420811680 Oil Pump CoverOil Pump Cover
-
6420931142 Oil SealOil Seal
-
7420837494 Oil Pump ShaftOil Pump Shaft
-
8420856445 Outer Rotor (14 mm)Outer Rotor (14 mm)
-
9420926320 Intermediate PlateIntermediate Plate
-
10420232430 Needle PinNeedle Pin
-
11420834470 Oil Pump Gear (33 Teeth)Oil Pump Gear (33 Teeth)
-
12420440272 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
13293550030 Grease, Super LubeGrease, Super Lube
-
14293600054 Engine Oil 4 Strokes, Ow40, 12 X 1 LiterEngine Oil 4 Strokes, Ow40, 12 X 1 Liter
