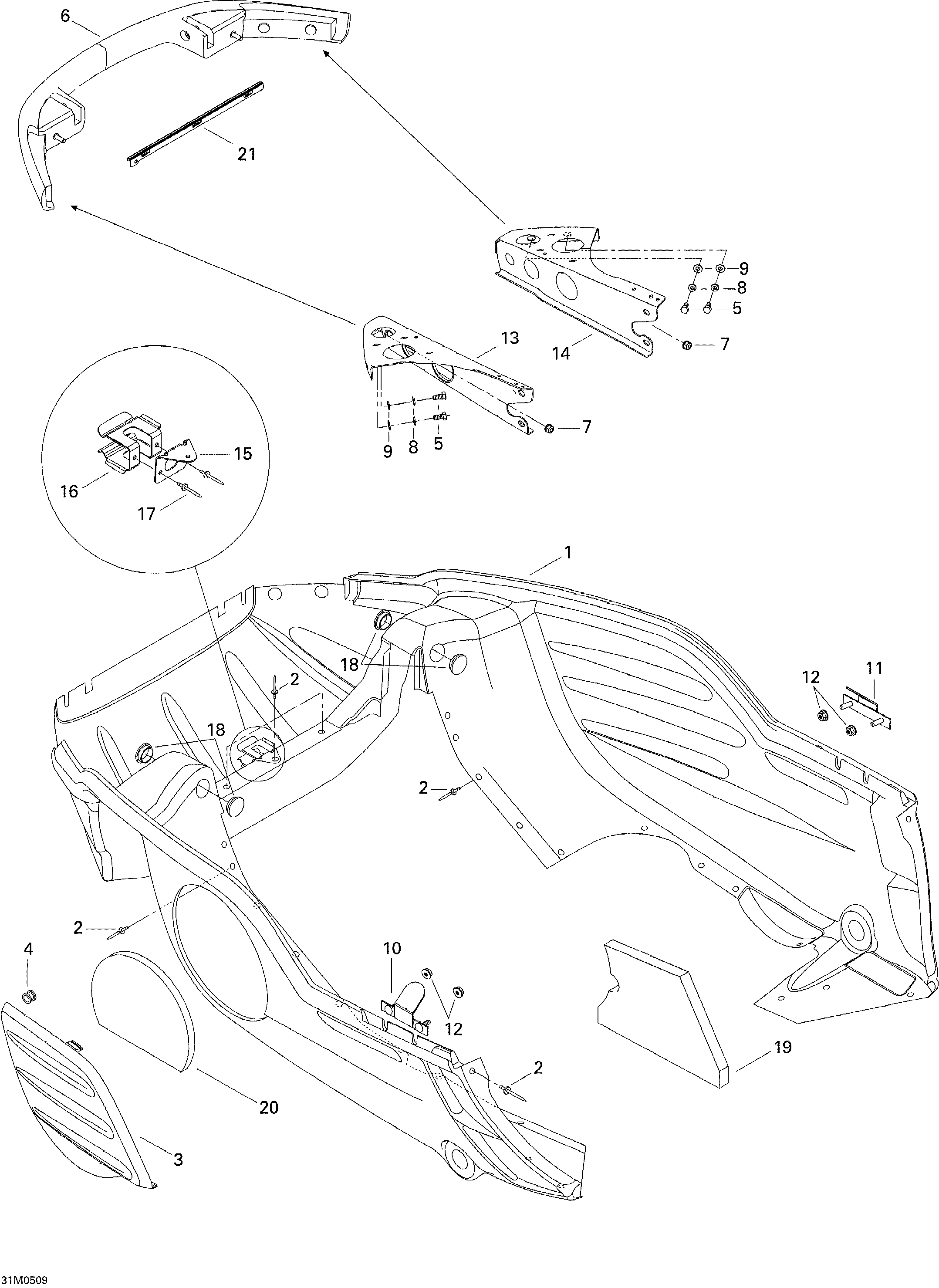

09- Bottom Pan для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1502006633 Bottom Pan (Black (B-160))Bottom Pan (Black (B-160))
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3502006506 Bottom Pan Door (Black (B-160))Bottom Pan Door (Black (B-160))
-
4414036300 GrommetGrommet
-
5207161444 Hex Screw M6 X 14Hex Screw M6 X 14
-
6502006719 Bumper (Black)Bumper (Black)
-
7233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
8234161471 Lock Washer 6 mmLock Washer 6 mm
-
9224061121 Flat WasherFlat Washer
-
10502006645 LH BracketLH Bracket
-
11502006685 RH BracketRH Bracket
-
12233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
13502006597 LH SupportLH Support
-
14502006602 RH SupportRH Support
-
15502006599 Belt SupportBelt Support
-
16517281905 BracketBracket
-
17390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
18414916600 Nylon CapNylon Cap
-
19502006558 Bottom FoamBottom Foam
-
20502006559 Bottom Pan Door FoamBottom Pan Door Foam
-
21502006647 Bottom Pan ReinforcementBottom Pan Reinforcement
