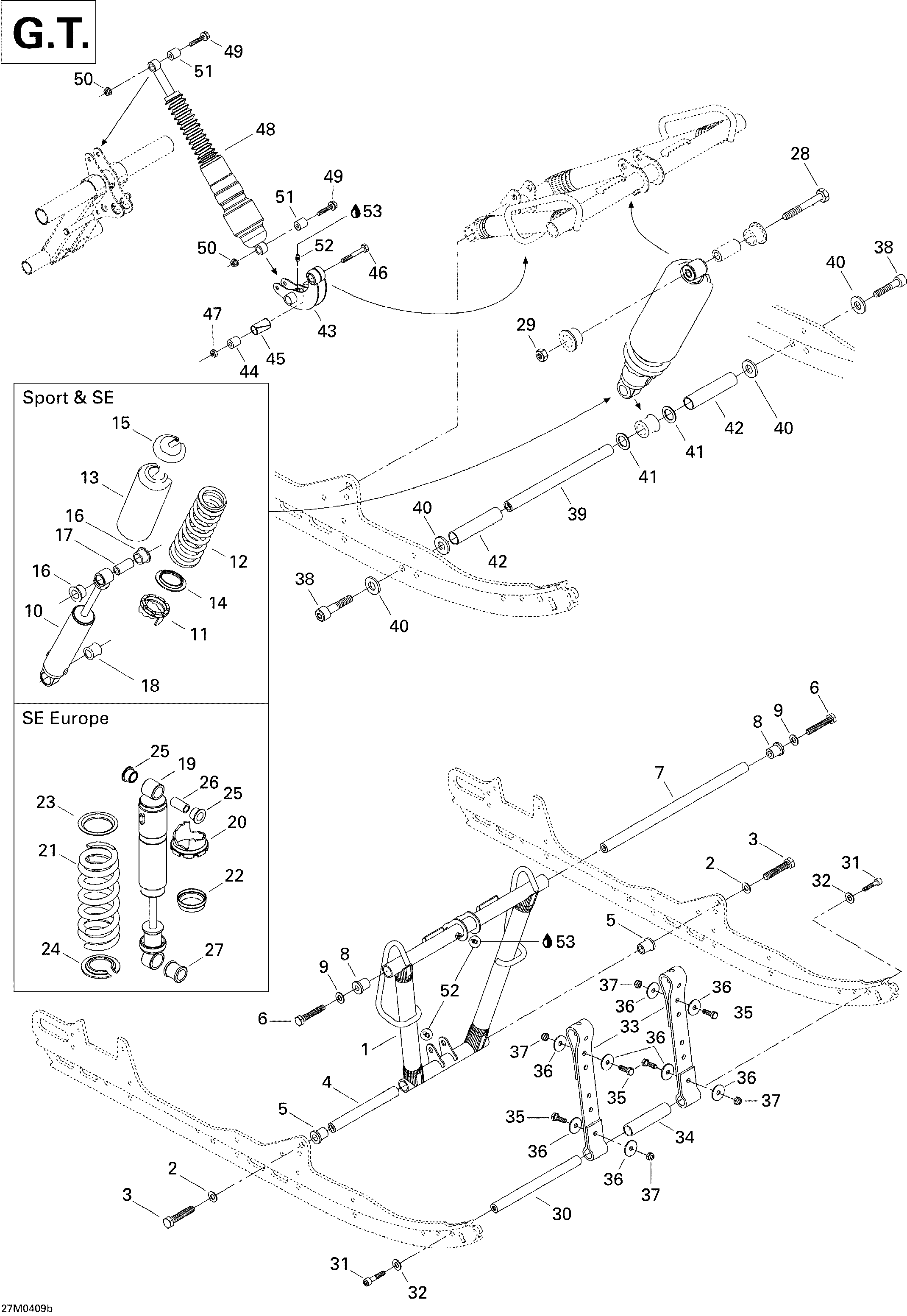

08- Front Arm GT для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1503189292 Front ArmFront Arm
-
2503189276 WasherWasher
-
3207226044 Hex Screw M12 X 60 (Scotch Grip)Hex Screw M12 X 60 (Scotch Grip)
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207205544 Hex Screw M10 X 55 (Scotch Grip)Hex Screw M10 X 55 (Scotch Grip)
-
7503190387 ShaftShaft
-
8503189324 CushionCushion
-
9732900049 WasherWasher
-
10503190208 Center Shock. Sport & SECenter Shock. Sport & SE
-
11505070150 Cam 45°Cam 45°
-
12503189659 SpringSpring
-
13503188930 ProtectorProtector
-
14517184300 Spring GuideSpring Guide
-
15503140600 Spring StopperSpring Stopper
-
16503189117 CushionCushion
-
17503189282 BushingBushing
-
18503189271 CushionCushion
-
19503190452 Center Shock. Se EuropeCenter Shock. Se Europe
-
20505070150 Cam 45°Cam 45°
-
21503189659 SpringSpring
-
22503190252 ProtectorProtector
-
23517184300 Spring GuideSpring Guide
-
24503189912 Spring StopperSpring Stopper
-
25503189117 CushionCushion
-
26503189282 BushingBushing
-
27503189271 CushionCushion
-
28207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
29233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
30503189562 AxleAxle
-
31205503544 Socket Head Screw M10 X 35 (scotch Grip)Socket Head Screw M10 X 35 (scotch Grip)
-
32503189564 WasherWasher
-
33503190782 Stopper StrapStopper Strap
-
34503189265 SpacerSpacer
-
35207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
36224081301 Flat WasherFlat Washer
-
37232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
38205523544 Socket Head Screw M12 X 35 (scotch Grip)Socket Head Screw M12 X 35 (scotch Grip)
-
39503189272 Center Shock ShaftCenter Shock Shaft
-
40503189276 WasherWasher
-
41503189273 WasherWasher
-
42503189274 SpacerSpacer
-
43503189845 RockerRocker
-
44503189388 Rocker AxleRocker Axle
-
45503189626 CushionCushion
-
46207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
47233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
48503190005 Rear Shock. SE EuropeRear Shock. SE Europe
-
48503190005 Rear Shock. SERear Shock. SE
-
48503190224 Rear Shock. SportRear Shock. Sport
-
49207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
50233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
51414936000 CushionCushion
-
52408200700 Grease FittingGrease Fitting
-
53219700417 Synthetic Grease, 400gSynthetic Grease, 400g
