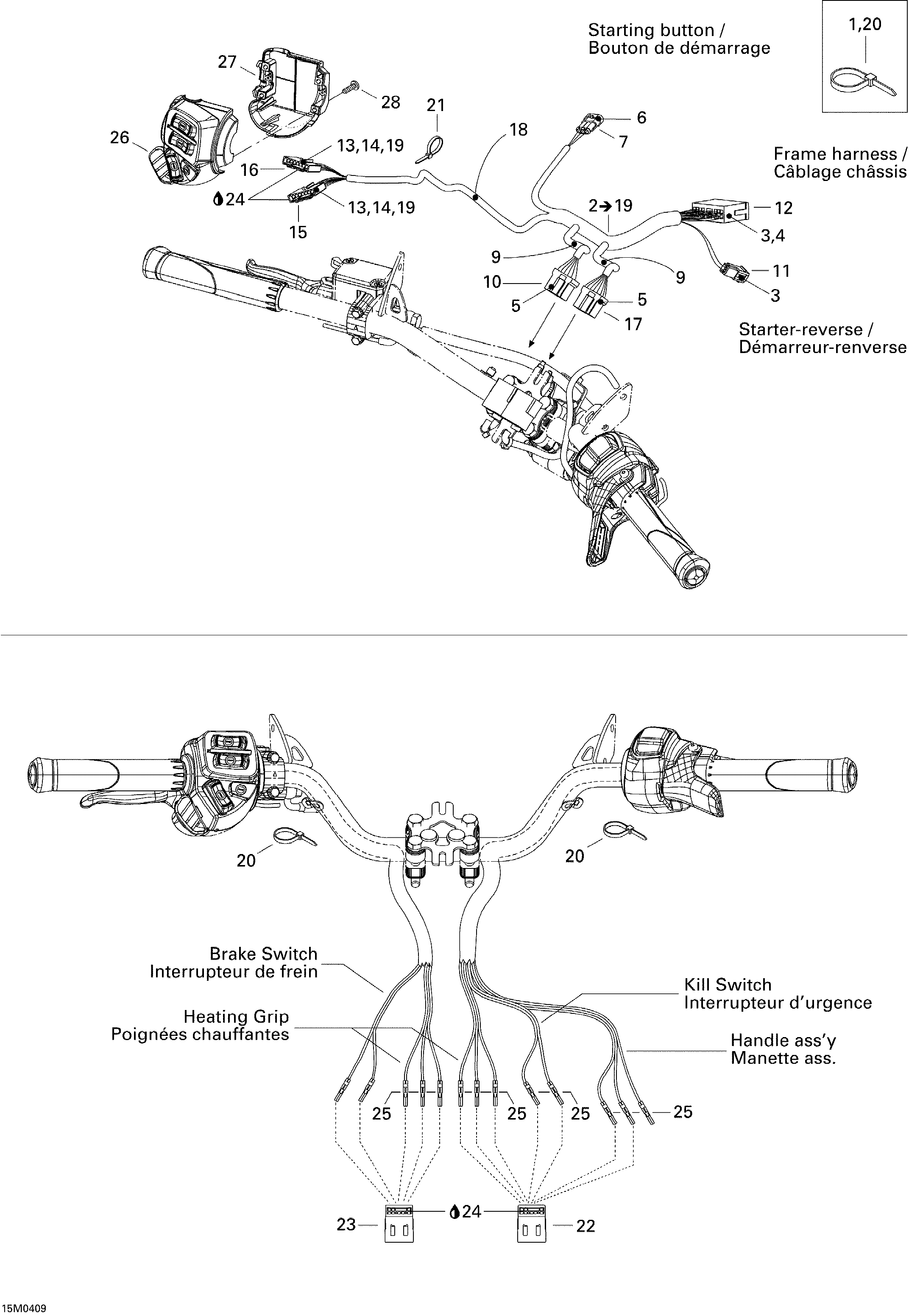

10- Steering harness для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2515176067 Steering Harness. Sport Models / Includes 2 to 19Steering Harness. Sport Models / Includes 2 to 19
-
2515176068 Steering Harness. SE Models / Includes 2 to 19Steering Harness. SE Models / Includes 2 to 19
-
3515175232 Male TerminalMale Terminal
-
4515175273 Male TerminalMale Terminal
-
5515175231 Female TerminalFemale Terminal
-
6409012900 Male TerminalMale Terminal
-
7710000568 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
8278001013 SealSeal
-
9415079900 Tubing 10 mmTubing 10 mm
-
10515175543 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
11515175654 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
12515175720 Male Terminal Housing (11 Circuit)Male Terminal Housing (11 Circuit)
-
13515175808 Female TerminalFemale Terminal
-
14515175809 Femelle Lock (8 Circuits)Femelle Lock (8 Circuits)
-
15515175807 Female Terminal Housing (8 Circuits)Female Terminal Housing (8 Circuits)
-
16515175810 Female Terminal Housing (8 Circuits)Female Terminal Housing (8 Circuits)
-
17515175819 Female Terminal Housing (8 Circuits)Female Terminal Housing (8 Circuits)
-
18515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
19515175941 Female TerminalFemale Terminal
-
20414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
22515175817 Male Terminal Housing (8 Circuits)Male Terminal Housing (8 Circuits)
-
23515175662 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
25515175232 Male TerminalMale Terminal
-
26515176015 LH Housing SwitchLH Housing Switch
-
27515175926 Housing Switch PlateHousing Switch Plate
-
28250000100 ScrewScrew
