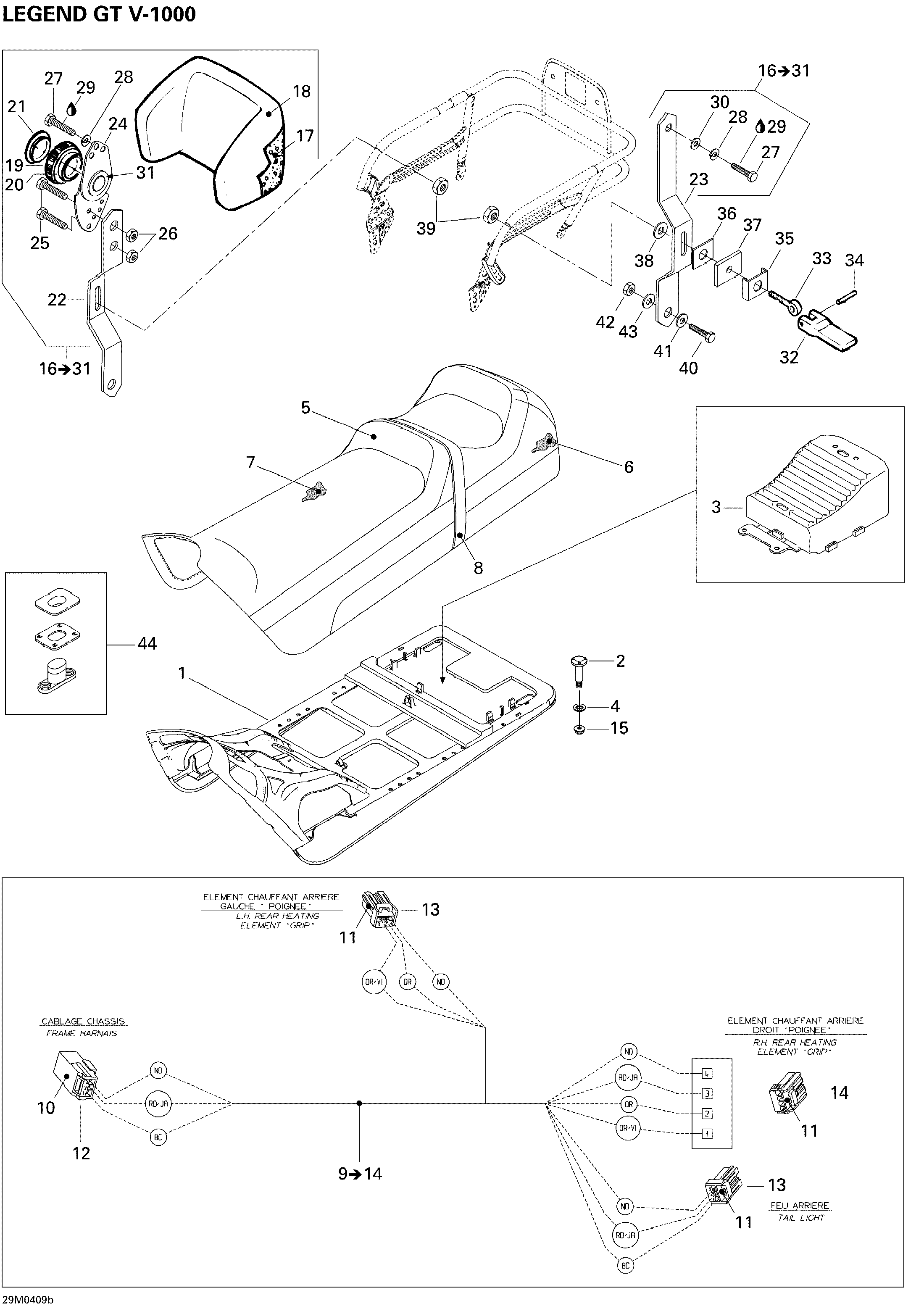

09- Seat GT для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1510003739 Sub-SeatSub-Seat
-
2732601221 «T» Bolt«T» Bolt
-
3510003751 Rear TrunkRear Trunk
-
4732610072 Push NutPush Nut
-
5510004086 Seat Cover (Black). Sport / SE (B-160)Seat Cover (Black). Sport / SE (B-160)
-
5510004092 Seat Cover (autumn Red). SE (M-549)Seat Cover (autumn Red). SE (M-549)
-
6510003741 Seat Foam (Side)Seat Foam (Side)
-
7510004267 Seat FoamSeat Foam
-
8510003753 Seat BeltSeat Belt
-
10515175232 Male TerminalMale Terminal
-
11515175231 Female TerminalFemale Terminal
-
12515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
13515175495 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
15233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
16510004093 Backrest Ass'Y. Includes 16 to 31Backrest Ass'Y. Includes 16 to 31
-
17414821200 Backrest FoamBackrest Foam
-
18510004094 Backrest CoverBackrest Cover
-
19414820900 Tiller HandleTiller Handle
-
20415015500 StripStrip
-
21414821000 CapCap
-
22517296400 RH ArmRH Arm
-
23517296500 LH ArmLH Arm
-
24414813300 ReclinerRecliner
-
25207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
26232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
27207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
28234181401 Lock Washer M8Lock Washer M8
-
29293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
30224081201 Flat WasherFlat Washer
-
31517250500 CapCap
-
32572038200 Lock LeverLock Lever
-
33517250100 Eye BoltEye Bolt
-
34414821400 PinPin
-
35517257300 GuideGuide
-
36517251300 SpacerSpacer
-
37570027400 Rubber ShimRubber Shim
-
38414819500 WasherWasher
-
39517250000 NutNut
-
40207182584 Hex Screw M8 X 25Hex Screw M8 X 25
-
41234081670 Flat Washer 8 mmFlat Washer 8 mm
-
42232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
43414819600 WasherWasher
-
44414728000 Seat BuckleSeat Buckle
