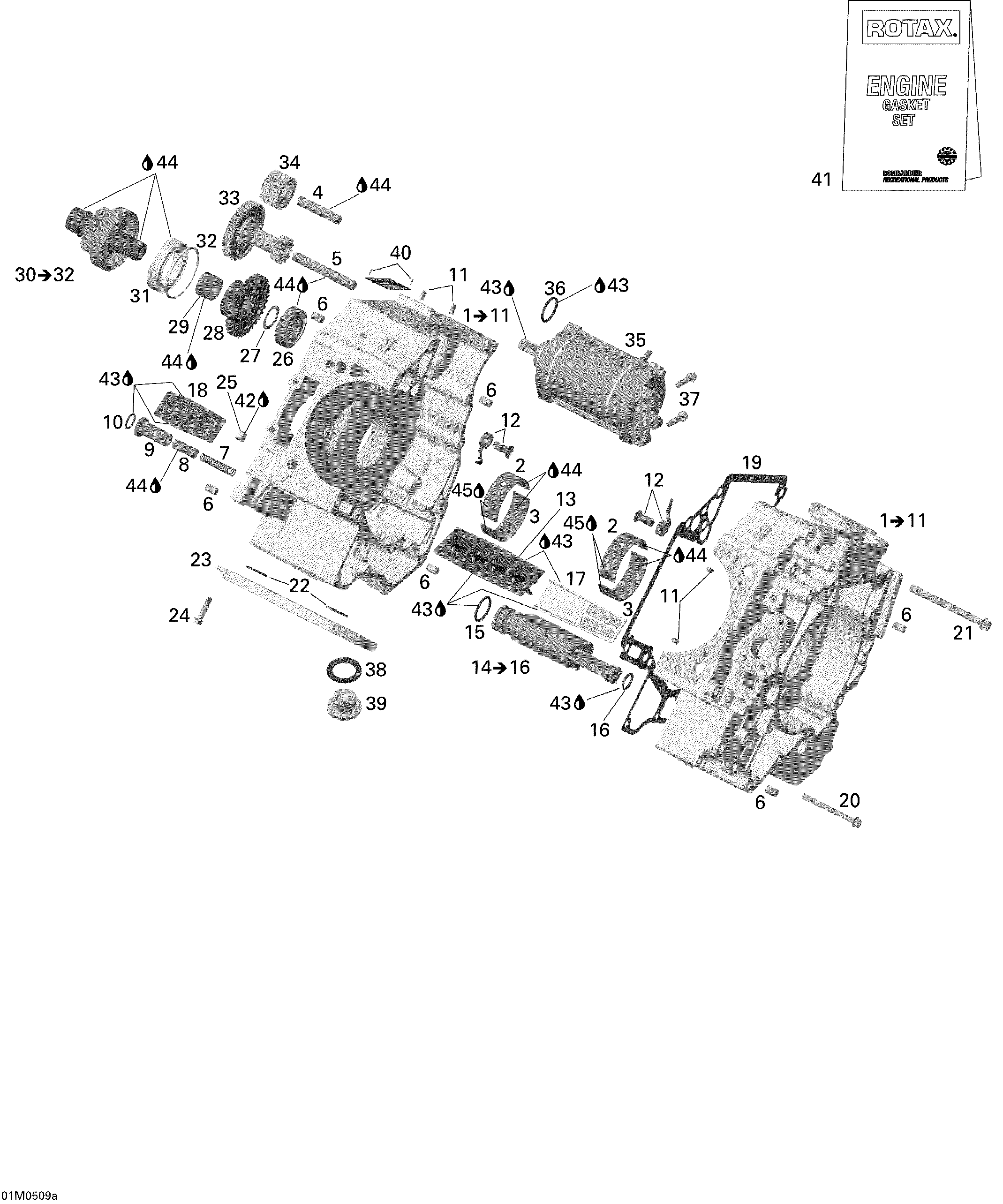

01- Crankcase для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1420888883 Crankcase Ass'Y. Includes 1 to 11Crankcase Ass'Y. Includes 1 to 11
-
2420933492 Bearing SleeveBearing Sleeve
-
3420933495 Plain BearingPlain Bearing
-
4420229301 Location PinLocation Pin
-
5420229410 PinPin
-
6420632010 Center PinCenter Pin
-
7420239445 SpringSpring
-
8420256510 Pressure Regulating PistonPressure Regulating Piston
-
9420956780 Valve SeatValve Seat
-
10420230880 O-RingO-Ring
-
11420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
12420956820 Oil Nozzle Ass'YOil Nozzle Ass'Y
-
13420924735 Valve Housins Ass'YValve Housins Ass'Y
-
14420956790 Oil Sieve Ass'Y. Includes 14 to 16Oil Sieve Ass'Y. Includes 14 to 16
-
15420931630 O-RingO-Ring
-
16293300024 O-RingO-Ring
-
17420856071 Oil SieveOil Sieve
-
18420856072 Oil SieveOil Sieve
-
19420950600 GasketGasket
-
20420440602 Hex Flanged Screw M6 X 65Hex Flanged Screw M6 X 65
-
21420440412 Hex Flanged Screw M8 X 90Hex Flanged Screw M8 X 90
-
22420430370 O-RingO-Ring
-
23420811770 CoverCover
-
24420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
25420240480 Plug Screw 1/8-27 NptPlug Screw 1/8-27 Npt
-
26420232192 Ball BearingBall Bearing
-
27420227440 Thurst WasherThurst Washer
-
28420834410 Cam Clutch Drive Gear (32 Teeth)Cam Clutch Drive Gear (32 Teeth)
-
29420232745 Needle BearingNeedle Bearing
-
30420834407 Generator Gear Ass'Y. Includes 30 to 32Generator Gear Ass'Y. Includes 30 to 32
-
31420259492 Sprag ClutchSprag Clutch
-
32420845590 Snap RingSnap Ring
-
33420834705 Double Gear (11 Teeth)Double Gear (11 Teeth)
-
34420834430 Intermediate Gear (33 Teeth)Intermediate Gear (33 Teeth)
-
35420296480 Electric Starter Ass'YElectric Starter Ass'Y
-
37420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
38420950620 Gasket Ring (Plug Screw)Gasket Ring (Plug Screw)
-
39420641090 Plug ScrewPlug Screw
-
40420249073 Grooved PinGrooved Pin
-
41420889981 Gasket Set EngineGasket Set Engine
-
42293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
43293550030 Grease, Super LubeGrease, Super Lube
-
44293600054 Engine Oil 4 Strokes, Ow40, 12 X 1 LiterEngine Oil 4 Strokes, Ow40, 12 X 1 Liter
-
45420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
