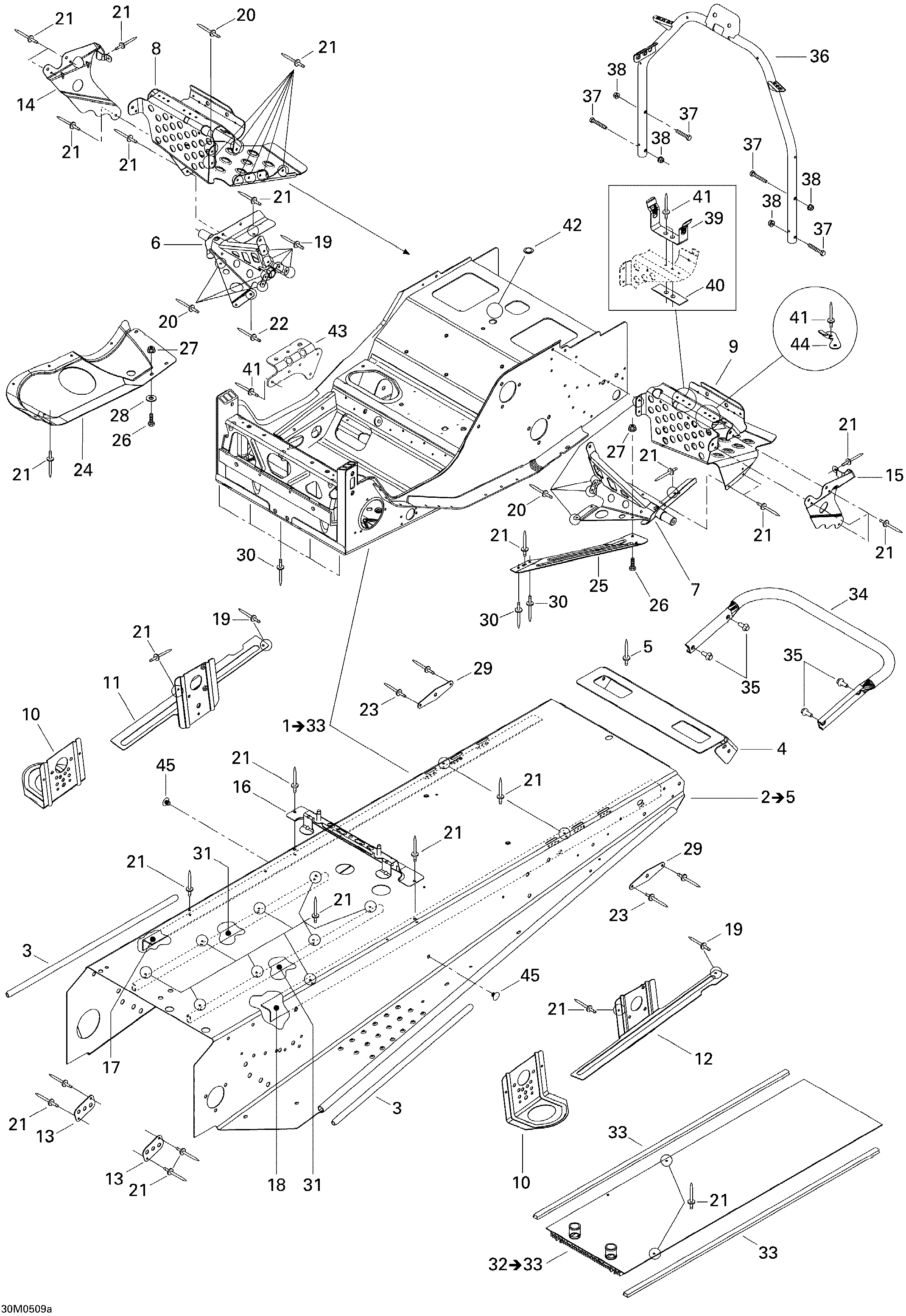

09- Frame, 2 Passenger Seat для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1415128576 Frame. Includes 1 to 33Frame. Includes 1 to 33
-
2415128615 Forming Frame. Includes 2 to 5Forming Frame. Includes 2 to 5
-
3518304746 Footrest ReinforcementFootrest Reinforcement
-
4518322734 Rear CapRear Cap
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6518320506 RH Footrest SupportRH Footrest Support
-
7518320507 LH Sootrest SupportLH Sootrest Support
-
8518323563 RH FootrestRH Footrest
-
9518323564 LH FootrestLH Footrest
-
10518321495 Front BracketFront Bracket
-
11518323051 RH Rear BracketRH Rear Bracket
-
12518323055 LH Rear BracketLH Rear Bracket
-
13518201321 Reinforcement PlateReinforcement Plate
-
14518321305 RH Footrest ReinforcementRH Footrest Reinforcement
-
15518321307 LH Footrest ReinforcementLH Footrest Reinforcement
-
16518321510 Fuel Tank BracketFuel Tank Bracket
-
17518323190 RH Frame ReinforcementRH Frame Reinforcement
-
18518323191 LH Frame ReinforcementLH Frame Reinforcement
-
19390909200 Rivet AvexRivet Avex
-
20390909100 Rivet AvexRivet Avex
-
21390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
23390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
24518322636 RH Bottom Pan PlateRH Bottom Pan Plate
-
25518322119 LH Reinforcement PlateLH Reinforcement Plate
-
26207152044 Hex Screw M5 X 20Hex Screw M5 X 20
-
27233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
28391301700 Flat WasherFlat Washer
-
29518316767 Rear ReinforcementRear Reinforcement
-
30390910300 Rivet HenrobRivet Henrob
-
31518321543 Frame ProtectorFrame Protector
-
32518322905 Rear RadiatorRear Radiator
-
33518321656 Radiator ProtectorRadiator Protector
-
34517272510 Rear Bumper. Includes 32 to 33Rear Bumper. Includes 32 to 33
-
35207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
36518322755 Handle SupportHandle Support
-
37207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
38233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
39518202100 Belt Guard BracketBelt Guard Bracket
-
40518207500 ReinforcementReinforcement
-
41390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
42414859400 CapCap
-
43518322635 Muffler SupportMuffler Support
-
44518322031 Tool Kit BracketTool Kit Bracket
-
45518321954 Fastener PanelFastener Panel
