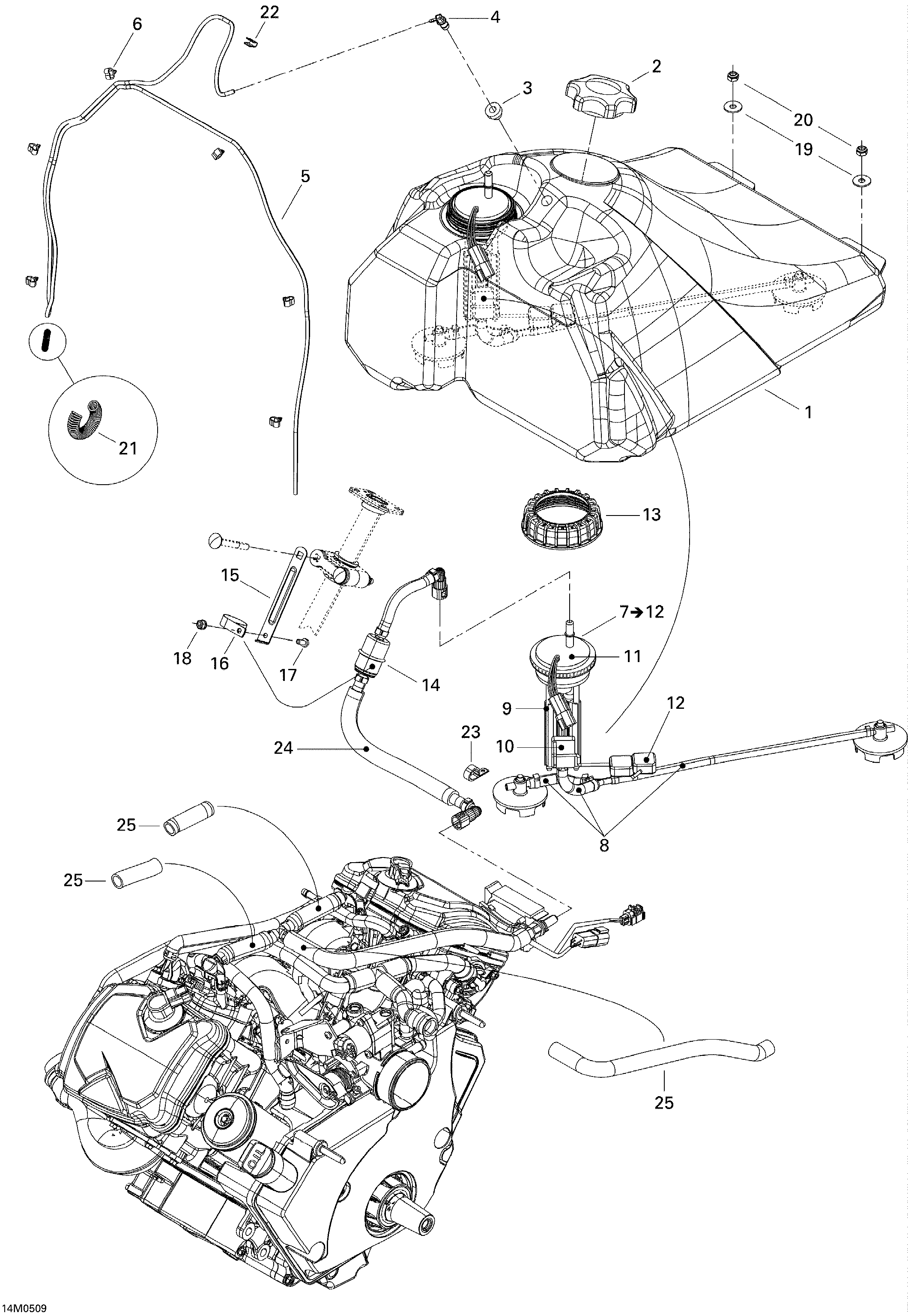

02- Fuel System для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1513033005 Fuel TankFuel Tank
-
2513033020 Fuel Tank Cap. Sport / Sport GTFuel Tank Cap. Sport / Sport GT
-
2513033025 Fuel Tank Cap. SE / SE GTFuel Tank Cap. SE / SE GT
-
3513032908 GrommetGrommet
-
4414814100 Male ConnectorMale Connector
-
5415080100 Primer Line. Sport / Sport GTPrimer Line. Sport / Sport GT
-
5415080100 Primer Line. SE / SE GTPrimer Line. SE / SE GT
-
6513032923 Tube ClampTube Clamp
-
7513033101 Fuel Pump Module. Includes 7 to 12Fuel Pump Module. Includes 7 to 12
-
8861302300 Fuel Hose KitFuel Hose Kit
-
9861302000 Fuel Pump KitFuel Pump Kit
-
10861301800 Resistor Card KitResistor Card Kit
-
11861302100 Regulator KitRegulator Kit
-
12861301900 Float Lever KitFloat Lever Kit
-
13513033040 Nut (Fuel Pump Module)Nut (Fuel Pump Module)
-
14513033078 Fuel Filter Ass'YFuel Filter Ass'Y
-
15513033057 Filter SupportFilter Support
-
16513033047 Open ClampOpen Clamp
-
17207161444 Hex Screw M6 X 14Hex Screw M6 X 14
-
18233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
19234082410 Flat Washer M8Flat Washer M8
-
20232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
21414818200 SpringSpring
-
22414479100 Clip. Sport / Sport GTClip. Sport / Sport GT
-
23513033082 Open ClampOpen Clamp
-
24513033083 Tubing 16 mmTubing 16 mm
-
25415080000 Tubing 16 mmTubing 16 mm
