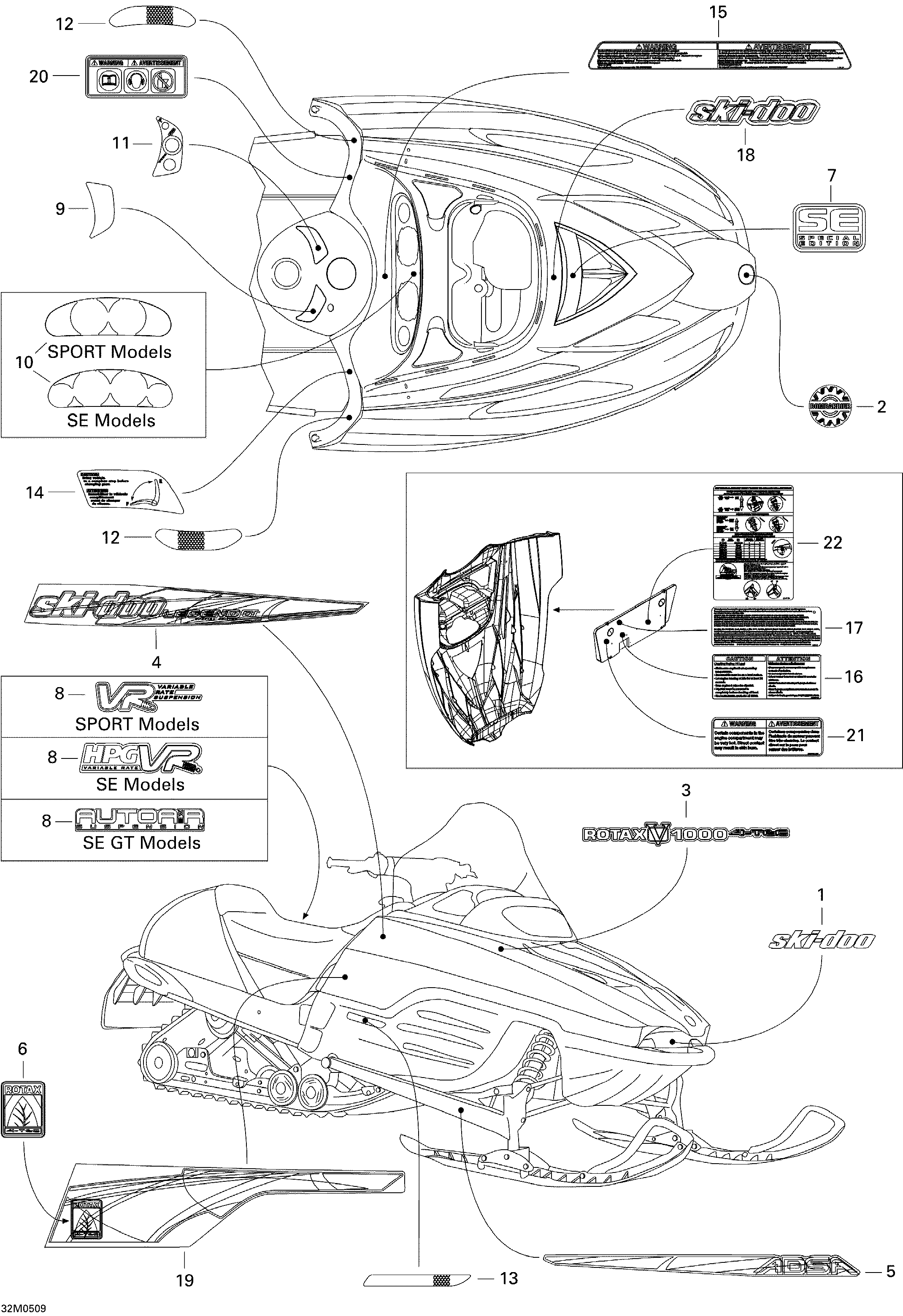

09- Decals для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1516000338 Decal - «Ski-Doo»Decal - «Ski-Doo»
-
2516002487 Bombardier LogoBombardier Logo
-
3516002286 Rotax V1000 DecalRotax V1000 Decal
-
4516002287 RH Side Decal. SERH Side Decal. SE
-
4516002288 LH Side Decal. SELH Side Decal. SE
-
4516002294 RH Side Decal. SE GTRH Side Decal. SE GT
-
4516002295 LH Side Decal. SE GTLH Side Decal. SE GT
-
4516002597 RH Side Decal. SportRH Side Decal. Sport
-
4516002598 LH Side Decal. SportLH Side Decal. Sport
-
4516002599 RH Side Decal. Sport GTRH Side Decal. Sport GT
-
4516002600 LH Side Decal. Sport GTLH Side Decal. Sport GT
-
5516002289 RH Arm DecalRH Arm Decal
-
5516002290 LH Arm DecalLH Arm Decal
-
6516002164 4-tec Decal (black)4-tec Decal (black)
-
7516002331 Special Edition Decal. SE / SE GTSpecial Edition Decal. SE / SE GT
-
8516001683 Suspension Decal. SESuspension Decal. SE
-
8516001685 Suspension Decal. SE / SE GTSuspension Decal. SE / SE GT
-
8516001708 Decal - Suspension Vr. Sport / Sport GTDecal - Suspension Vr. Sport / Sport GT
-
9516001428 DecalDecal
-
10516001803 Dash Decal. Sport / Sport GTDash Decal. Sport / Sport GT
-
10516001804 Dash Decal. SE / SE GTDash Decal. SE / SE GT
-
11516001480 Dess DecalDess Decal
-
12516000224 Decal - Reflector DecalDecal - Reflector Decal
-
12516000225 Decal - Reflector Decal (Europe). EuropeDecal - Reflector Decal (Europe). Europe
-
13415064400 Decal - RH ReflectorDecal - RH Reflector
-
13415064401 Decal - LH ReflectorDecal - LH Reflector
-
14516000458 Decal - ReverseDecal - Reverse
-
15516002074 Label Security Starter ZxLabel Security Starter Zx
-
16516001791 Decal - Checking Engine Oil LevelDecal - Checking Engine Oil Level
-
17516002657 Pending LabelPending Label
-
18516002291 Ski-doo Front DecalSki-doo Front Decal
-
19516002292 RH Lower Rear DecalRH Lower Rear Decal
-
19516002293 LH Lower Rear DecalLH Lower Rear Decal
-
20516001296 Decal - Pictogram (Europe). EuropeDecal - Pictogram (Europe). Europe
-
21516001297 Security Label (Hot Parts)Security Label (Hot Parts)
-
22516001640 Decal - Suspension Adjustment DecalDecal - Suspension Adjustment Decal
