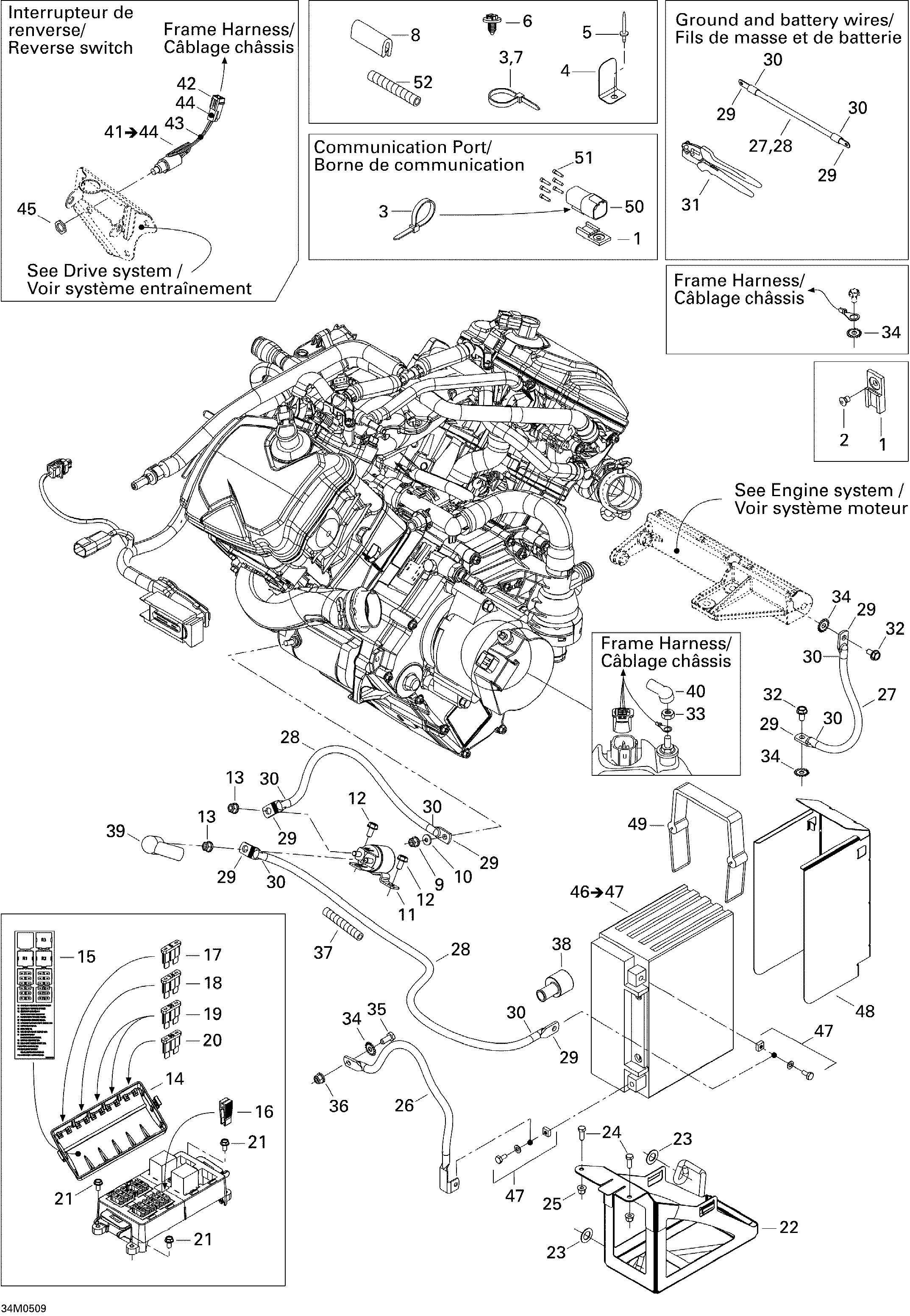

10- Battery And Starter для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1515175917 ClipClip
-
2293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
3293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4518322530 Tab LockTab Lock
-
5390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
6293730018 Mount DartMount Dart
-
7414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
7293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
7293750009 Tie Rap 160 mmTie Rap 160 mm
-
8271000110 Protector TrimProtector Trim
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10234061410 Flat Washer 6 mmFlat Washer 6 mm
-
11515176011 Starter RelayStarter Relay
-
12210261280 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14515176066 CoverCover
-
15516001613 Fuse DecalFuse Decal
-
16515175811 Fuse ToolFuse Tool
-
17278000344 Fuse (5 Amperes)Fuse (5 Amperes)
-
18278000704 Fuse (7.5 Amperes)Fuse (7.5 Amperes)
-
19409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
20410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
21210251680 Hex Forming Screw M5 X 16Hex Forming Screw M5 X 16
-
22515175954 Battery SupportBattery Support
-
23503175800 WasherWasher
-
24207151444 Hex Screw M5 X 14Hex Screw M5 X 14
-
25233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
26515175962 Ground WireGround Wire
-
27278001680 Ground Cable Battery (no 6) (meter)Ground Cable Battery (no 6) (meter)
-
28278001690 Red Cable Battery (No 6) (Meter)Red Cable Battery (No 6) (Meter)
-
29278001682 Flat Terminal (Small Hole)Flat Terminal (Small Hole)
-
29278001683 Terminal 45° (Small Hole)Terminal 45° (Small Hole)
-
29278001684 Terminal 90° (Small Hole)Terminal 90° (Small Hole)
-
29278001685 Flat Terminal (Big Hole)Flat Terminal (Big Hole)
-
29278001686 Terminal 45° (Big Hole)Terminal 45° (Big Hole)
-
29278001687 Terminal 90° (Big Hole)Terminal 90° (Big Hole)
-
29278001688 Flat TerminalFlat Terminal
-
29278001776 Terminal 30° (2 Holes)Terminal 30° (2 Holes)
-
30278001692 Heat ShrinkHeat Shrink
-
31529035730 Crimp PlierCrimp Plier
-
32210261280 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
34250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
35207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
36233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37409901700 TubingTubing
-
38515175919 Protector CapProtector Cap
-
39278001771 Protector CapProtector Cap
-
40710000526 Protector CapProtector Cap
-
41515175967 Switch Ass'Y. Includes 41 to 44Switch Ass'Y. Includes 41 to 44
-
42515175232 Male TerminalMale Terminal
-
43293740005 Vinyl Tape 3/4''Vinyl Tape 3/4''
-
44515175654 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
45250100012 Brass NutBrass Nut
-
46410922962 Battery (12 Volts, 21 Amperes). Includes 46 to 47Battery (12 Volts, 21 Amperes). Includes 46 to 47
-
47295500849 Battery Fastener KitBattery Fastener Kit
-
48515175616 DeflectorDeflector
-
49515175955 Battery StrapBattery Strap
-
50515175668 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
51293000052 Sealing CapSealing Cap
-
52515175442 Tubing (6 mm). Sport ModelsTubing (6 mm). Sport Models
