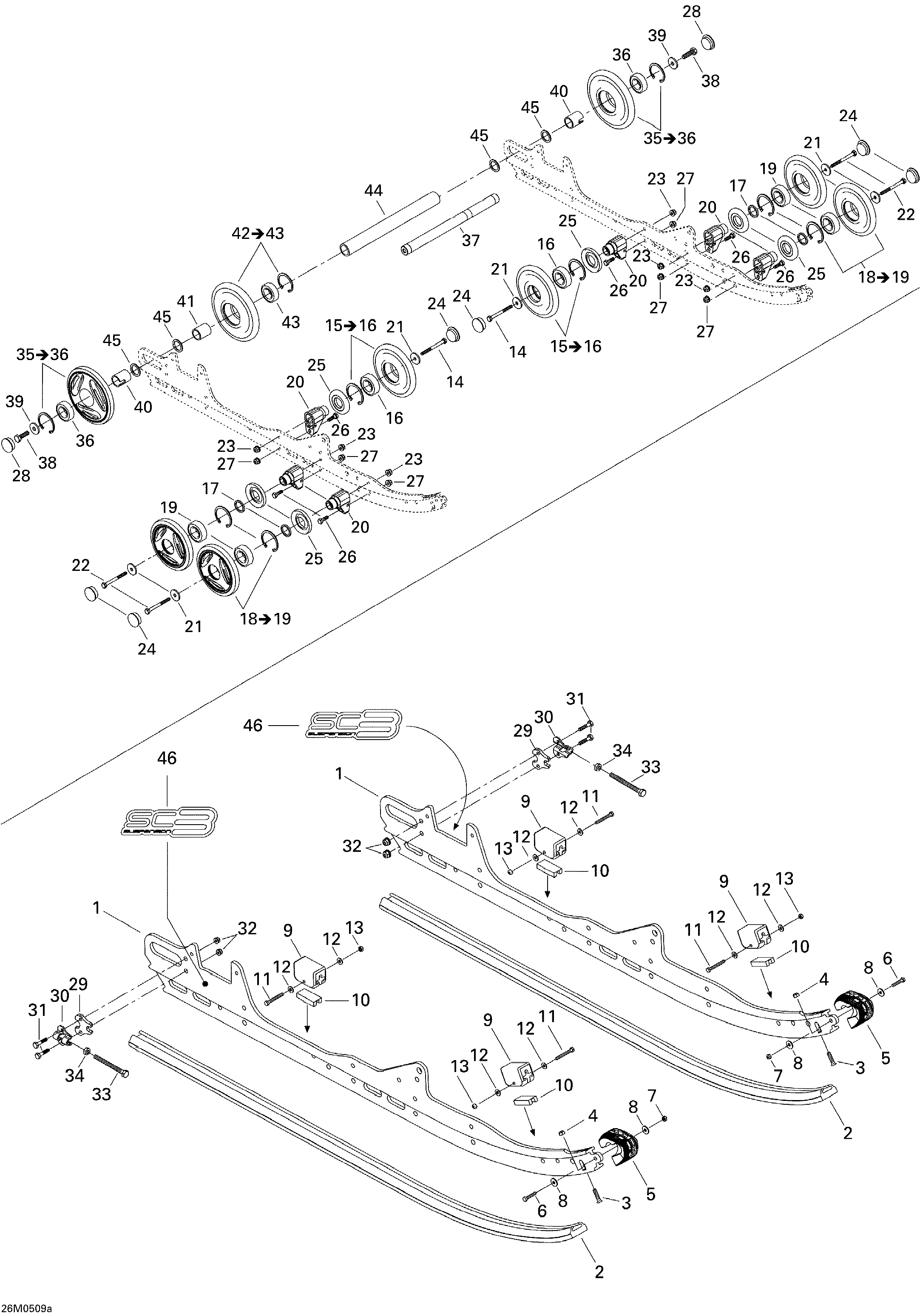

08- Rear suspension 1 для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1503190381 Runner (121'')Runner (121'')
-
2503190227 Runner ShoeRunner Shoe
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9570063000 Rubber StopperRubber Stopper
-
10572084800 Reinforcement StopperReinforcement Stopper
-
11207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
12391301700 Flat WasherFlat Washer
-
13232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
14207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
15503191029 Wheel 135. Includes 15 to 16Wheel 135. Includes 15 to 16
-
16503190795 Ball BearingBall Bearing
-
17503173700 WasherWasher
-
18503190214 Wheel 135 Ass'Y (Full Moon). Includes 18 to 19Wheel 135 Ass'Y (Full Moon). Includes 18 to 19
-
19503189567 Ball Bearing 6205Ball Bearing 6205
-
20503190389 SupportSupport
-
21503183100 WasherWasher
-
22207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
23233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
24570063600 Wheel CapWheel Cap
-
25572089000 Labyrinth SealLabyrinth Seal
-
26207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
27233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
28570063600 Wheel CapWheel Cap
-
29503190379 Tensioner SpacerTensioner Spacer
-
30503190380 TensionerTensioner
-
31207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
32233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
33230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
34233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
35503190801 Wheel 180 (full Moon). Includes 35 to 36Wheel 180 (full Moon). Includes 35 to 36
-
36503190795 Ball BearingBall Bearing
-
37503160700 Rear AxleRear Axle
-
38250000019 Hex Screw With NylonHex Screw With Nylon
-
39503183300 WasherWasher
-
40503189809 Outer SpacerOuter Spacer
-
41503182900 Inner SpacerInner Spacer
-
42503190232 Wheel 180 Ass'Y. Includes 42 to 43Wheel 180 Ass'Y. Includes 42 to 43
-
43503189567 Ball Bearing 6205Ball Bearing 6205
-
44503183000 Central SpacerCentral Spacer
-
45503180400 WasherWasher
-
46516002658 Suspension DecalSuspension Decal
