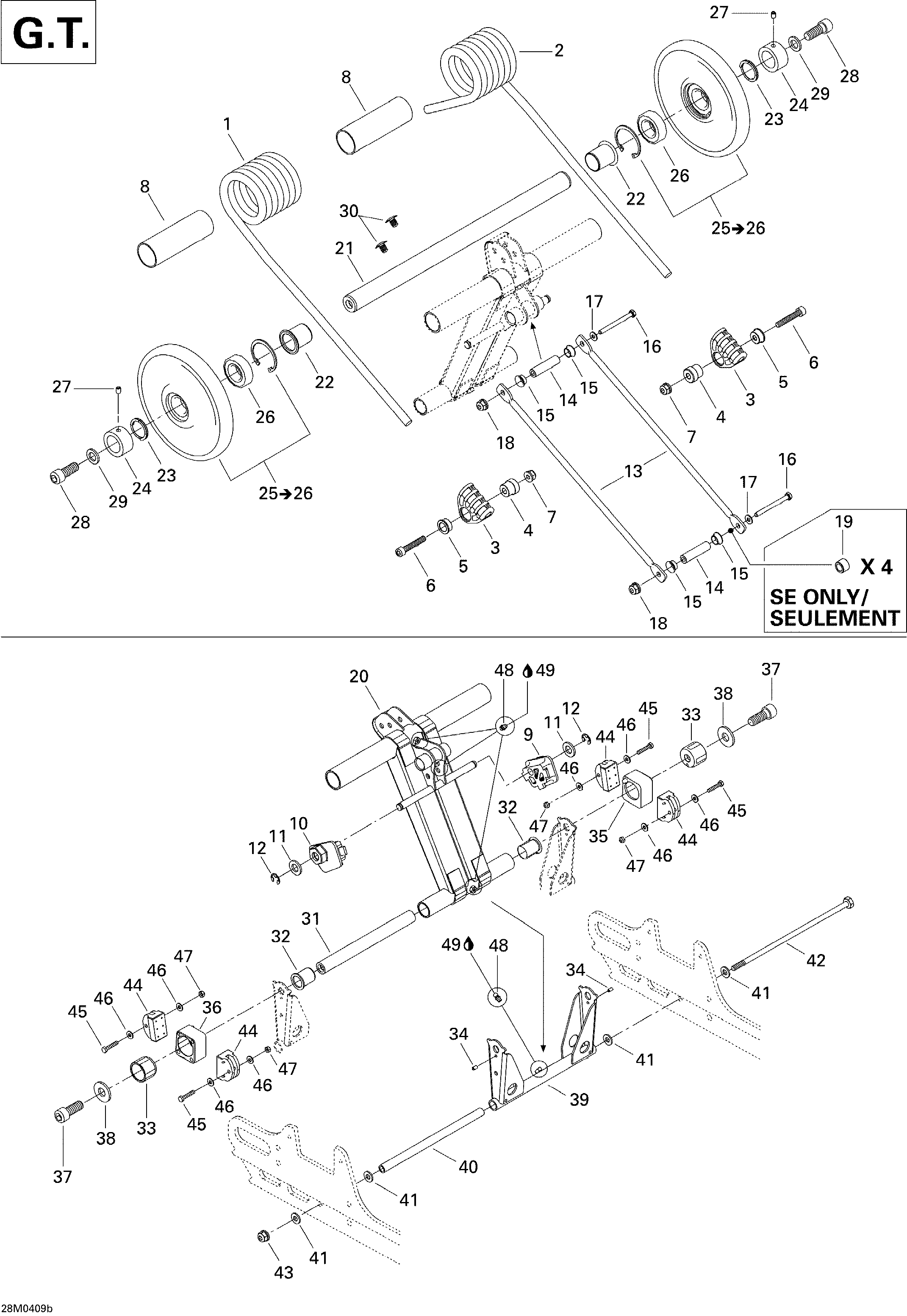

08- Rear Arm GT для BRP Ski-Doo Legend V-1000 - 2005
-
№АртикулНазвание
-
1503189898 RH Spring. SportRH Spring. Sport
-
1503189992 RH Spring (Europe). SE EuropeRH Spring (Europe). SE Europe
-
1503190492 RH Spring (Square). SERH Spring (Square). SE
-
2503189900 LH Spring. SportLH Spring. Sport
-
2503189994 LH Spring (Europe). SE EuropeLH Spring (Europe). SE Europe
-
2503190494 LH Spring (Square). SELH Spring (Square). SE
-
3503189657 Spring SupportSpring Support
-
4503188934 Spring Guide AxleSpring Guide Axle
-
5503188929 Cushion RetainerCushion Retainer
-
6205084544 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
7233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
8503189105 Plastic BushingPlastic Bushing
-
9503190023 LH Cam AdjusterLH Cam Adjuster
-
10503190022 RH Cam AdjusterRH Cam Adjuster
-
11234021410 Flat Washer 12 mmFlat Washer 12 mm
-
12293370013 E-CirclipE-Circlip
-
13503190111 Throttle RodThrottle Rod
-
14503189815 Axle Rod. SportAxle Rod. Sport
-
14503190113 Axle Bar. SEAxle Bar. SE
-
15506150200 Bushing SwivelBushing Swivel
-
16207089044 Hex Screw M8 X 90. SportHex Screw M8 X 90. Sport
-
16230083044 Hex Screw M8 X 130. SEHex Screw M8 X 130. SE
-
17224081201 Flat WasherFlat Washer
-
18233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
19503190114 Spacer. SESpacer. SE
-
20503190110 Rear ArmRear Arm
-
21503189412 Upper AxleUpper Axle
-
22503189288 CushionCushion
-
23503189146 Axle SpringAxle Spring
-
24503189147 Retainer RingRetainer Ring
-
25503190269 Wheel 165 Ass'YWheel 165 Ass'Y
-
26503189567 Ball Bearing 6205Ball Bearing 6205
-
27206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
28205523544 Socket Head Screw M12 X 35 (scotch Grip)Socket Head Screw M12 X 35 (scotch Grip)
-
29503189276 WasherWasher
-
30414644300 DartDart
-
31503189413 Rear Lower AxleRear Lower Axle
-
32503189286 CushionCushion
-
33503189488 Block GuideBlock Guide
-
34250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
35503189152 LH BlockLH Block
-
36503189170 RH BlockRH Block
-
37205523544 Socket Head Screw M12 X 35 (scotch Grip)Socket Head Screw M12 X 35 (scotch Grip)
-
38503189276 WasherWasher
-
39503189819 Pivot ArmPivot Arm
-
40503189156 Pivot Arm AxlePivot Arm Axle
-
41503189157 WasherWasher
-
42732601198 Long Bolt M8Long Bolt M8
-
43233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
44503189608 Rubber StopperRubber Stopper
-
45207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
46250200016 WasherWasher
-
47232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
48408200700 Grease FittingGrease Fitting
-
49219700417 Synthetic Grease, 400gSynthetic Grease, 400g
