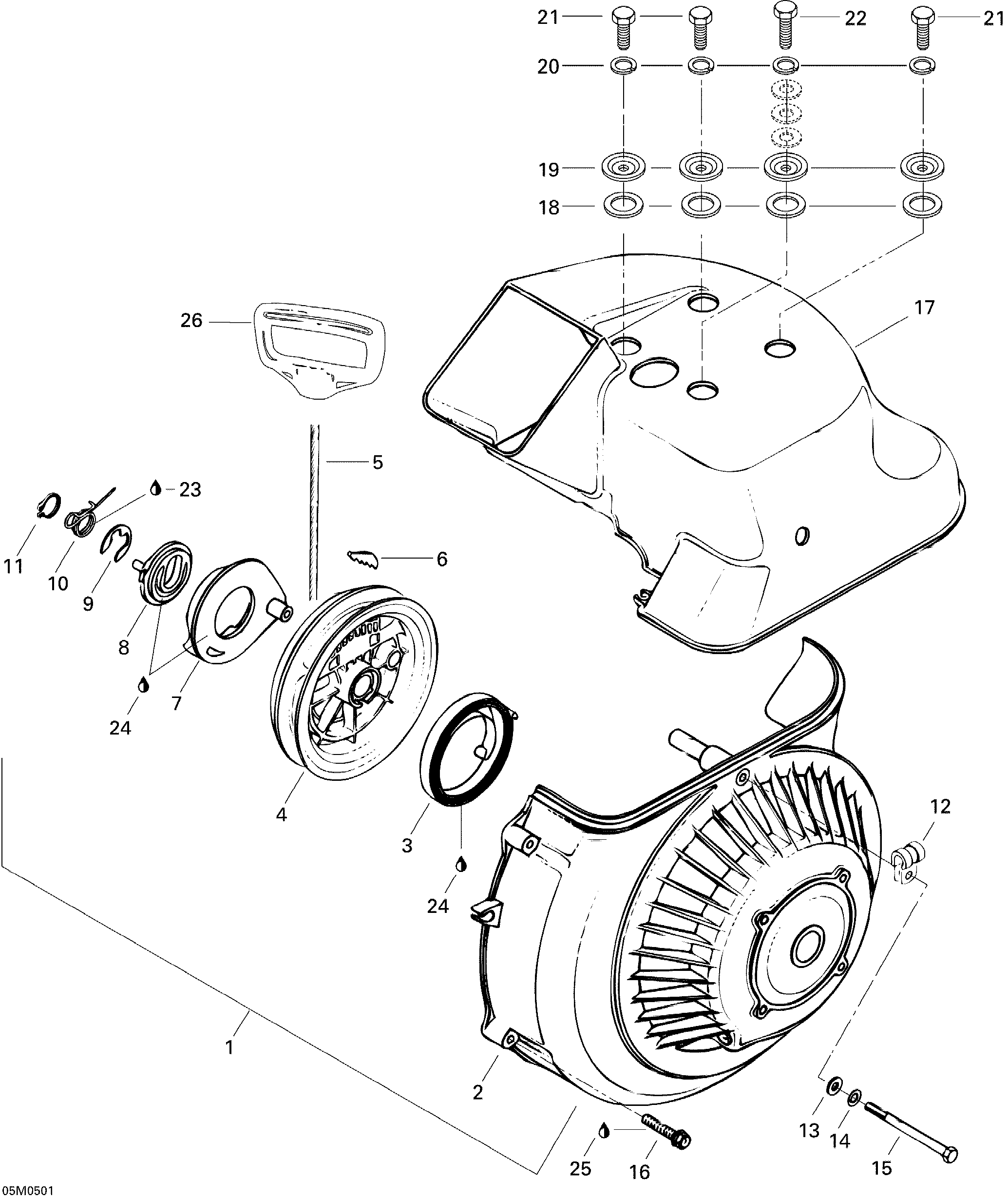

01- Cooling System для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1420889825 Rewind StarterRewind Starter
-
2420810287 Fan CowlFan Cowl
-
3420939115 Rewind SpringRewind Spring
-
4420852283 Rope SheaveRope Sheave
-
5412500200 Starter RopeStarter Rope
-
6420852070 Key ClampKey Clamp
-
7420852296 PawlPawl
-
8420852302 Pawl LockPawl Lock
-
9420845300 CirclipCirclip
-
10420938986 Pawl SpringPawl Spring
-
11420945770 Lock RingLock Ring
-
12420851240 Gear ClampGear Clamp
-
13224061121 Flat WasherFlat Washer
-
14420945751 Lock Washer 6 mmLock Washer 6 mm
-
15207067544 Hex Screw M6x 75Hex Screw M6x 75
-
16420640411 Tapping Screw M6 X 35Tapping Screw M6 X 35
-
17420910020 Cylinder CowlCylinder Cowl
-
18420960860 Rubber WasherRubber Washer
-
19420827140 Cowl CoverCowl Cover
-
20420945752 Lock Washer 8 mmLock Washer 8 mm
-
21207181644 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
22207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
23420297433 Molykote G-n, 50 GMolykote G-n, 50 G
-
24420899763 Molykote Pg 54, 10 GMolykote Pg 54, 10 G
-
25293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
26572084400 Starter GripStarter Grip
