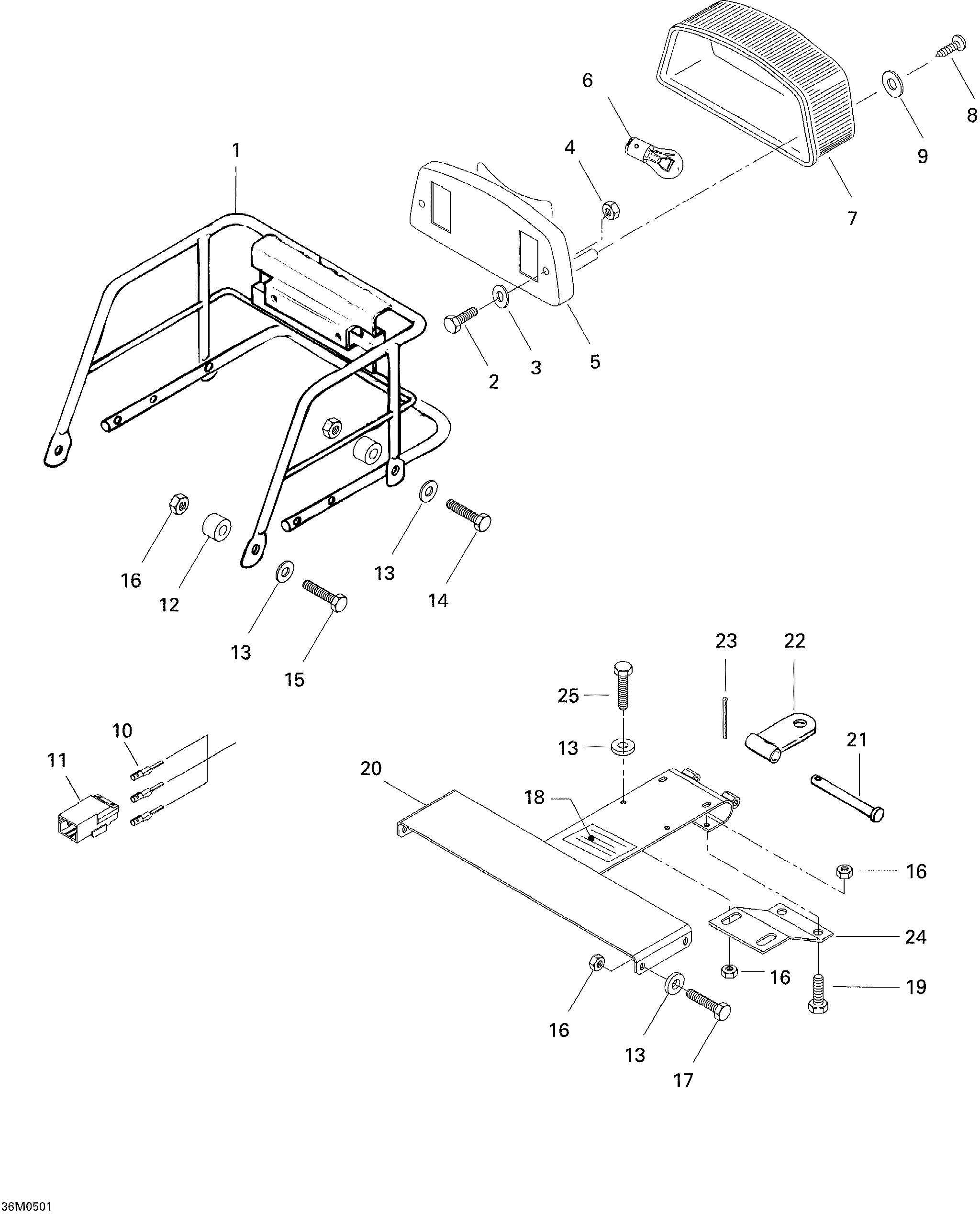

09- Luggage Rack для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1517191500 Paint RackPaint Rack
-
2207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
3517297900 Flat WasherFlat Washer
-
4233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
5515175397 Lamp HousingLamp Housing
-
6410504100 Tail Lamp BulbTail Lamp Bulb
-
7414513700 LensLens
-
8209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
9414516400 WasherWasher
-
10515175232 Male TerminalMale Terminal
-
11515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
12517185600 SpacerSpacer
-
13224061121 Flat WasherFlat Washer
-
14207066044 Hex Screw M6 X 60Hex Screw M6 X 60
-
15207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
16233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
17207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
18516001243 Security Label (Hitch)Security Label (Hitch)
-
19207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
20517200600 Paint HitchPaint Hitch
-
21505001700 Clevis PinClevis Pin
-
22517008700 Welded Hitch PlateWelded Hitch Plate
-
23371800200 Cotter PinCotter Pin
-
24517217800 Paint ReinforcementPaint Reinforcement
-
25207162544 Hex Screw M6 X 25Hex Screw M6 X 25
