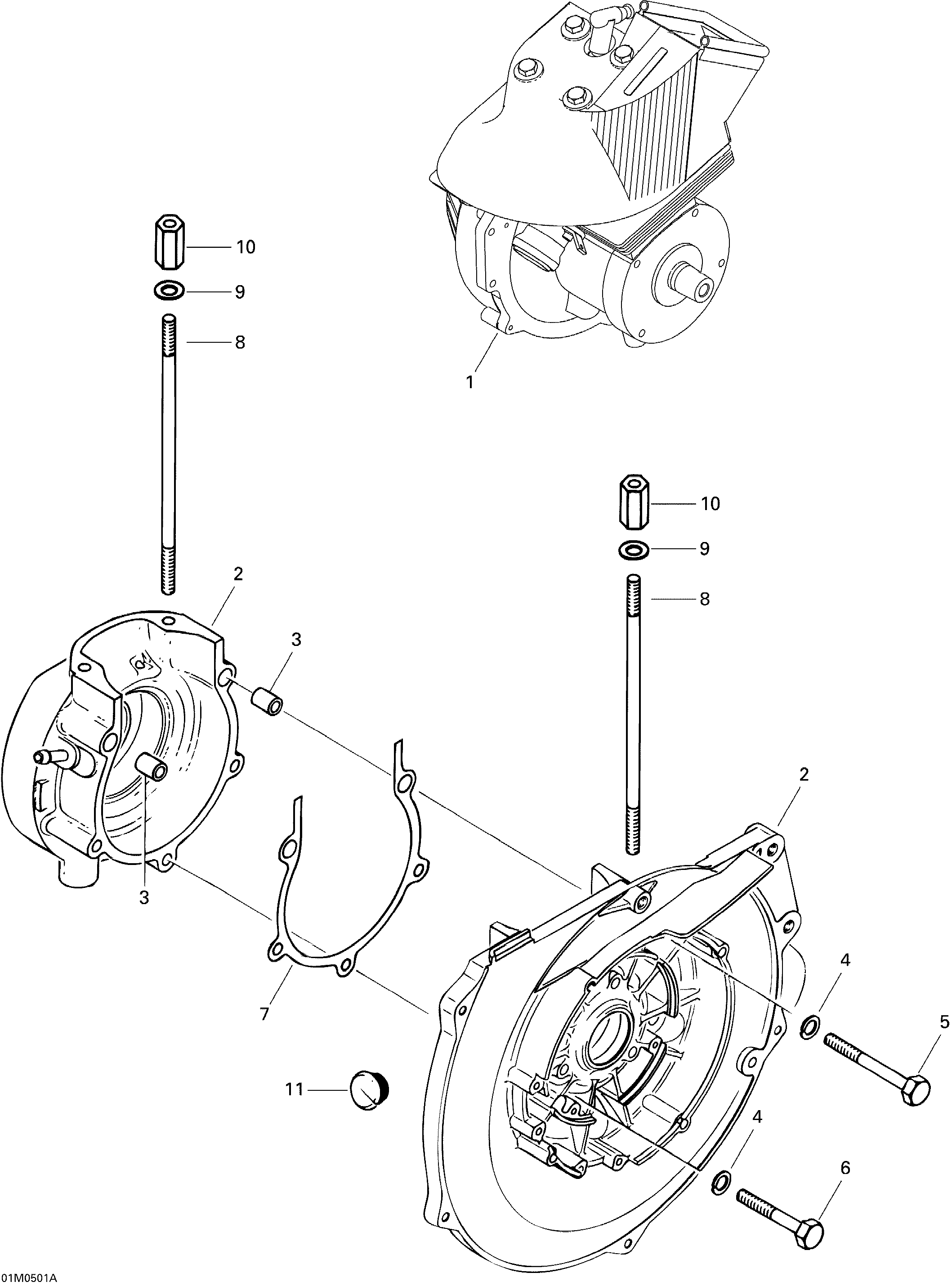

01- Crankcase для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1400206003 Engine 277 Ass'yEngine 277 Ass'y
-
2420886709 Crankcase Ass'yCrankcase Ass'y
-
3420229150 DowelDowel
-
4420945752 Lock Washer 8 mmLock Washer 8 mm
-
5207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
6207085596 Hex Screw M8 X 55Hex Screw M8 X 55
-
7420850060 Gasket CrankcaseGasket Crankcase
-
8420840620 Stud M8 X 175Stud M8 X 175
-
9420250311 Washer 8.4 mmWasher 8.4 mm
-
10420842010 Distance Nut M8 X 27,5Distance Nut M8 X 27,5
-
11420860962 Cable GrommetCable Grommet
