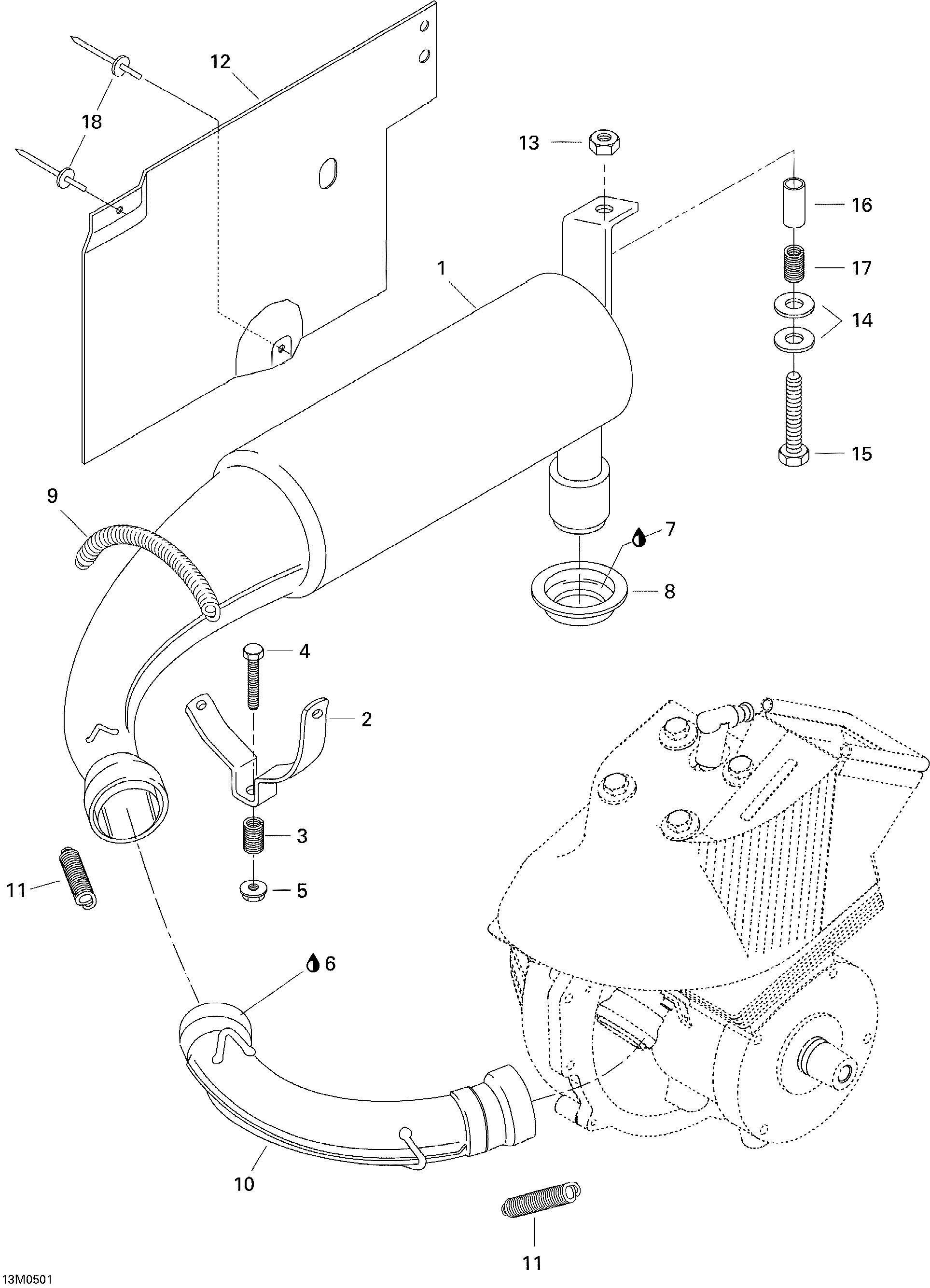

01- Exhaust System для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1514053339 Paint MufflerPaint Muffler
-
2514017900 Muffler SupportMuffler Support
-
3414913700 SpringSpring
-
4207064544 Hex Screw M6 X 45Hex Screw M6 X 45
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
7293550030 GreaseGrease
-
8570141300 Exhaust GrommetExhaust Grommet
-
9517268300 SpringSpring
-
10514050300 Welded Exhaust ElbowWelded Exhaust Elbow
-
11517182100 SpringSpring
-
12517299300 Heat ShieldHeat Shield
-
13232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
14234082410 Flat Washer M8Flat Washer M8
-
15207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
16514035800 GuideGuide
-
17414913700 SpringSpring
-
18293150102 Rivet 3/16Rivet 3/16
