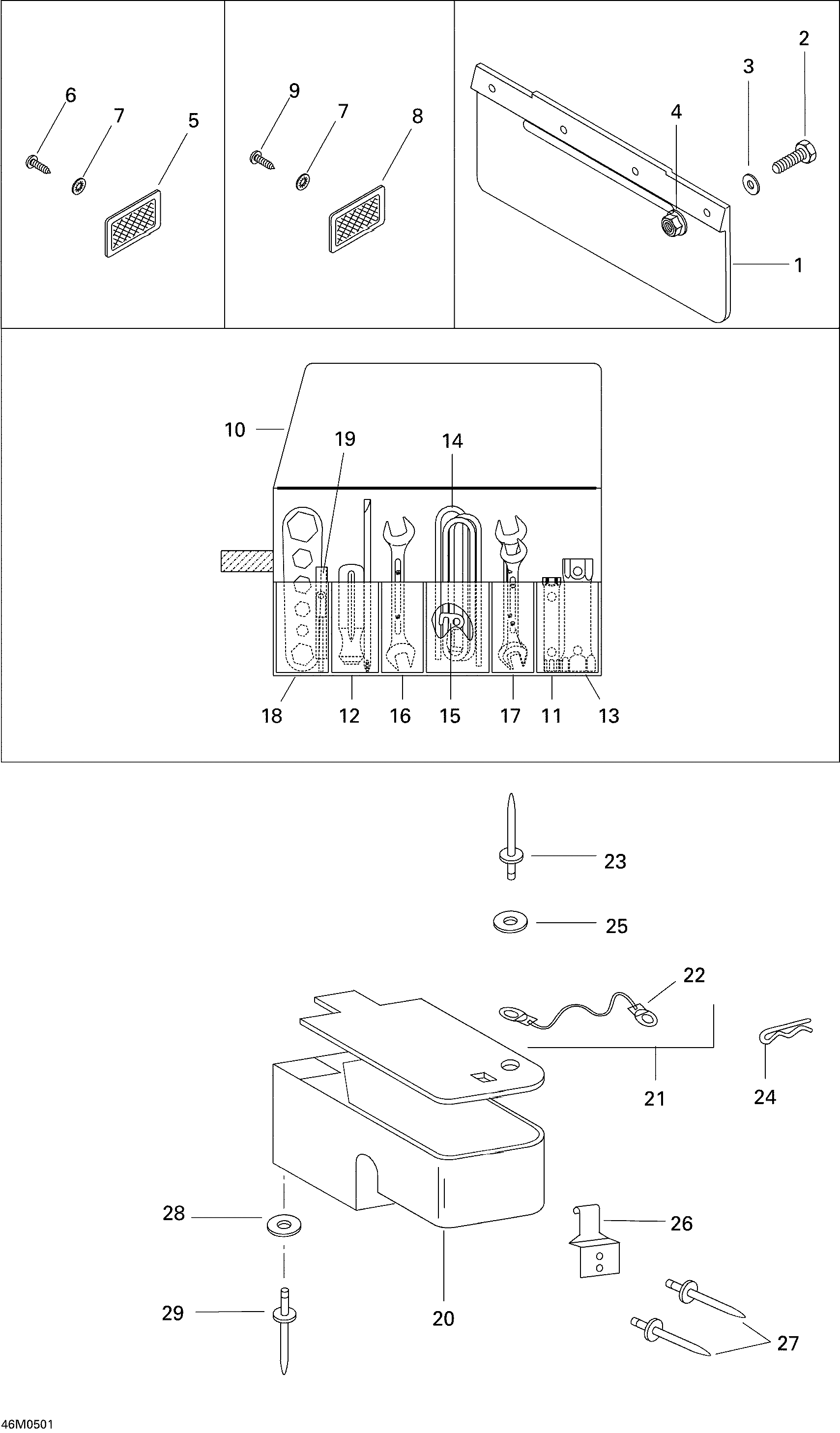

09- Utilities для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1572013800 Snow GuardSnow Guard
-
2207152044 Hex Screw M5 X 20Hex Screw M5 X 20
-
3517124300 WasherWasher
-
4233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
5414510200 Reflector (Amber)Reflector (Amber)
-
6208651041 Phillips Screw M5 X 10Phillips Screw M5 X 10
-
7234451418 Washer M5Washer M5
-
8414510100 Reflector (Red)Reflector (Red)
-
9208650841 Phillips Head Screw M5 X 8Phillips Head Screw M5 X 8
-
10529034300 Tool KitTool Kit
-
11529014800 Socket WrenchSocket Wrench
-
12529019200 Driver ScrewDriver Screw
-
13529014900 Socket WrenchSocket Wrench
-
14412500200 Starter RopeStarter Rope
-
15529024400 Rope AdaptorRope Adaptor
-
16529017300 Fork WrenchFork Wrench
-
17529000003 Wrench Fork 15/17 mmWrench Fork 15/17 mm
-
18529014700 Multi-WrenchMulti-Wrench
-
19529034200 Belt ToolBelt Tool
-
20414624900 Tool BoxTool Box
-
22561502800 Terminal RingTerminal Ring
-
23390405100 Pop Rivet 5/32''Pop Rivet 5/32''
-
24414575600 Hair PinHair Pin
-
25391301000 WasherWasher
-
26517168500 LatchLatch
-
27390401700 Pop Rivet 5/32''Pop Rivet 5/32''
-
28517124300 WasherWasher
-
29293150108 Pop Rivet 3/16''Pop Rivet 3/16''
