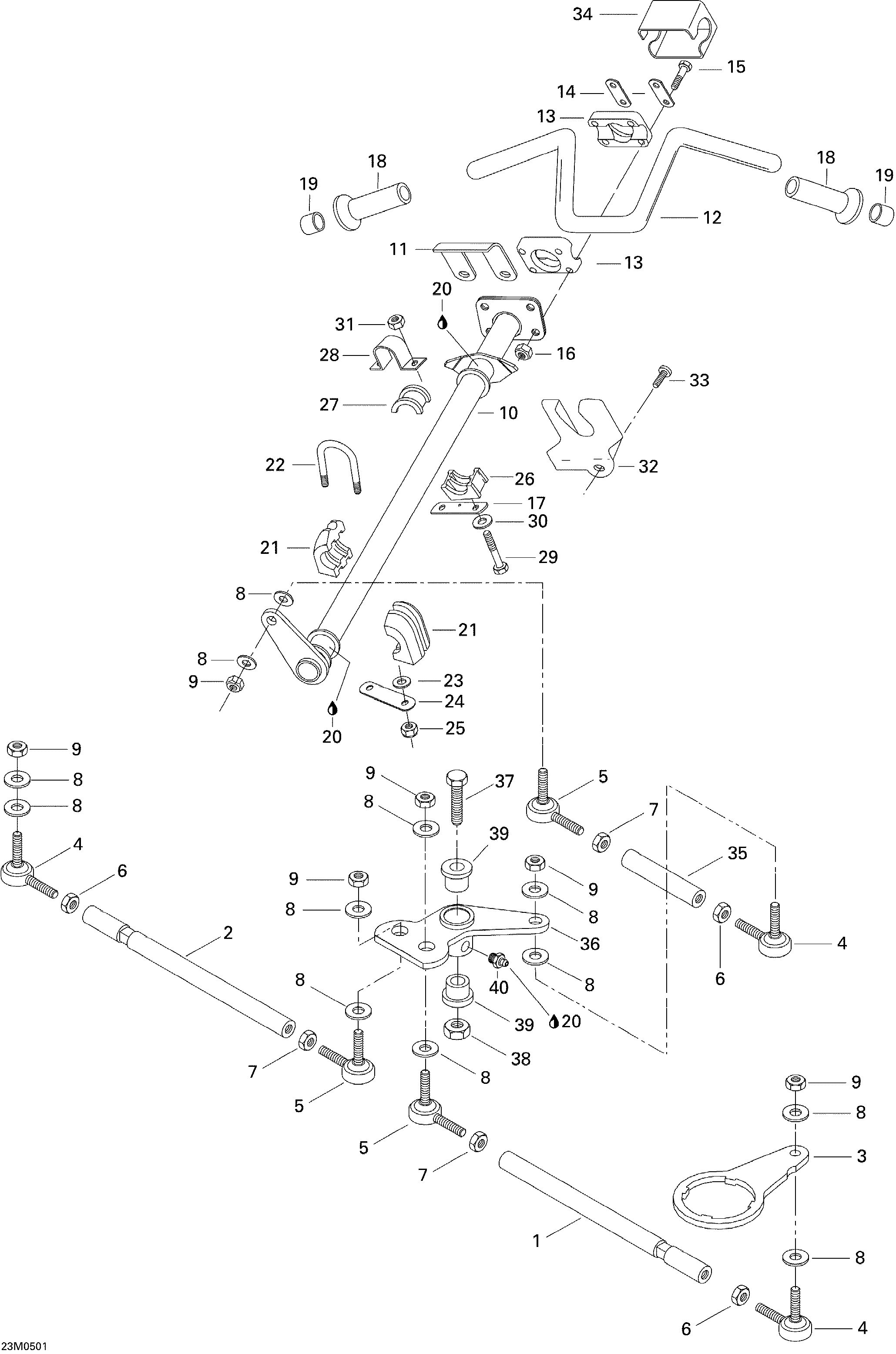

07- Steering System для BRP Ski-Doo Tundra R - 2005
-
№АртикулНазвание
-
1506113300 Tie RodTie Rod
-
2506113400 Tie RodTie Rod
-
3506148900 Steering ArmSteering Arm
-
4506151492 RH Ball JointRH Ball Joint
-
5506151495 LH Ball JointLH Ball Joint
-
6732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
7250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
8503175800 WasherWasher
-
9232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10506149700 Steering Main Tube PaintSteering Main Tube Paint
-
11517224200 Retainer SupportRetainer Support
-
12506151812 Handle Bar PaintHandle Bar Paint
-
13277000142 Steering ClampSteering Clamp
-
14506151196 ReinforcementReinforcement
-
15207085544 Hex Screw M8 X 55Hex Screw M8 X 55
-
16232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
17506149500 Paint PlatePaint Plate
-
18572100500 Handle GripHandle Grip
-
19572081900 Handlebar EndHandlebar End
-
20219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
21572067100 Half-bushingHalf-bushing
-
22506060600 U-clampU-clamp
-
23234081410 Flat Washer 8 mmFlat Washer 8 mm
-
24517134700 Lock TabLock Tab
-
25232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
26572064400 BushingBushing
-
27572064500 BushingBushing
-
28517126200 Retainer SupportRetainer Support
-
29207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
30234081410 Flat Washer 8 mmFlat Washer 8 mm
-
31232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
32517262000 Paint PlatePaint Plate
-
33364901600 Phillips Screw 8x1/2''Phillips Screw 8x1/2''
-
34705000371 Steering CoverSteering Cover
-
35506149800 Tie RodTie Rod
-
36506118000 Welded Idler ArmWelded Idler Arm
-
37207006544 Hex Screw M10 X 65Hex Screw M10 X 65
-
38233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
39414530000 CushionCushion
-
40408200700 Grease FittingGrease Fitting
